Samsung Electronics 59

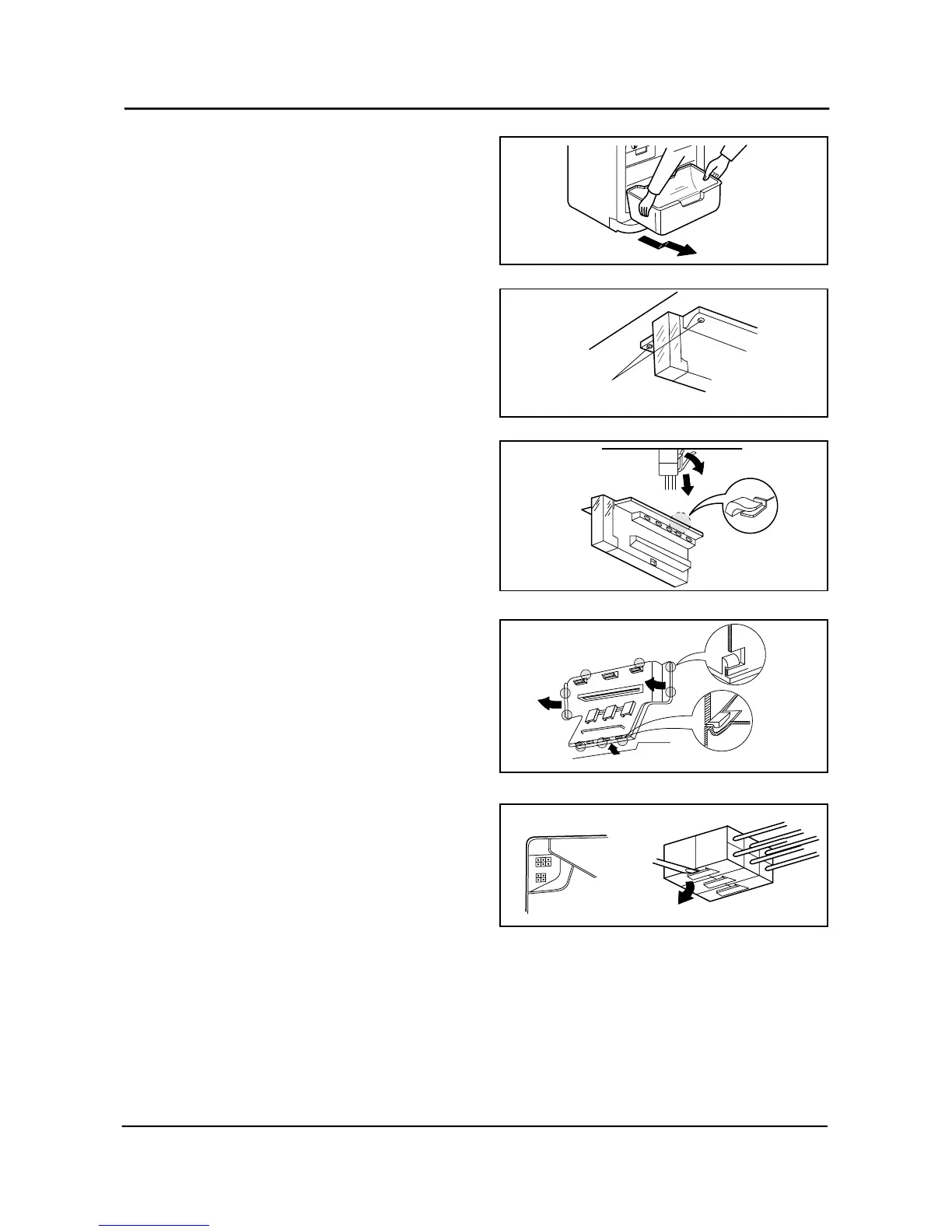

1. Take out the case from the freezer.
2. Remove 2 screws from the holder of the cooling
cycle unit.
3. Pull out the holder of the cooling cycle unit and
disconnect wire terminals.
4. Remove the latch of the cooling cycle unit cover
from the bottom.
5. Remove each terminal from the top of the
left wire assembly.
2 screws
①
①
②
③
②
4. Disassembly of the cooling cycle unit in the fr eezer
To Next Page
