4. Remove the Stand Rear from the Stand
assembly.
5. Remove the Stand Front from the Stand
assembly.
6. Remove the Neck Rear from the Stand
assembly.
7. Remove the 4 Rubbers on the four corner of
the Stand Bottom and the 4 screws on the four
corner of the Stand Bottom.
8. Remove the 5 stopper hings from the Bracket
Bottom.
9. Remove the Stand Base from the Stand
Assembly.
3-1-6 Wire frame stand Disassembly (option)
1. Carefully pull the cover hinge.
2. Remove the cover vesa from the Stand
assembly.
3. Remove 4 screws on the assembly Bracket
assembly.
3 Disassembly and Reassembly
3-2 SyncMaster 150MP

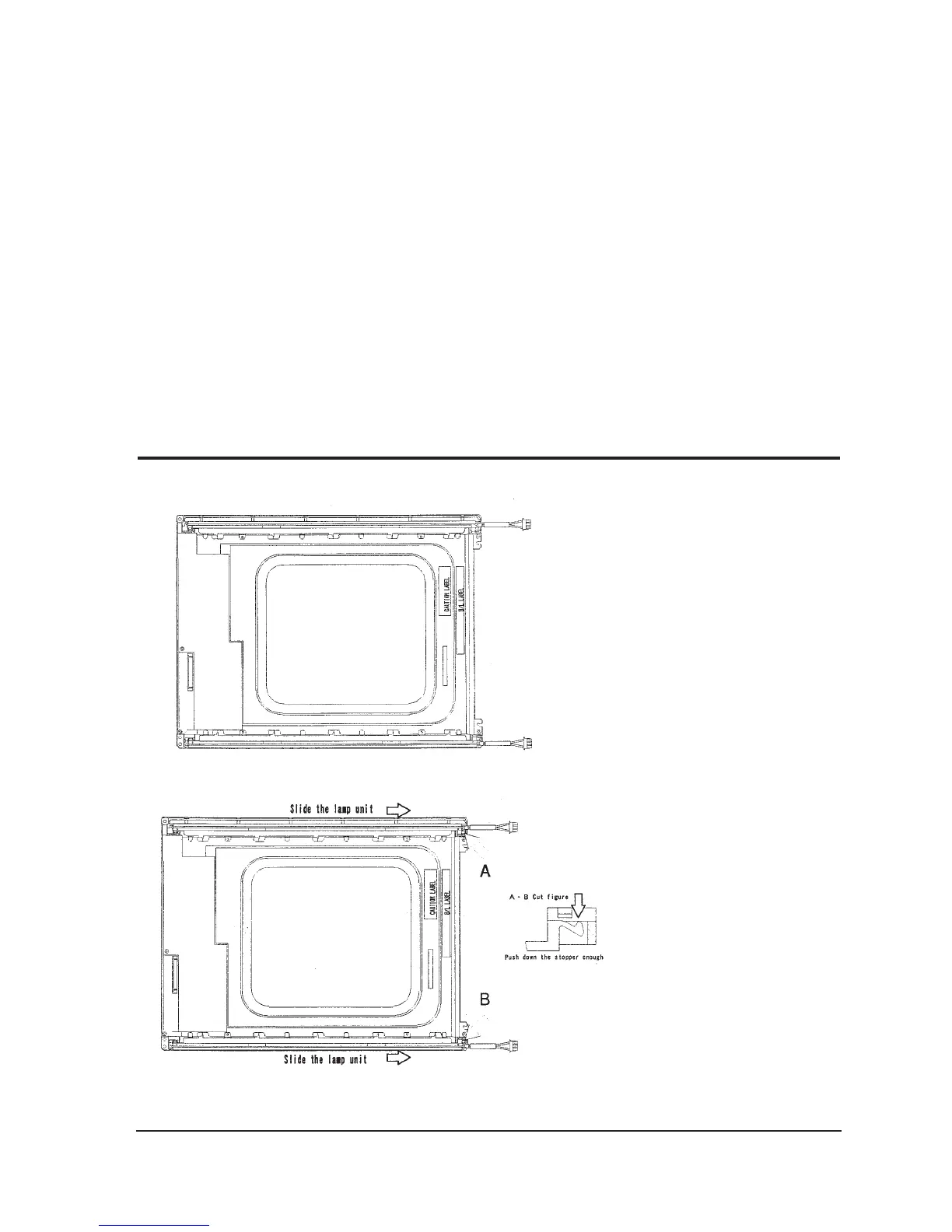

3-2 Replacement Order of Lamp Assemblies
1. After confirm there is nothing
on the desk
Turn the LCD module over
and put it on a flat desk set to
the ground.
2. Push down the stopper and
slide the lamp unit.
To Next Page
