3 Disassembly and Reassembly
213T 3-3

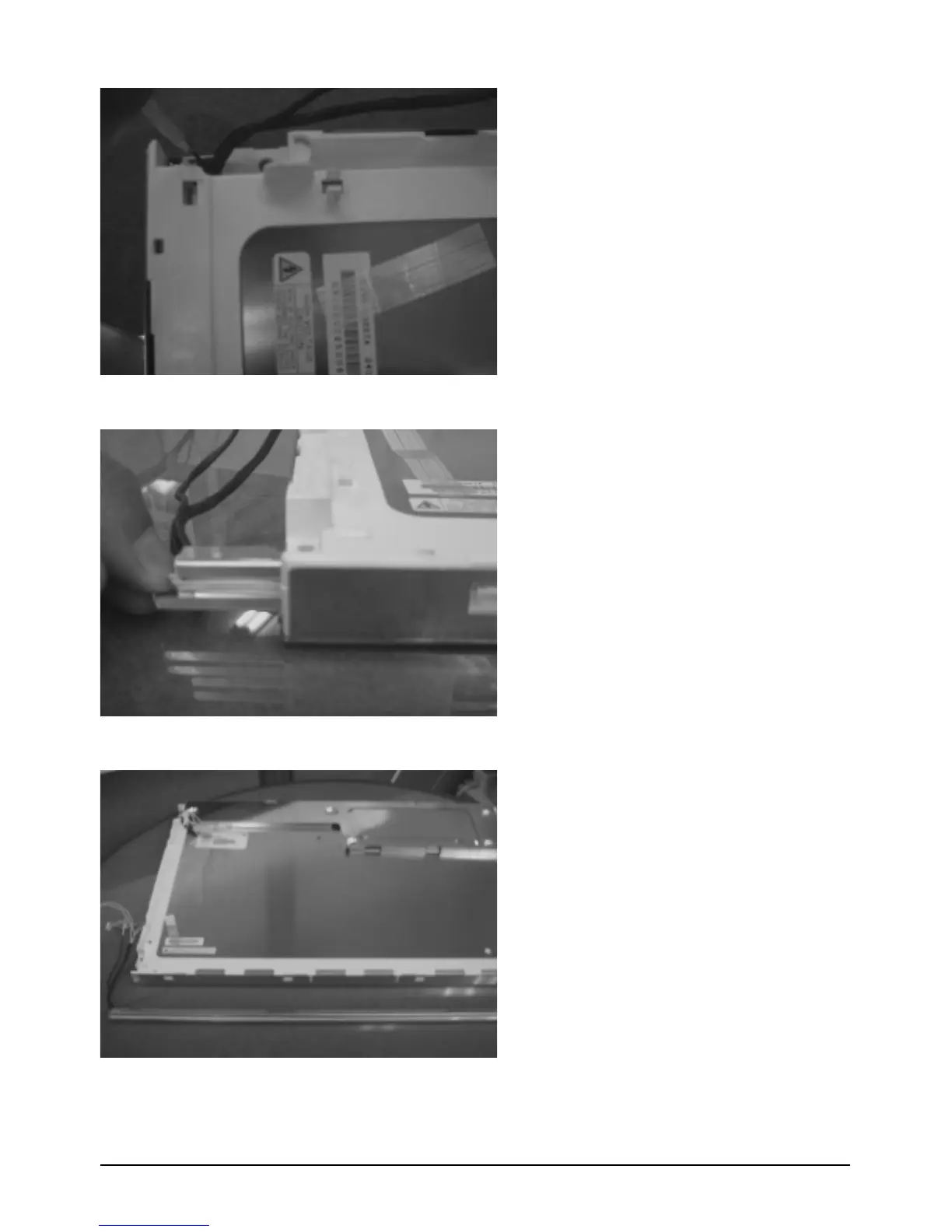

2. Unscrewing the screw.
Unscrewing force : 0.8 ~ 1Kg - f.cm
3. Pulling out the lamp assembly with stable
power and direction slowly.
Be careful, do not twist the lamp reflector
when pulling the lamp.
* Replacement of lamp unit should be done at the power off state and rcommended clean bench
condition.
4. Dis-assembled the lamp ass’y from LCD
completely.
To Next Page
