1) Connect the power cord for your LCD Display to the power port on the back of the LCD Display.
Trun on the power switch.

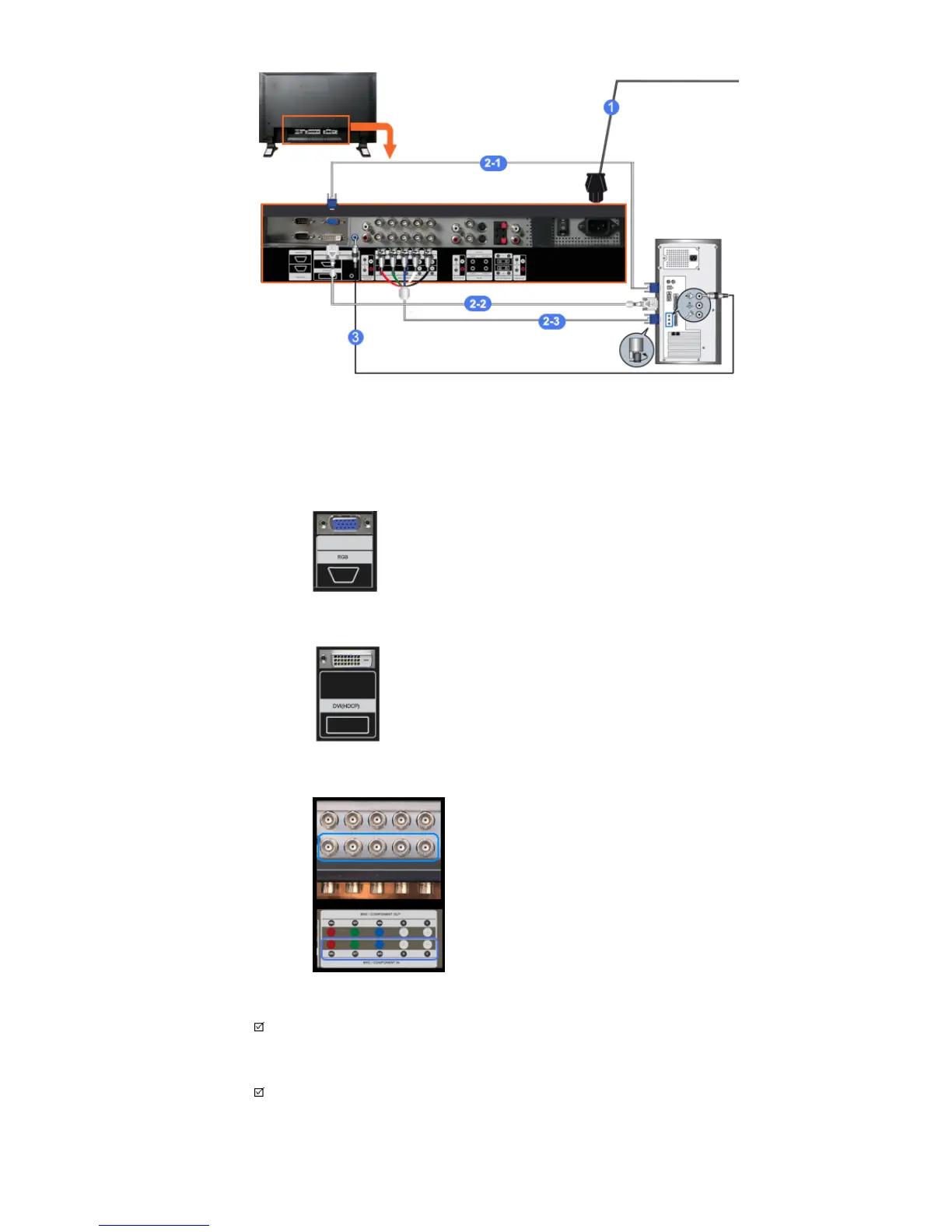

2) There are 3 ways to connect the D-sub to your LCD Display.
Choose one of the following:
2-1) Using the D -sub (Analog) connector on the video card.
Connect the D -sub to the 15-pin, RGB po rt on the back of your LCD Display and the 15 pin D-
sub Po rt on the computer.
2-2) Using the DVI (Digital) connector on the video card.
Connect the DVI Cable to the DVI(HDCP) port on the back of your LCD Display and the DVI port
on the computer.
2-3) Using the BNC (Analog) connector on the video card.
Connect the BNC Ca ble to the BNC/COMPONENT IN - R, G, B, H, V ports on the back of your
LCD Display and the 15 pin D-sub Port on the computer.
3) Connect the audio cable for your LCD Display to the audio port on the back of your computer.
Note
• Turn on both your computer and the LCD Display.
Note
• The DVI cable or BNC cable is optional.
Contact a local Samsung Electronics Service Center to buy optional items.
