• The audio-video cables shown here are usually included with a Camcorder.
(If not, check your local electronics store.)
If your camcorder is stereo, you need to connect a set of two cables.
Connecting a DTV Set Top Box
Note
• The connections for a typical Set Top Box are shown below.

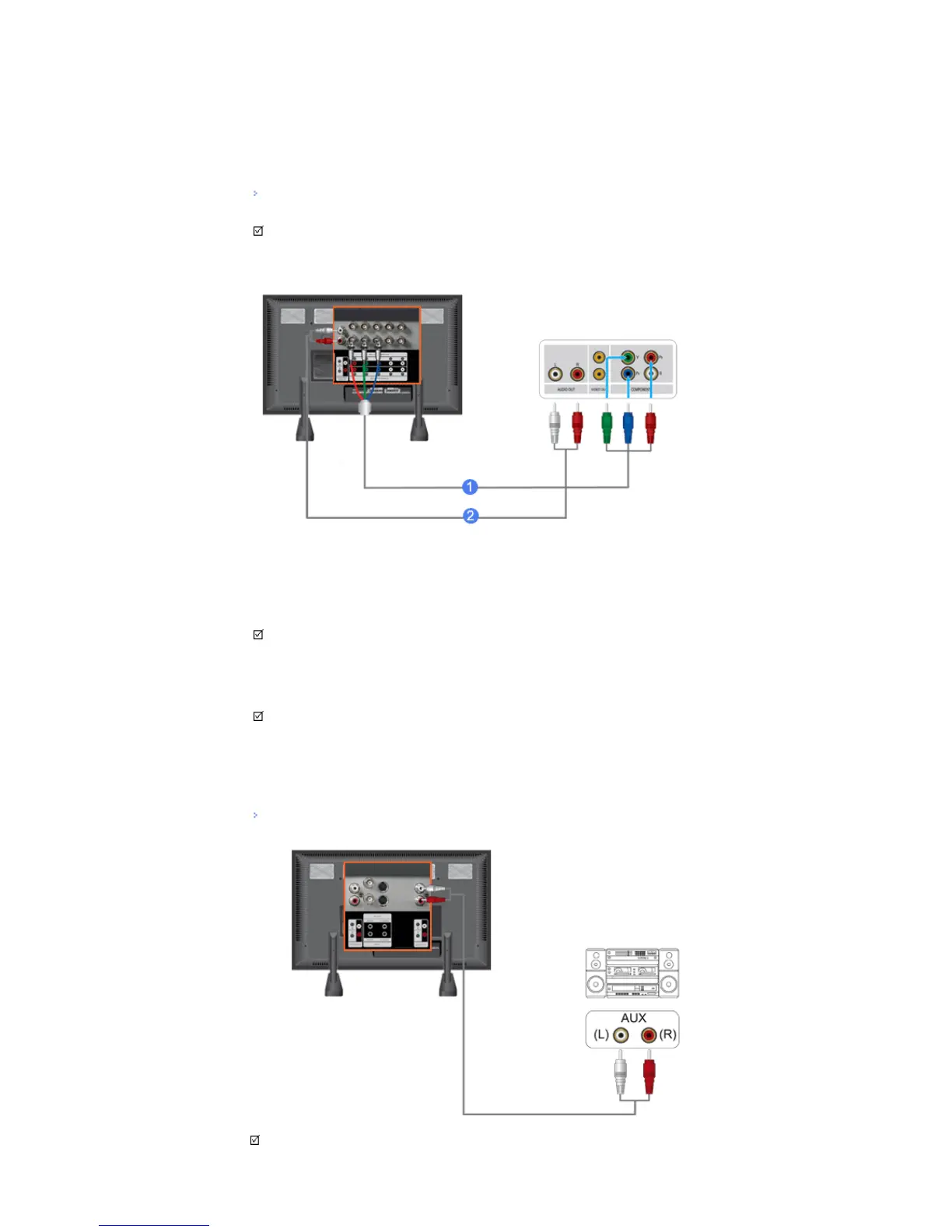

1) Connect a Component cable between the
BNC / COMPONENT IN - P
R
, Y, P
B
port on the LCD Display and
the P
R, Y, PB jacks on the Set Top Box.
2) Connect a set of audio cables between the
COMPONENT AUDIO IN [L-AUDIO-R]
on the LCD Display and
the AUDIO OUT jacks on the Set Top Box.
Note
•Select
Component
for the connection to a DTV Set Top Box using the SOURCE button on the front of the
LCD Display or on the remote control.
Note
• For an explanation of Component video, see your Set Top Box owner's manual.
Connecting to an Audio System
Note
