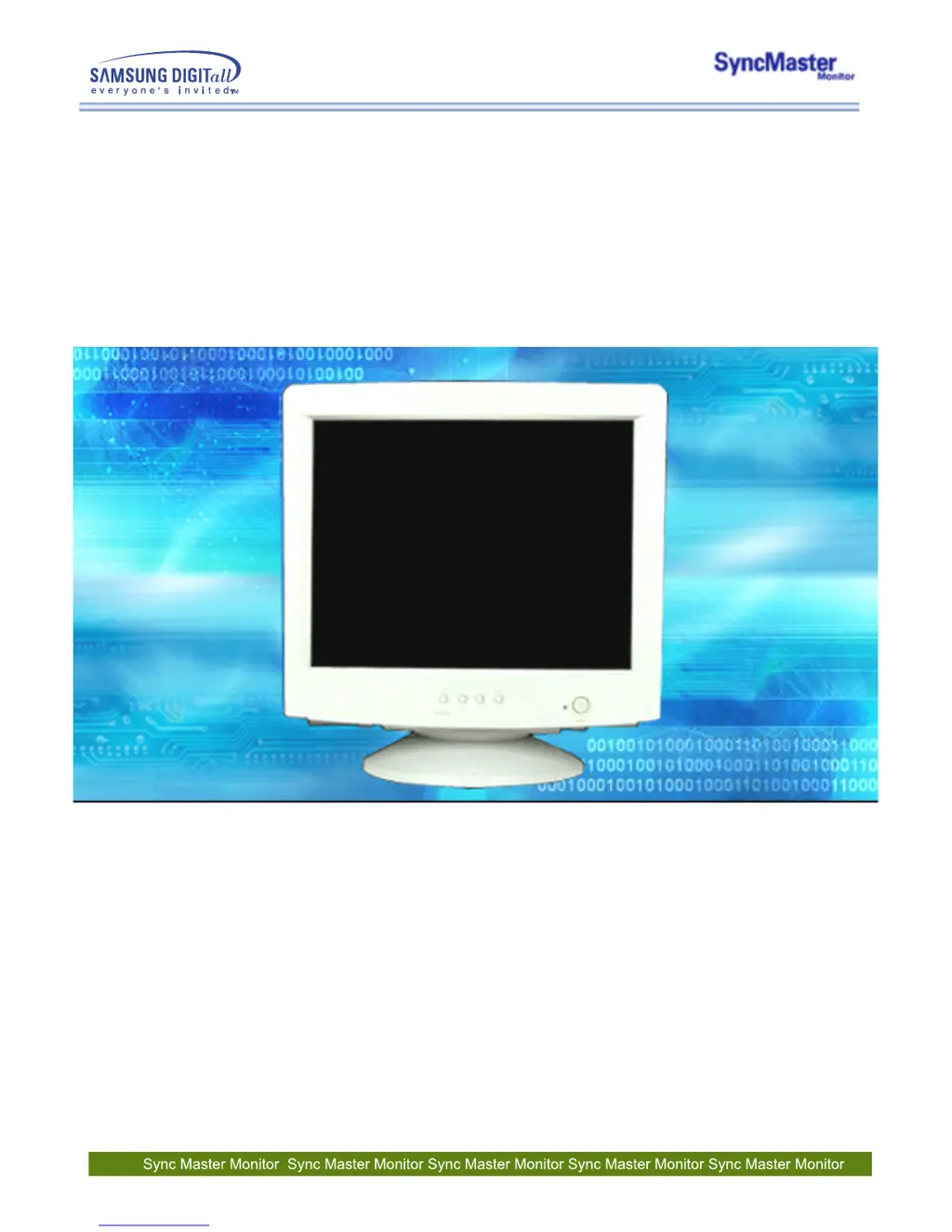

Samsung SyncMaster 773DFX User Manual (English)

Questions and Answers:

C
Carlos WatsonAug 14, 2025
Why is there no image on my Samsung SyncMaster 773DFX screen?
- M
  Mike HamiltonAug 14, 2025
  If there are no images on the screen and you cannot turn on the monitor, check the power cord and signal cable connections. If the initial screen appears, boot the computer in the applicable mode and change the frequency of the video card. Adjust the maximum resolution and frequency that the monitor can properly handle. Also, if the monitor is in PowerSaver mode, press a key on the keyboard or move the mouse.
J
Jose McintoshAug 17, 2025
What to do if the image on Samsung SyncMaster 773DFX screen is shaking?
- K
  kristenolsonAug 17, 2025
  The image on the screen may be shaking because the signal from the video card exceeds the maximum resolution and frequency of the monitor. Try moving the monitor away from anything that can create a strong magnetic field. Also, the screen image can appear to shake or vibrate at a particular time of day due to low supply voltage.
T
tina22Aug 21, 2025
Why does my Samsung SyncMaster 773DFX show strange colors or just black and white?
- C
  Carolyn TaylorAug 21, 2025
  If the screen shows strange colors or just black and white, check the signal cable connection and make sure the video card is fully inserted. Reboot the computer and set the video card by referring to the video card manual.
J
jennifercummingsAug 25, 2025
How to fix an unbalanced screen on my Samsung SyncMaster 773DFX Monitor?
- C
  Chad BryantAug 25, 2025
  If the screen suddenly has become unbalanced, adjust the screen image position and size using the OSD. Also, adjust the resolution and frequency at the video card and readjust the position by referring to the OSD.
J
Julie GonzalezAug 28, 2025
What to do if my Samsung Monitor LED is blinking but there are no images on the screen?
- J
  james16Aug 28, 2025
  If the LED is blinking but there are no images on the screen, adjust the frequency properly by referring to the video card manual and the Preset Display Modes, noting that the maximum frequency per resolution may differ from product to product.
T
Tara HernandezAug 31, 2025
Why are there only 16 colors shown on my Samsung SyncMaster 773DFX screen?
- C
  carolynowensAug 31, 2025
  If there are only 16 colors shown on the screen, or the screen colors have changed after changing the video card, set the colors properly at the Control Panel, Display, Settings (for Windows ME/XP/2000). Also, set the video card by referring to the video card manual.
D
Donald SmithSep 3, 2025
How do I fix a partially distorted screen on my Samsung SyncMaster 773DFX Monitor?
- T
  Tonya LucasSep 3, 2025
  If the screen is partially distorted, enter the OSD and perform a "Degauss". Keep the monitor away from any magnetic products.
S
scott81Sep 6, 2025
How to adjust the focus on my Samsung SyncMaster 773DFX Monitor?
- K
  Kevin BlackwellSep 6, 2025
  If the screen is out of focus or the OSD cannot be adjusted, adjust the resolution and frequency of the video card.
L
Linda GomezSep 10, 2025
How to fix if I cannot see the On Screen Display on my Samsung SyncMaster 773DFX Monitor?

Samsung SyncMaster 773DFX Specifications

General

Screen Size	17 inches
Display Type	CRT
Maximum Resolution	1280 x 1024
Refresh Rate	85 Hz
Vertical Refresh Rate	50 - 160 Hz
Bandwidth	110 MHz
Input Signal	Analog RGB
Input Connector	15-pin D-Sub
Power Consumption	80 W
Aspect Ratio	4:3
Viewable Size	16 inches
Input Connectors	15-pin D-sub
Response Time	Information not available

Summary

Safety Instructions

Notational Conventions

Explains warning symbols and conventions used in the manual.

Power Safety

Power Handling Guidelines

Guidelines for safe power connection and usage.

Installation Safety

Safe Installation Practices

Instructions for proper monitor placement and setup.

Cleaning Procedures

Safe Cleaning Methods

Procedures for cleaning the monitor safely.

Additional Safety Precautions

General Usage Warnings

Additional safety guidelines for monitor operation.

Introduction to Monitor

Unpacking the Monitor

Lists items included with the monitor and unpacking steps.

Monitor Front Panel

Front Controls and Indicators

Identifies and explains the front panel controls and indicators.

Monitor Rear Panel

Rear Panel Connections

Identifies and explains the rear panel ports.

Monitor Bottom Panel

Bottom Connections and Base

Identifies and explains bottom panel connections and base.

Setup and Connection

Connecting Your Monitor

Step-by-step guide to connect the monitor to a computer.

Base Installation

Attaching and Detaching the Base

Instructions for attaching and detaching the monitor base.

On Screen Display (OSD) Menu System

OSD Control Button Functions

Explains the function of each OSD button.

Adjusting Brightness and Contrast

How to adjust brightness and contrast via the OSD.

Adjusting Screen Position

How to adjust screen position using OSD.

Adjusting Screen Size

How to adjust screen size using OSD.

Adjusting Geometry (Pincushion/Trapezoid)

How to adjust pincushion and trapezoid distortion.

Adjusting Display Geometry (Parallelogram/Rotation)

How to adjust parallelogram and rotation settings.

Adjusting Display Properties (Pinbalance/Linearity)

How to adjust pinbalance and vertical linearity.

Language Selection

How to change the OSD menu language.

Adjusting Moiré Patterns

How to adjust H-Moire and V-Moire patterns.

Video Input Level Adjustment

Adjusting input signal level for brightness.

Color Temperature Settings

Adjusting color temperature for Color1 and Color2 modes.

sRGB Mode and Zoom Function

Using sRGB mode and zoom feature.

Degauss and Recall Functions

Using degauss and recall features to reset settings.

Display Timing and OSD Lock

Understanding display timing and locking the OSD.

Troubleshooting Common Issues

No Image or Power Problems

Solutions for monitor not turning on or showing an image.

Image Shaking and Color Issues

Solutions for shaking images, strange colors, and display balance.

Screen Focus and Distortion

Solutions for focus, distortion, and 16-color problems.

Frequently Asked Questions (Q&A)

Query Responses

Answers on frequency, resolution, power saving, sounds, and cleaning.

Self-Test Feature Check

Performing the Monitor Self-Test

Steps to perform the monitor self-test and interpret results.

Environmental Factors and Tips

Environmental influences and troubleshooting tips.

General Specifications

Monitor Technical Details

Detailed technical specifications of the monitor.

PowerSaver Feature

Power Management System

Explanation of the power management system and modes.

Preset Timing Modes

Supported Display Modes

Table of preset timing modes and their parameters.

Service Center Information

Regional Contact Details

Lists service center contact details for various regions.

Technical Terms Glossary

Definitions of Key Terms

Definitions of technical terms used in the manual.

Regulatory Compliance

FCC and Canadian Compliance

FCC compliance details and user instructions.

European and Other Compliance

European, PCT, and VCCI compliance notices.

TCO Environmental Standards

Summary of TCO'95, TCO'99, TCO'03 environmental requirements.

Natural Color Software

Software Installation Guide

Information on the color management software and its installation.

Document Authority

Copyright and Disclaimer
