Samsung SyncMaster PX2370 - Connecting with a PC

2-3 Installing the Product
2-3 Connecting with a PC
The connecting part may differ depending on the product model.

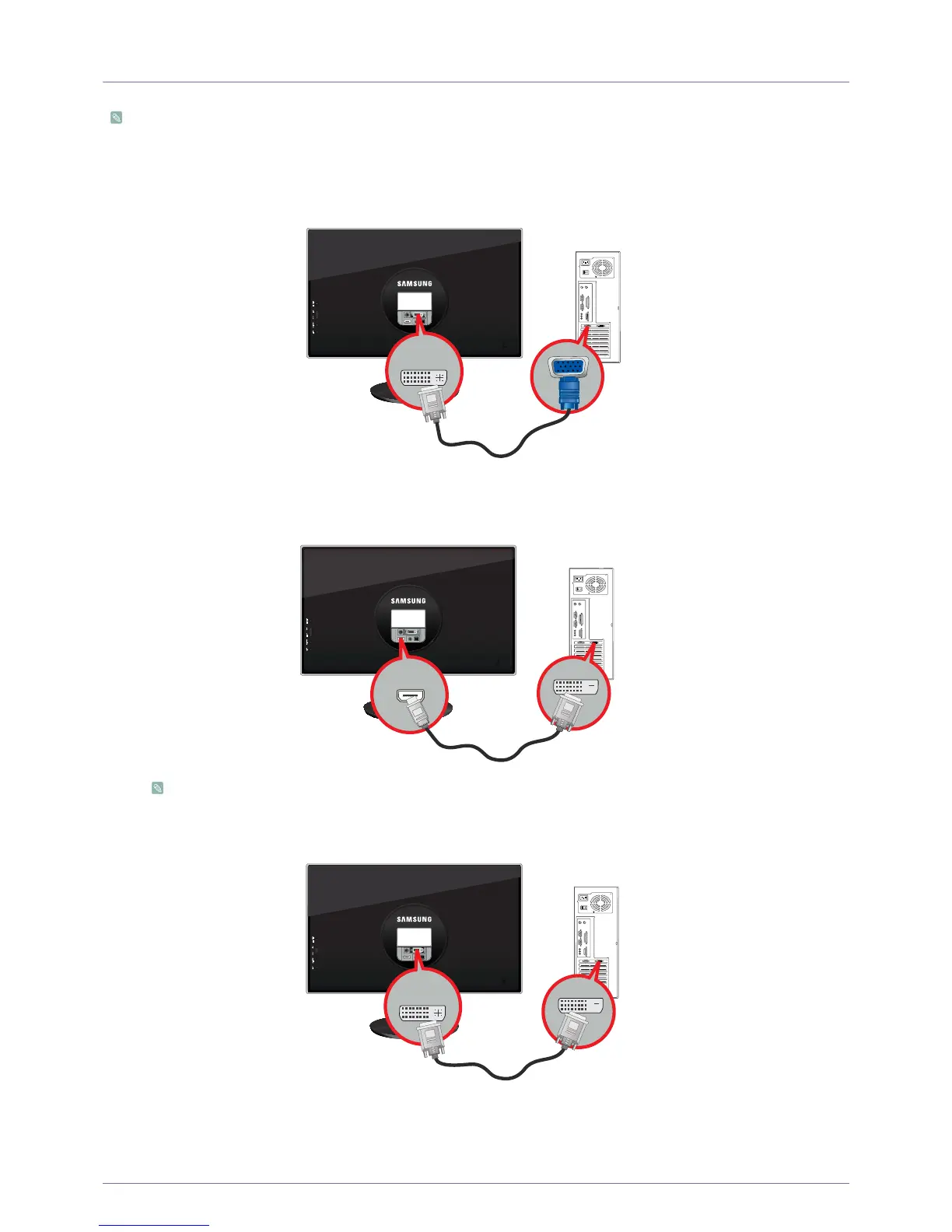

1. Connect the product to a PC depending on the video output supported by the PC.
• When the graphics card provides D-Sub (Analog) output
• Connect the [DVI IN] port of the product to the D-Sub port on your PC using the DVI to D-Sub cable.
• When the graphics card provides DVI(Digital) output
• Connect the [HDMI IN] port of the product to the DVI port on your PC using the HDMI to DVI cable.
Change the mode by selecting [MENU] → [SETUP&RESET] → [PC/AV Mode] → [PC].
• Connect the [DVI IN] port of the product to the DVI port of the PC with the DVI cable.
•
• When the graphics card provides HDMI output
