Samsung SyncMaster PX2370 - Connecting an AV Device

2-4 Installing the Product
2-4 Connecting an AV Device

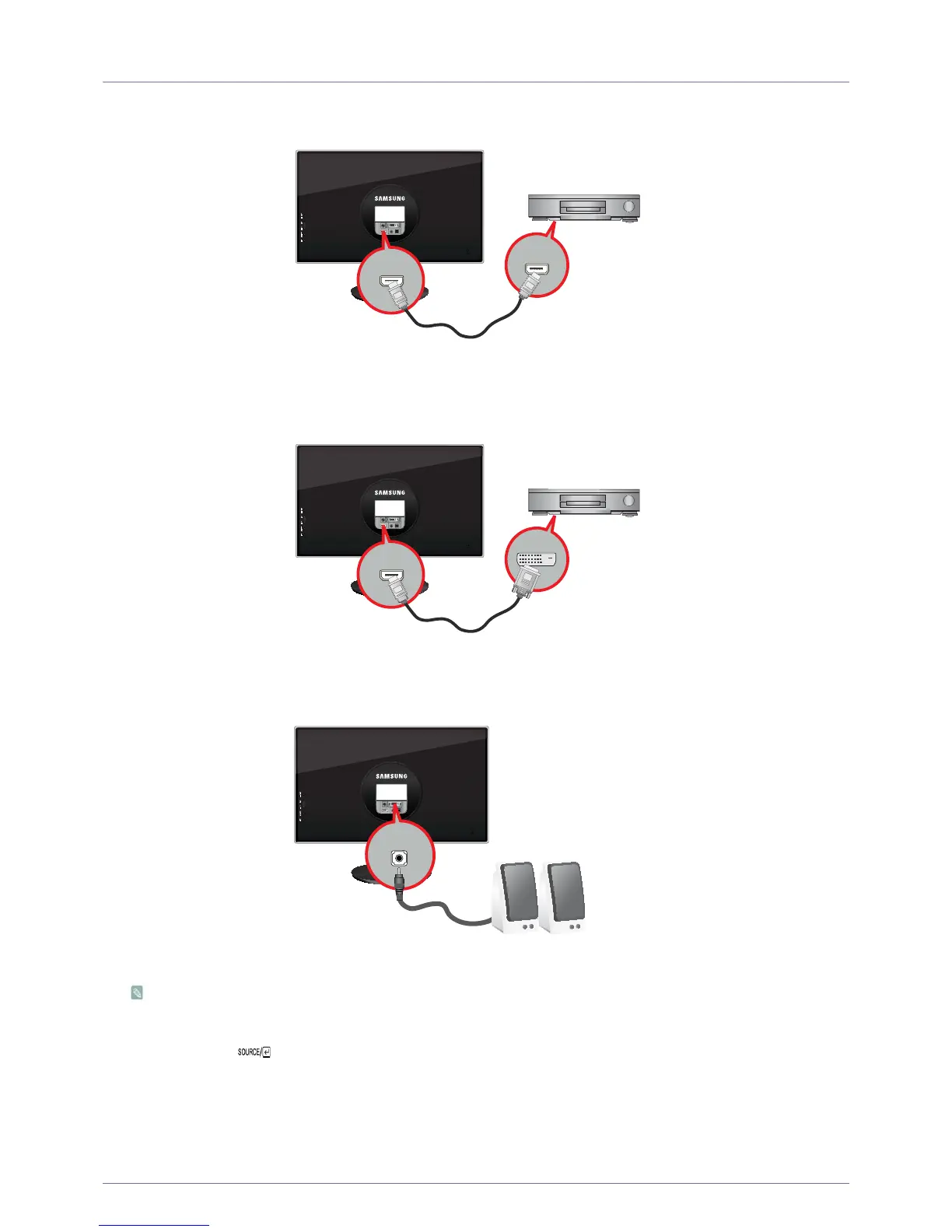

1. Connect the HDMI output port of your digital output device to the [HDMI IN] port of the product using the HDMI cable.
2. Connect the DVI output port of your digital output device to the [HDMI IN] port of the product using the HDMI to DVI cable.
3. Connect a speaker to the [AUDIO OUT] port of the product.
• This product won't make any sound when only the HDMI cable is connected without a speaker connected.
• When all the connections are complete, you can turn on and use the product and your DVD player (or digital output
device).
• Press the button and select <HDMI> as an input signal.
