3-3
3. Disassembly and Reassembly
Description Picture Description Screws

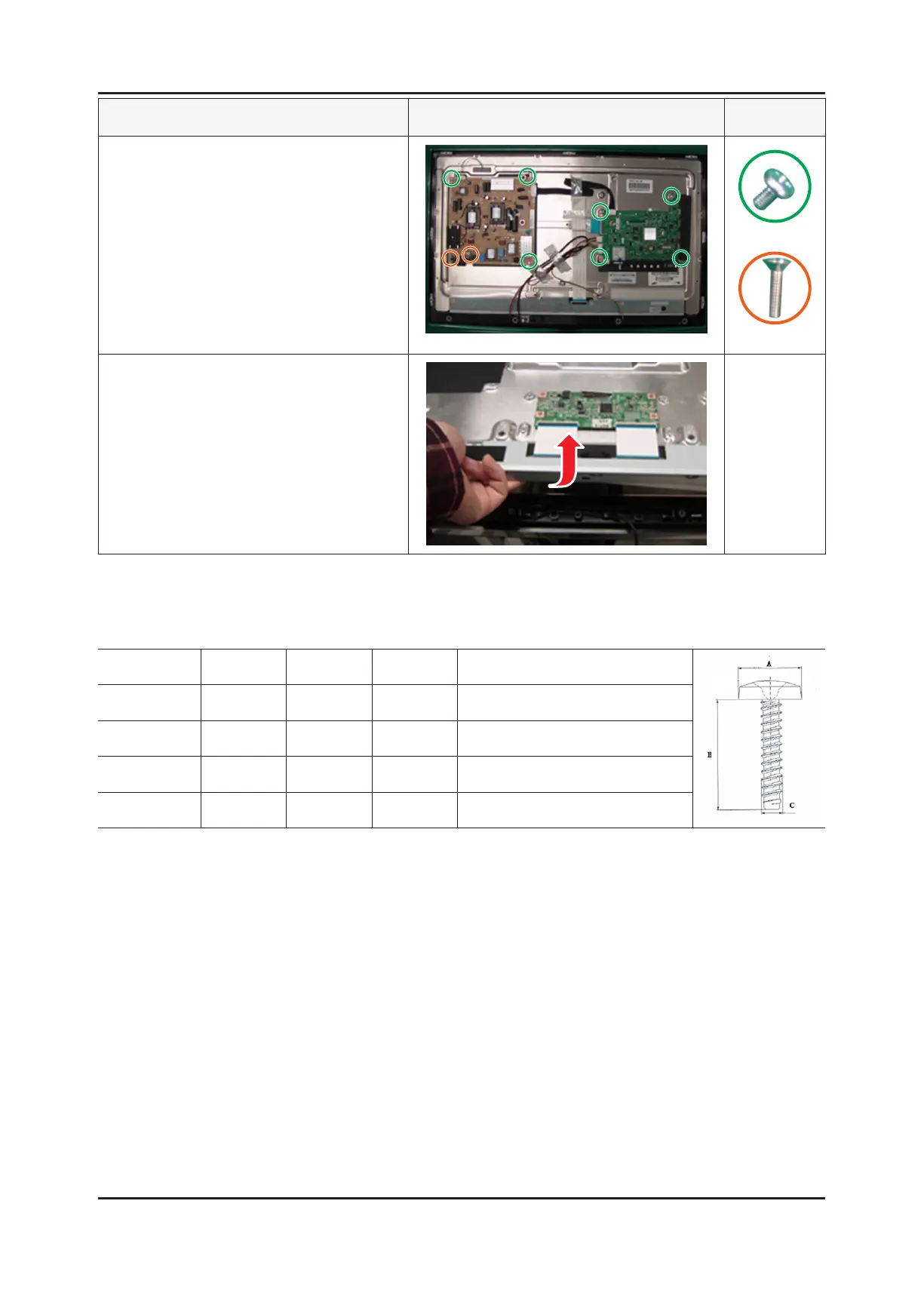

6. Remove the 4 screws of main board and
5 screws of IP board.
6001-002283
6001-000115
7. Lift up the panel.
Reassembly procedures are in the reverse order of disassembly procedures. ※
Screw Size
Code No. A (mm) B (mm) C (mm) Q’ty
6003-001003 8.3~8.4 12~12.4 4~4.15
6003-000133 8.3~8.4 7.9~8.3 3.70~3.83
6001-002283 6.3~6.5 5.0~5.6 2.87~8.98
6001-000115 5.8~6.3 9.4~10.0 2.87~2.98
