5-4
5. Wiring Diagram
5-3. Connector Functions
Connector Functions
Main IP (14p)
Supply main power and dimming signal from IP Board to Main Board.
Main T-CON (51p/30p LVDS)
The LVDS signal transfered from Main Board to Panel.
IP Panel (6p) (use only AMLCD panel)
Supply power from IP board to Driver Board.

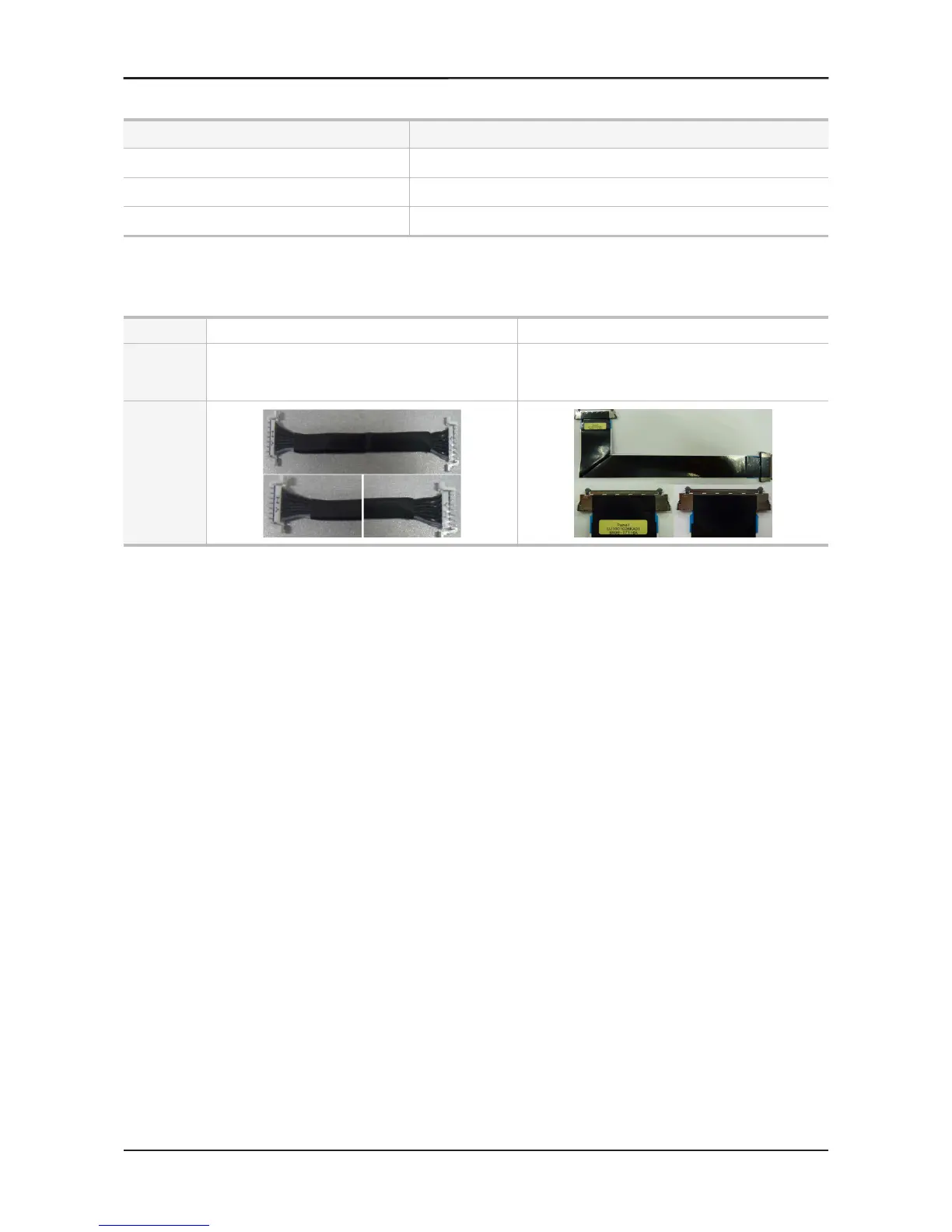

5-4. Cables
Use LEAD (Main-IP 14P) LVDS (Main - TCON)
Code
32" : BN39-01455D (275mm)
40" : BN39-01455B (300mm)
46" : BN39-01455A (450mm)
32" : BN96-17116E (280mm)
40" : BN96-17116F (345mm)
46" : BN96-17116G (460mm)
