02 Connections

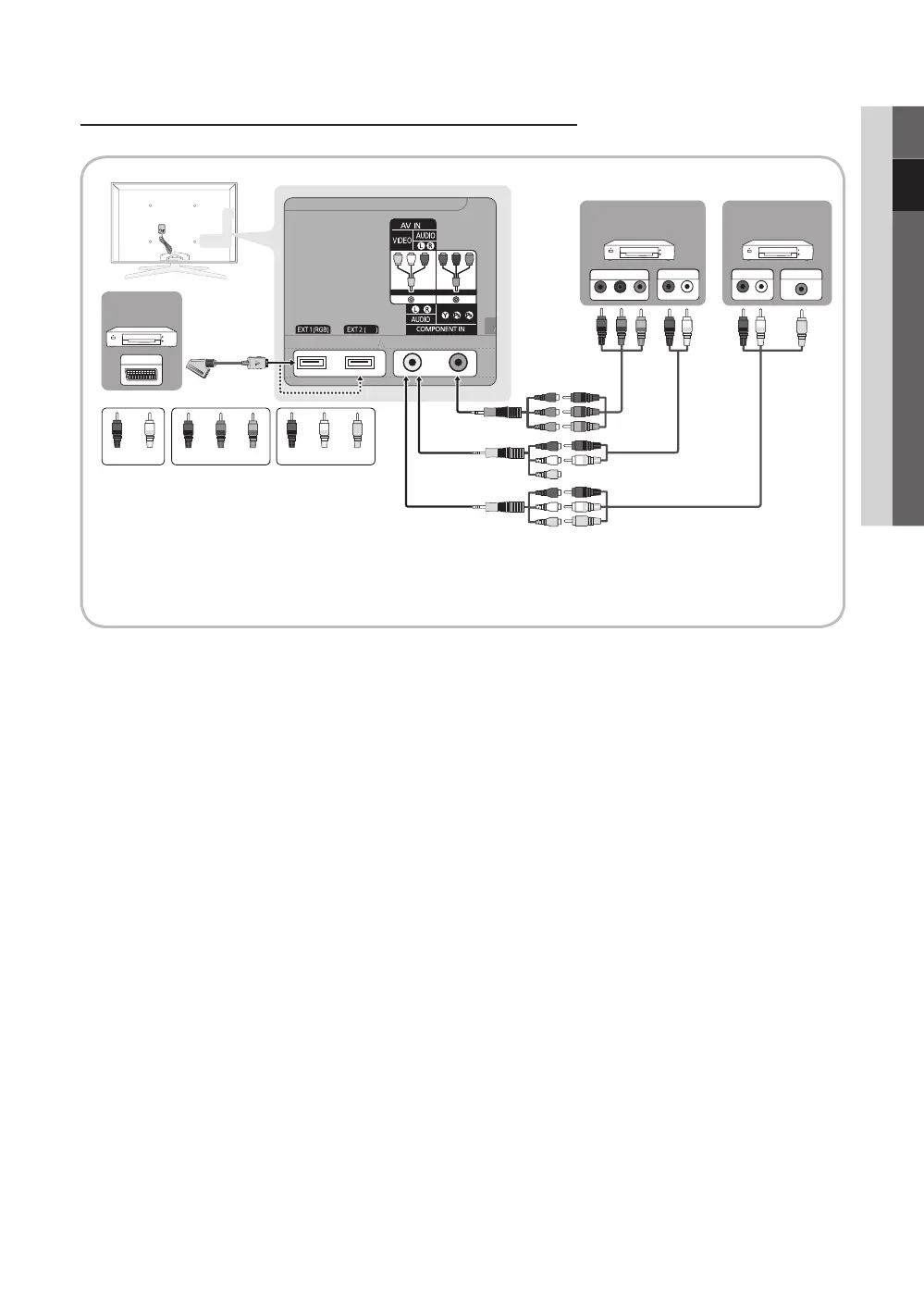

Using a Component (up to 1080p) or Audio/Video (480i only) and Scart Cable
Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR
✎ In Ext.1, Ext.2 mode, DTV Out supports MPEG SD Video and Audio only.
✎ To obtain the best picture quality, the Component connection is recommended over the A/V connection.
AV
PR PB Y
COMPONENT OUT
VIDEO OUTAUDIO OUT
R-AUDIO-L
AUDIO OUT
R-AUDIO-L
EXT
R
G
B
W R
Y
W R
Y
W R W R
R
G
B
R
B
G
Y
WRWR
VCR / DVD
VCR
DVD /
Blu-ray player
RedRed WhiteWhite YellowRed Blue Green
