Connecting devices to your TV
You can connect various external devices using the connectors located at the back of the product. Check the connectors and
then refer to the assembly instructions provided for more information on supported external devices.
Connecting to a COMMON INTERFACE slot (Your
TV viewing Card Slot)
- Turn the TV off to connect or disconnect a CI card or CI card adapter.

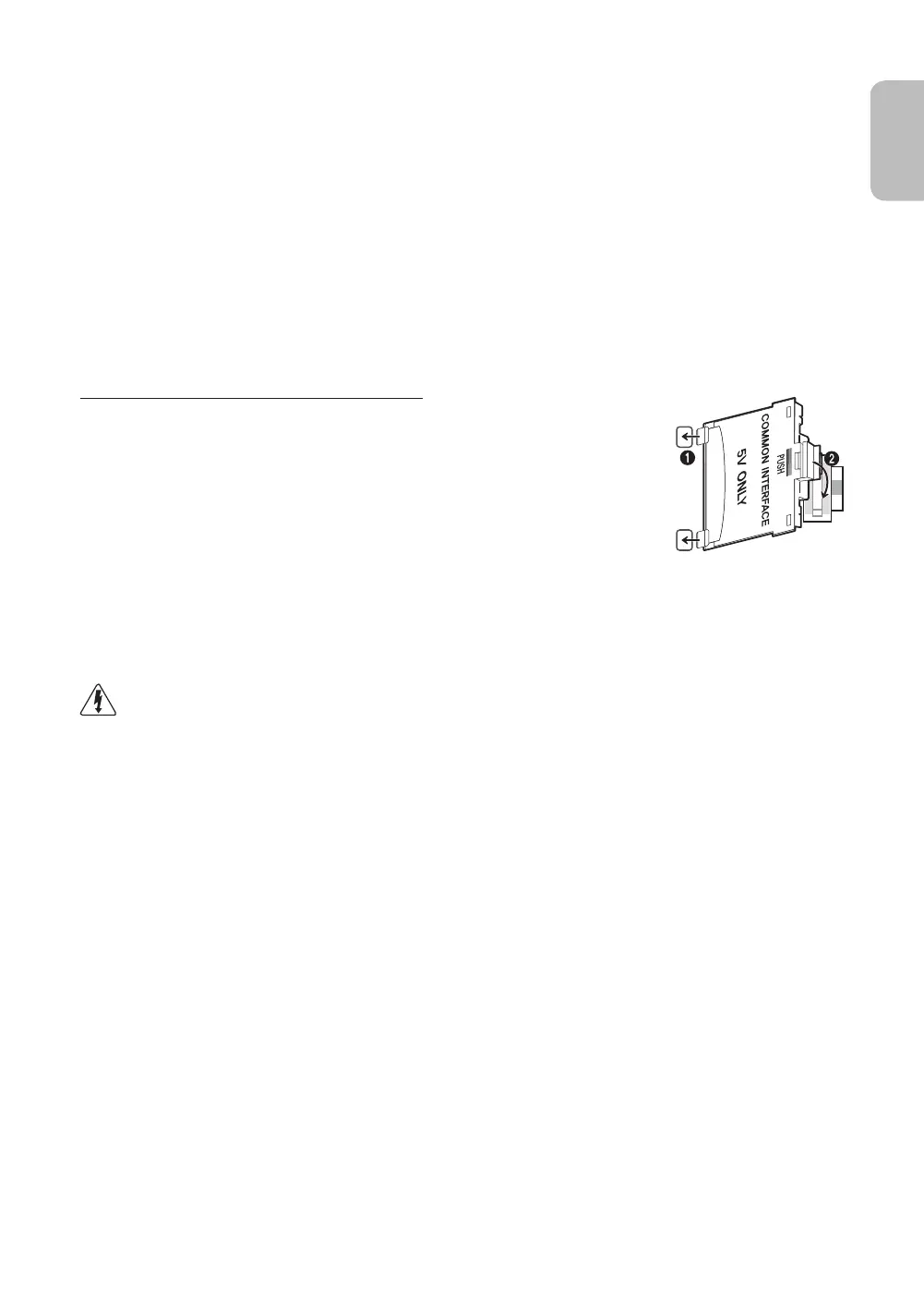

Attaching the CI Card Adapter
Attach the adapter as shown.
- To install the CI CARD Adapter, please remove the sticker attached to the TV.
To connect the CI CARD Adapter, follow these steps.
- We recommend attaching the adapter before installing the wall mount, or inserting the
“CI or CI+ CARD”.
1. Insert the CI CARD Adapter into the two holes on the product 1.
- Please locate the two holes at the back of the TV next to the
COMMON INTERFACE
port.
2. Connect the CI CARD Adapter to the
COMMON INTERFACE port on the product 2.
3. Insert the “CI or CI+ CARD”.
We recommend that you attach the CI Card adapter and insert the CI card (viewing card) before you mount the
TV on the wall because it may be difficult and dangerous to do this when it is on the wall.
03 Connections
[UH5500_UH5510-XN-ZF]BN68-06876B-00L04.indb 7 2014-09-25  4:47:26

Samsung UE40H5500AW Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	40 \
Display brightness	- cd/m²
LED backlighting type	-
Supported video modes	1080p
Supported graphics resolutions	1920 x 1080 (HD 1080)
Motion interpolation technology	CMR (Clear Motion Rate) 100
Motion control	No
Annual energy consumption	62 kWh
Tuner type	Analog & digital
Digital signal format system	DVB-C, DVB-T
Audio decoders	Dolby Digital, Dolby Digital DTS
RMS rated power	10 W
Number of speakers	2
HDMI version	1.4a
HDMI ports quantity	3
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	1
Consumer Electronics Control (CEC)	Anynet+
Number of OSD languages	27
Picture processing technology	Samsung Wide Color Enhancer
Product color	Black
Panel mounting interface	200 x 200 mm
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	105 W
Power consumption (standby)	0.3 W
Power consumption (typical)	45 W
Power consumption (PowerSave)	25 W
Package depth	120 mm
Package width	1100 mm
Package height	600 mm
Package weight	10500 g
Cables included	IR

Weight and Dimensions

Depth (with stand)	196.4 mm
Height (with stand)	578.2 mm
Weight (with stand)	8600 g
Depth (without stand)	65.1 mm
Width (without stand)	906.6 mm
Height (without stand)	532.9 mm
Weight (without stand)	7700 g
