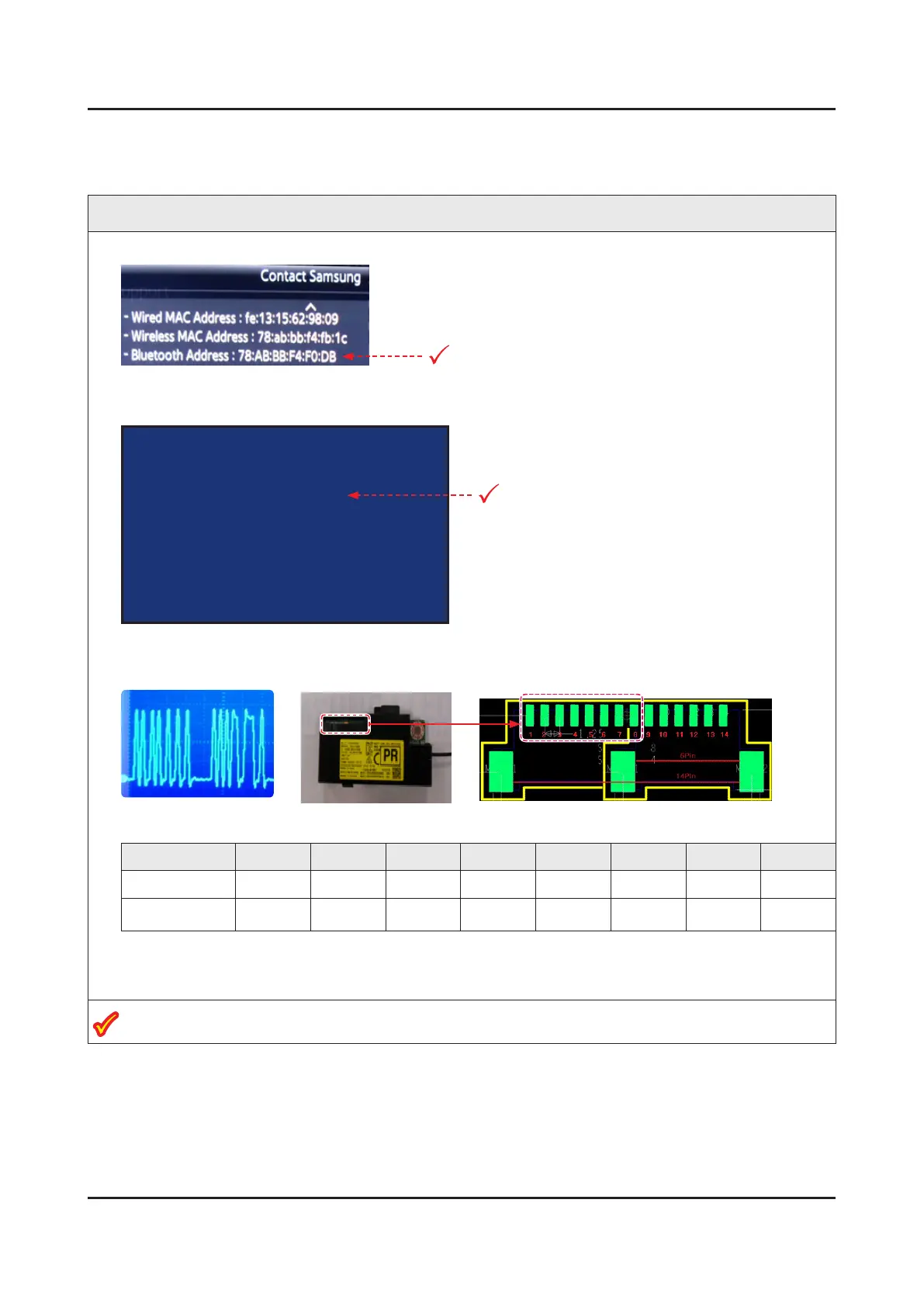

4-2-2. Bluetooth / WIFI Module

Bluetooth Module 

Troubleshooting

1 Check Bluetooth Address at Contact Samsung.

BT Address

2 Check BT Version at Factory Mode screen.

Might require upgrade. Check GSPN. -

T-HKMAKUC-XXXX.XX

T-HKMAKUS-XXXX

BT Version : BLUETOOTH-VER-XXXX

E-MANUAL : HMUATSCJ-X.XXX

CAMERA : ****

BLASTER VERSION : Not Support

BT Version

3 Check the BT Connector voltage.

If the DC voltage supply is missing, check the - cable and the Main Board.

BT Signal

(4V P-P)

Pins 1 2 3 4 5 6 7 8

Standby

0 3.3Vdc 0 5Vdc 0V 0 0 0

Power ON

3.3Vdc 3.3Vdc 0 5Vdc

2V BT Sig.

4V P-P

2V BT Sig.

4V P-P

Sync 3.3V

P-P

All Measurements in the Chart are DC Volts with Multi Meter.•

Bluetooth Sig. & Sync Pulse are effective DC Readings.•

Voltage is normal, but BT Sig. pins (DC Ref.) If you do not measure, BT Module can possibly defective.

4-5

4. Troubleshooting
