Samsung UN46B8000XFXZA Service Manual

6-4
6. Wiring Diagram
6-3. Connector Functions
Connector Functions
CNM802<->CN201 Supply power from SMPS to Main Board.
CN1002<->T-CON The LVDS signal transfered from Main Board to Panel.

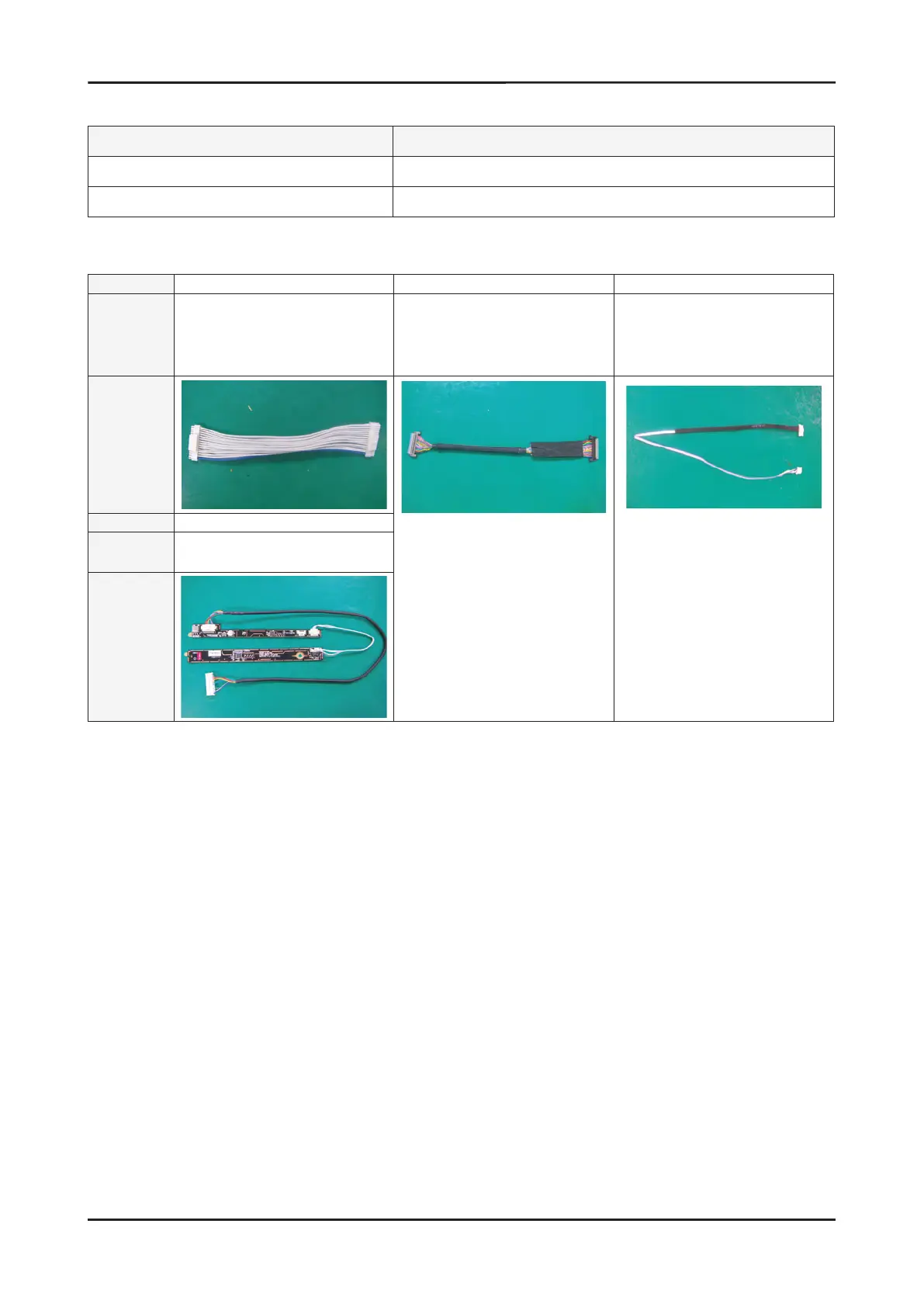

6-4. Cables
Use Main-SMPS Main-Tcon Main-RF module
Code
BN39-01099L(30P 100mm) 46” : BN39-01184B(51P 250mm)
55” : BN39-01184C(51P 300mm)
46” : BN39-01184A
(6P-10P 350mm)
55” : BN39-01184B
(6P-10P 400mm)
Use Function Assy
Code
46” BN96-10736C
55” BN96-10736D

Samsung UN46B8000XFXZA Specifications

General

Screen Size	46 inches
Resolution	1920 x 1080
Display Type	LCD
Refresh Rate	240 Hz
HDMI Ports	4
USB Ports	2
Display Technology	LED
Backlight	LED
Component Video Inputs	1
Composite Video Inputs	1
Ethernet Port	Yes
Wireless	Yes
Smart TV	Yes
