Samsung US24A2QC - Outdoor Unit Wiring

25

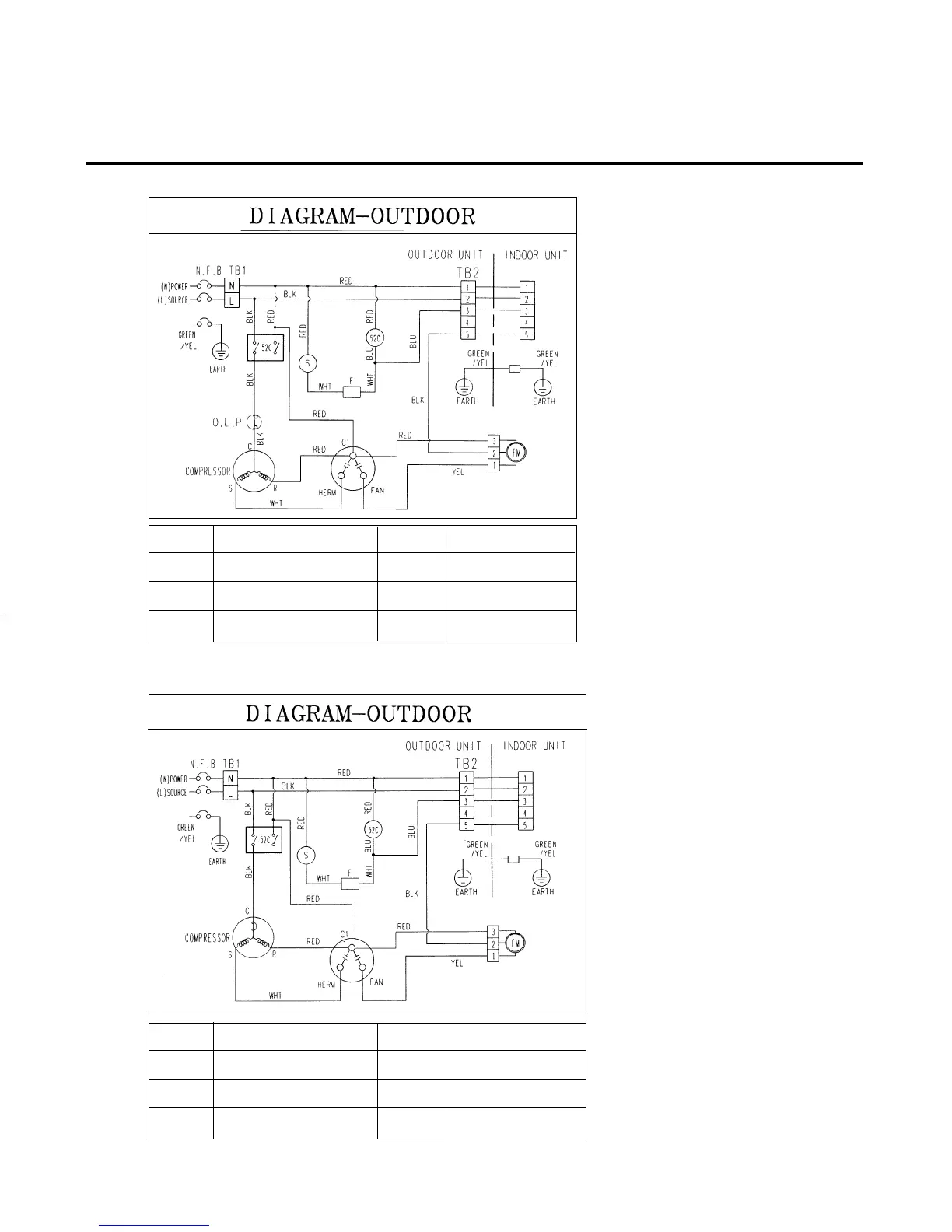

7-2 Outdoor Unit
MARK NAME MARK NAME
52C MAGNETIC CONTACTOR TB 1,2 TERMINAL BLOCK
C1 CAPACITOR FM FAN MOTOR
F FUSE(2A,250V~) S SPARK KILLER
MARK NAME MARK NAME
52C MAGNETIC CONTACTOR TB 1,2 TERMINAL BLOCK
C1 CAPACITOR FM FAN MOTOR
F FUSE(2A,250V~) S SPARK KILLER
■ US24A2QC
■ US18A2QC
1- 5/14/01 8:44 PM Page 25
