SAMWON ENG SU-105 Instrument for Automatic Control of Temperature Page 3/4
① Reset Aux. output as Alarm Output.
▶ Aux. output is selectable for Alarm output and Period Timer output.
Therefore, it should be reset as Alarm output.
(It ’ s preset as Alarm output at manufacturer ’ s site.)
▶To reset manufacturer ’ s preset, press up key and set key both
simultaneously for more than 3 seconds at current state.
▶ up key and set key both , until FIL appears. Release both key when
FIL comes up on display.
▶ set key several times to move to ot2.
▶ When ot2 comes up, Up(up),Down(dn) key to change the preset value
as below.
FAC
SET
ITEM
VALUE
EXPLANATION
ot2
AL
Aux output is set as alarm output.
▶ set key for 3~ seconds will memorize the changed value.
② How to set the temperature of Alarm output.
▶ set key for more than 3 seconds at current state. Release set key
when DiF or P comes up.
▶ set key several times to move to SV2.
▶ Change the set value by using Up(up),Down(dn), SET(set) key.
Installer’
s Reset
Item
Value
Said to
SV2
Range of
available temp.
To set temperature of Alarm output.
dF2
0.1~25.0
To set the value in the range of Alarm output
OFF~ output ON.
dt2
0~300 sec.
To set the delay time of Alarm output ON.
ty2
H / C
To set the value of Alarm output
Heating(H/in right direction) and
Cooling(C/in opposite direction).
▶ set key for more than 3 seconds to memorize the value.
Ex.1) Assuming 20.0℃ of Alarm output temperature, dF2=5.0, dt2=10, ty2=H,
Relay ON : ON after 10 seconds waiting at 14.9℃
Relay OFF : 20.0℃
Ex.2) assuming 20.0℃ of Alarm output temperature, dF2=2.0, dt2=20, ty2=C,
Relay ON : ON after 20 seconds waiting at 22.1℃
Relay OFF : 20.0℃
※ Alarm output will operate being isolated from the operation of
Thermometer.
① Set Aux. output to Period Timer output.
▶ Aux. output is selectable for Alarm output and Period Timer output.
Therefore, it should be reset as Period Timer output..
(It ’ s preset as Alarm output at manufacturer ’ s site.)
▶ To reset manufacturer ’ s preset, press up key and set key both
simultaneously for more than 3 seconds at current state.
▶ up key and set key both , until FIL appears. Release both key when
FIL comes up on display.
▶ set key several times to move to ot2.
▶Change the set value by using Up(up),Down(dn) key.
FAC.
SET
ITEM
VALUE
EXPLANATION
ot2
tIM
Aux output is set as Period Timer output.
▶ set key for 3~ seconds will memorize the changed value.
② How to set On/Off time of Period Timer output.
▶ set key for more than 3 seconds at current state. Release set key
when DiF or P comes up.
▶ set key several times to move to tIM.
▶ Change the set value by using Up(up),Down(dn), SET(set) key.
Installer’
SET
ITEM
VALUE
EXPLANATION
tIM
MIn / SEC
Select value of Min/SEC.
odr
on / oFF
Select value of initial output
ton
0 ~ 999
Select output ON time value.
* 0  continuous OFF state without ON
time.
toF
0 ~ 999
Select output OFF time value.
* 0  continuous ON state without OFF time.
▶ set key for more than 3 seconds to memorize the value.

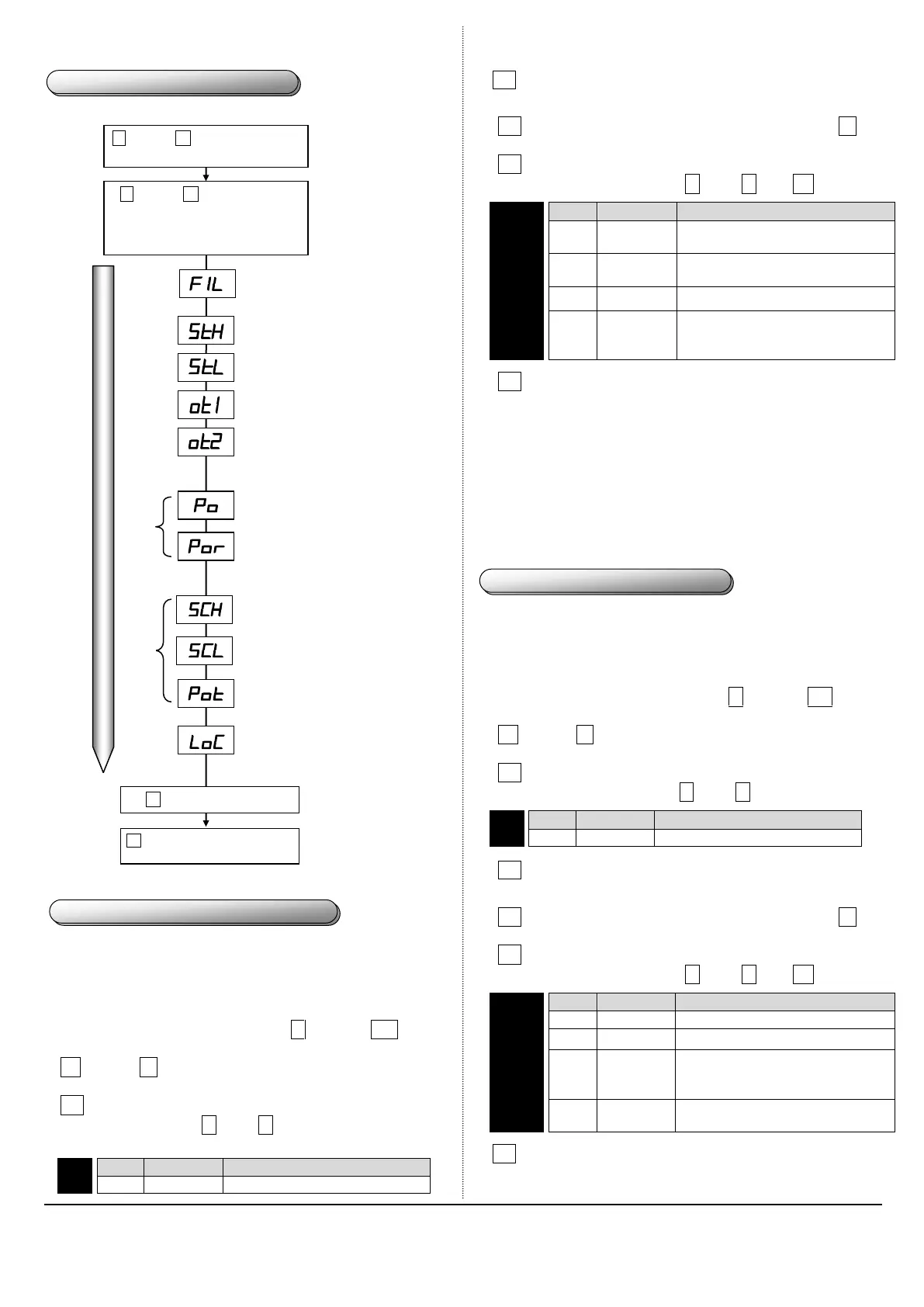

8. PRESET at manufacturer’s site
Filter value(0~9): The shaking of displayed value could
be minimized by leveling the input value for a certain
time period. Its leveling time may slow down the
reaction of input. (default value: 0)
Up limit of preset (range of preset temperature) : will
limit the preset temperature less than specified value.
* With sensor A, limit will be decided by SCH value.
up key and set key both for more than
3 seconds at current state.
up key and set key both , until FIL
appears. Release both key when
FIL comes up..
※ Repeat again, if dIF & P come up
Select Main output PI(propotional control) and
ON/OFF control OUT1
공장 설정 항목
Set key for 3~ seconds will memorize all
of value, and will display the current state.
Set key to go back to start-up.
Down limit of preset(range of preset temperature) : will
limit the preset temperature higher than specified value.
* With sensor A, limit will be decided by SCL value.
Select out2 AL(alarm)/tIM(period timer)control
PRESET OUT select ON/OFF
*Only for TH, IC, HUM, Asensor
*Refer to 11. PRESET OUT
PRESET OUT select ratio (1%~100%)
*Only for TH, IC, HUM, Asensor
*Refer to 11. PRESET OUT
Up Limit of display(-999~+999):
Limit of temperature to be displayed less than
specified value
Up Limit of display(-999~+999):
Limit of temperature to be displayed higher than
specified value .
Only for TH, IC,
HUM, A sensor
Only for A sensor
Appoint a decimal point(0~3):
ex) 0 : 100 / 1 : 10.0 / 2 : 1.00
Lock all of reset, except reset of temperature.
ON:lock / OFF:release
Change to Off mode in advance to release lock of
preset.
9. RESET ALARM OUTPUT (AUX OUTPUT)
10. SET PERIOD TIMER
