SAMWON ENG SU-105 Instrument for Automatic Control of Temperature Page 4/4

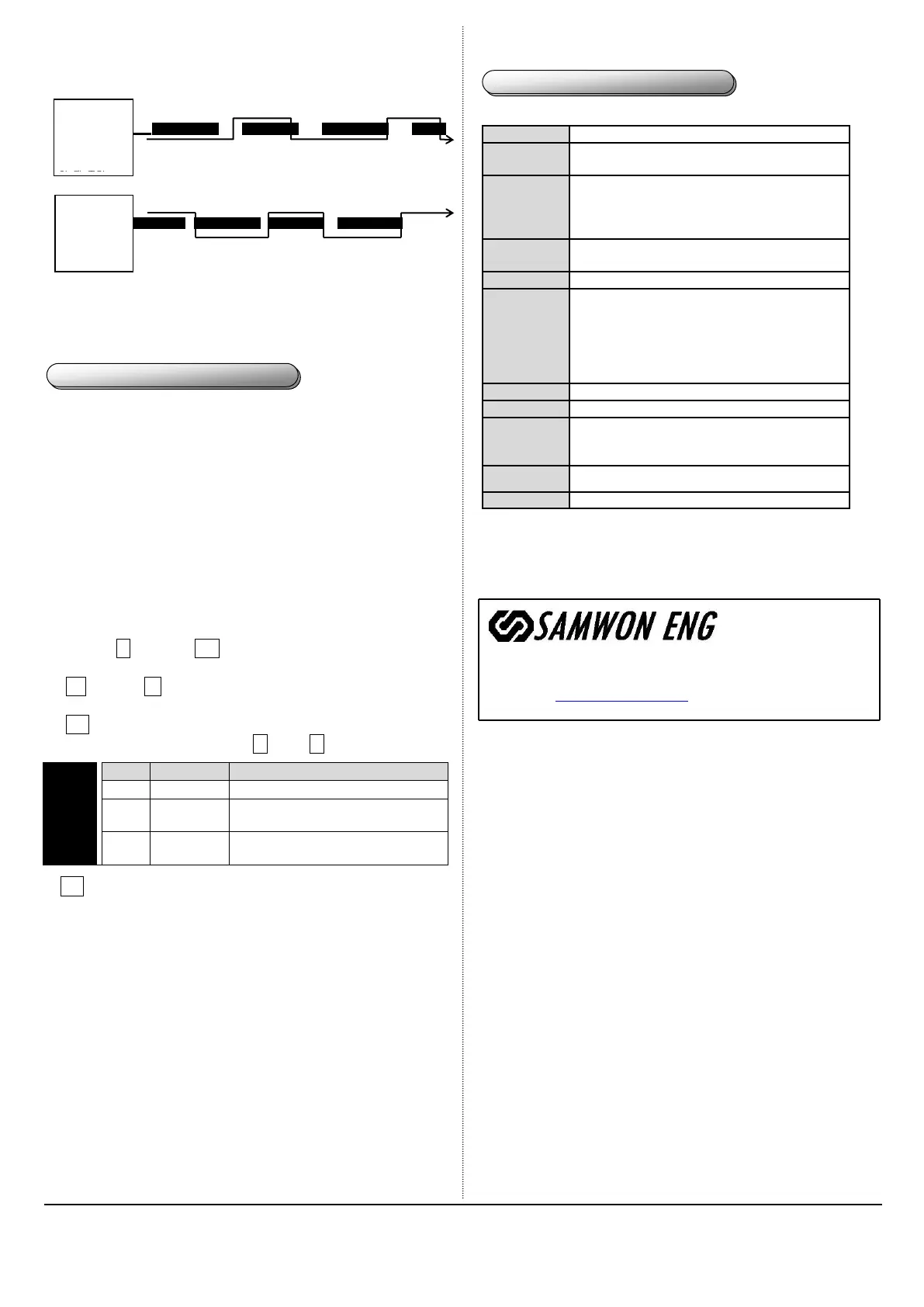

③ Explanation of Period Timer operating process
※ Period Timer will operate being isolated from the operation of
Thermometer.
※ Only for sendor TH, IC, HUM, A..
①When there ’ s an error in sensor during instrument ’ s operating, a damage
could be minimized by leveled output value of prior output value, instead
of shut-down.
②This PRESET OUT feature is available only in the condition of ON/OFF
control, On/OFF time should be within 1 second/18hours in average
respectively.
③Sampling leveled value for PRESET OUT is from the latest 5 ON/OFF
output value in the condition that output ON/OFF should be done 30 times
lately. At every 30 output, its leveled value would be re-calculated.
④How to PRESET OUT
▶ Press up key and set key both simultaneously for more than 3
seconds at current state.
▶ up key and set key both , until FIL appears. Release both key when
FIL comes up on display.
▶ set key several times to move to ot1.
▶ Change the set value by using Up(up),Down(dn) key.
FAC SET
ITEM
VALUE
EXPLANATION
ot1
onF
Select ON/OFFcontrol.
Po
on
Turn on PRESET OUT feature.
(Default :OFF)
Por
1~100%
Set the ratio of value to be leveled.
(Default :90%)
▶ set key for more than 3 seconds to memorize the value.
▶Since then, this feature could be used after setting controller with
ON/OFF control.
④If ” Pro” is displayed during the normal operation of instrument,
please do the needed arrangement, as it says that there’ s something
wrong in sensor and PRESET OUT is running. After fixing sensor, PRESET
OUT will stop itself and the instrument will work normally.
Power Currency
AC100~220V (50/60Hz both) ±10%
Power
consumption
About less than 5VA
Input sensor
Thermo Couple : K/T(CA)
allowed resist in wiring less than 100 Ω
Resistance Temperature Detector : PT100 Ω
allowed resist in wiring less than 5 Ω
Indication level
Thermo Couple : ±0.5% +1digit of indicated value,
Resistance Temperature Detecto :±0.2%
Variation(dIF)
0.1℃ ~ 25.0℃
Control Output
Output from contact point of relay :
AC250V 5A(resist load)
Durability of contact point :
higher than 300 thousands(rating load)
Control operation
PI control or ON/OFFcontrol Selectable
Set method
Digital by using Increase/decrease key
Other feature
Correction of sensor input, delayed ON timer, selectable
direction Timer for Defreeze, Correction of defected
sensor
Temperature
around
0℃ ~ 50℃
Humidity around
Less than 85% RH
11. RESET of PRESET OUT
12. Product Specification
(주)삼원 ENG 의 다양한 전제품은 불량율 0.1%에 도전하고 있습니다.
HQ/factory : 703-4, HwamokDong, Kimhae-city, KyungNam
TEL:055-321-3030 (代) FAX:055-321-3060
Website: http://www.31eng.co.kr E-Mail : 31eng@paran.com
15min. Off 5min. On 15min. Off 5min.
On
Period timer
output at,
Tim = Min
odr = oFF
ton = 5
toF = 15
일 때 주기
타이머 출력
5sec. ON 15sec. OFF 5sec. ON 15sec. OFF
Period Timer
output at,
Tim = SEC
odr = on
ton = 5
toF = 15
일 때 주기
타이머 출력
