S&C Mark V Instructions For Field Assembly And Installation

S&C Circuit-Switchers - Mark V Grounding Switches - 70,000 Amperes Momentary
Outdoor Transmission
I
With 90-degree opening blades
perpendicular
to bases when open
For Circuit-Switchers rated
230 kv
1 INSTALLATION - Continued
I
Outboard Bearing Assem
(may also be mounted
on
a separate base)
Interphase Drive Lmk
A4
Plan View
End View

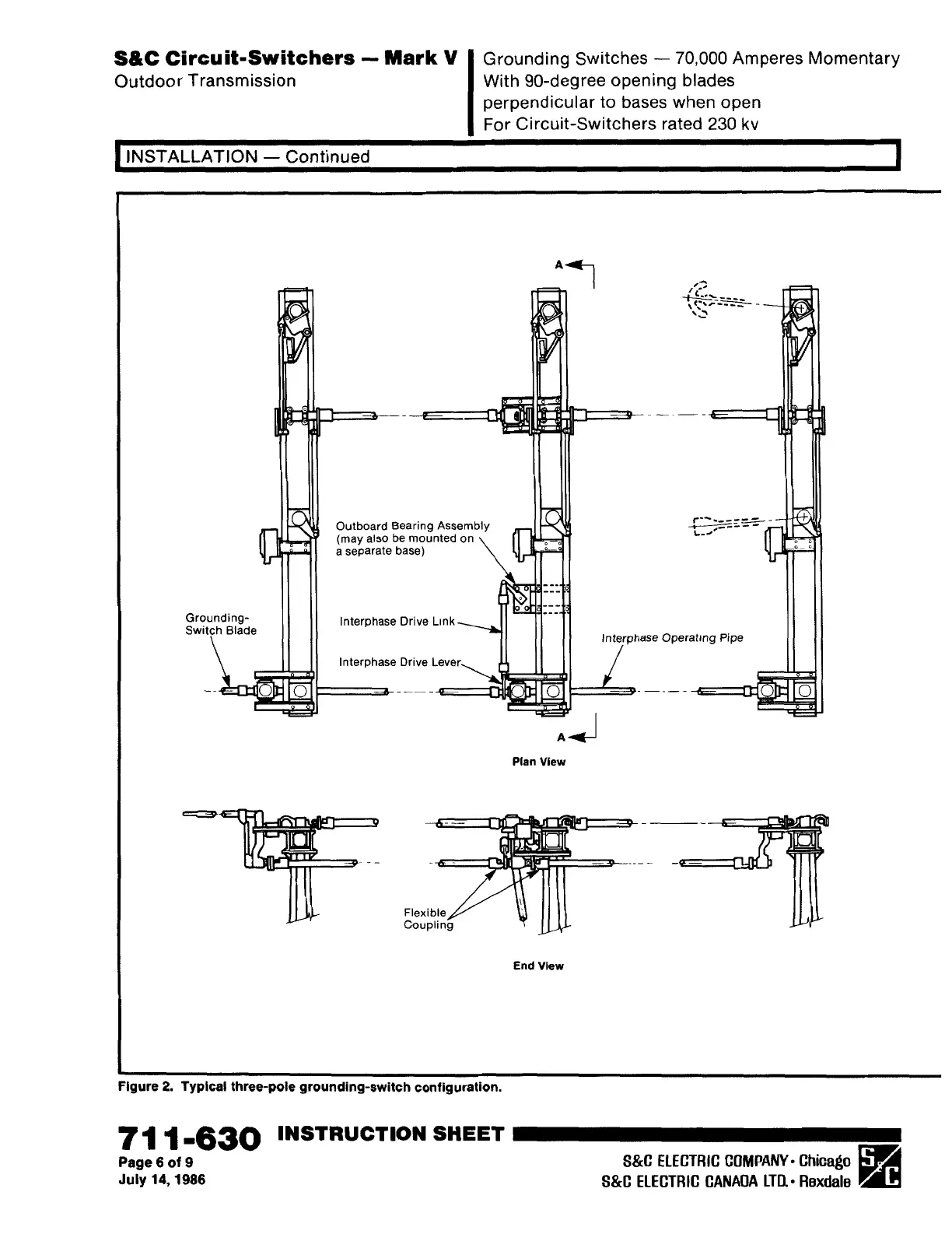

Figure 2. Typical three-pole grounding-switch configuration.
71 1430 INSTRUCTION SHEET
Page 6 of 9 S&C ELECTRIC COMPANY. Chicago
July 14,1986 S&C ELECTRIC CANADA LTII. Rexdale
