1
INSTALLATION
-
Continued
I
Contact (closed)
Roller
Inner Gear
Cam (lowered
toward adjacent
spring)
Adjacent Spring

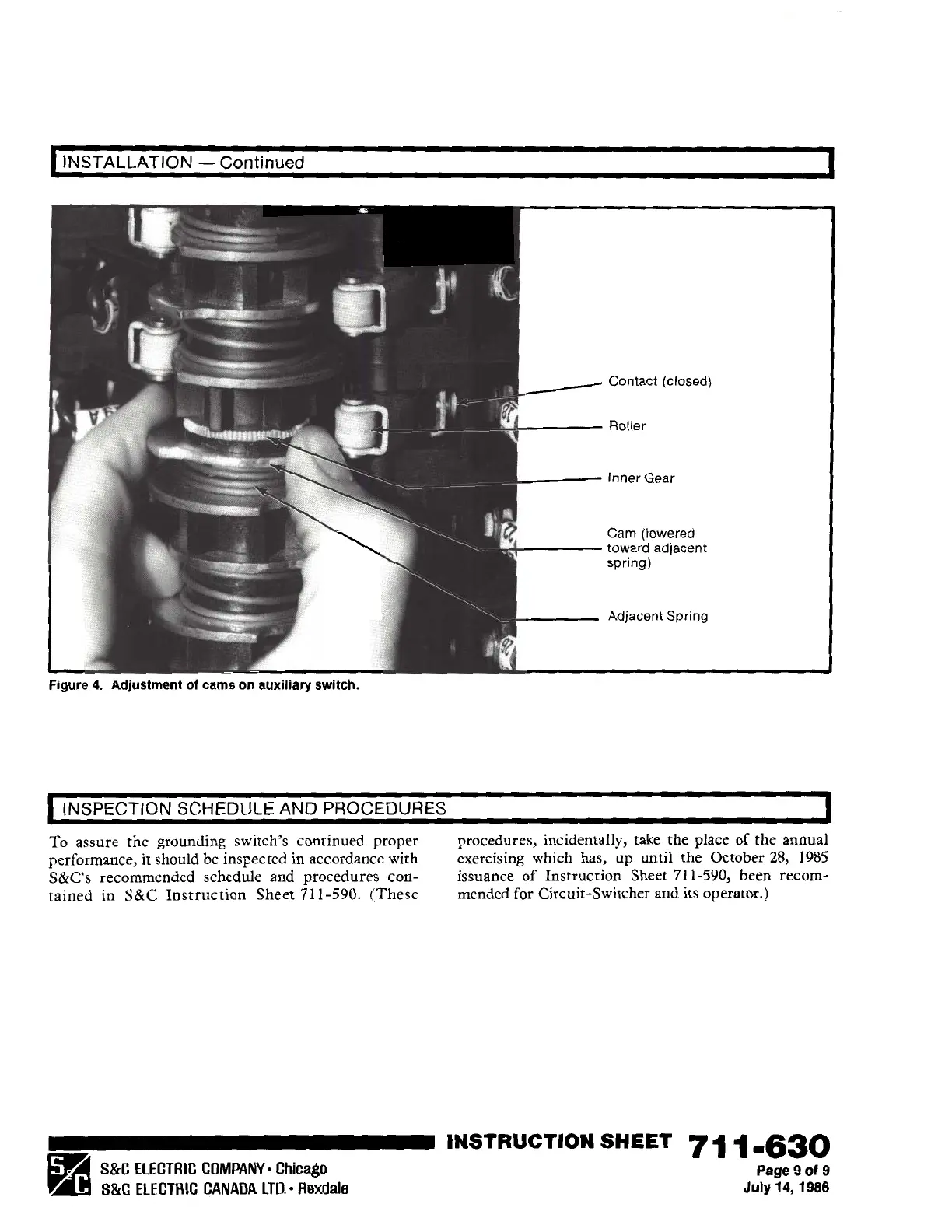

Figure 4. Adjustment of cams on auxiliary switch.
INSPECTION SCHEDULE AND PROCEDURES
To assure the grounding switch’s continued proper
procedures, incidentally, take the place of the annual
performance, it should be inspected in accordance with
exercising which has, up until the October 28, 1985
S&C’s recommended schedule and procedures
con-
issuance of Instruction Sheet 711-590, been
recom-
tained in S&C Instruction Sheet
711-590.
(These
mended for Circuit-Switcher and its operator.)
q
INSTRUCTION SHEET
7
11430
S&C ELECTRIC COMPANY l
Chicago
Page 9 of 9
S&C ELECTRIC CANADA
LTD..
Rexdale
July
14,1986
