SandenVendo V21 621 - Page 198

V21 Parts & Service Manual
All V21 Identified Equipment
REV A – 10/2013
P/N: 1230417

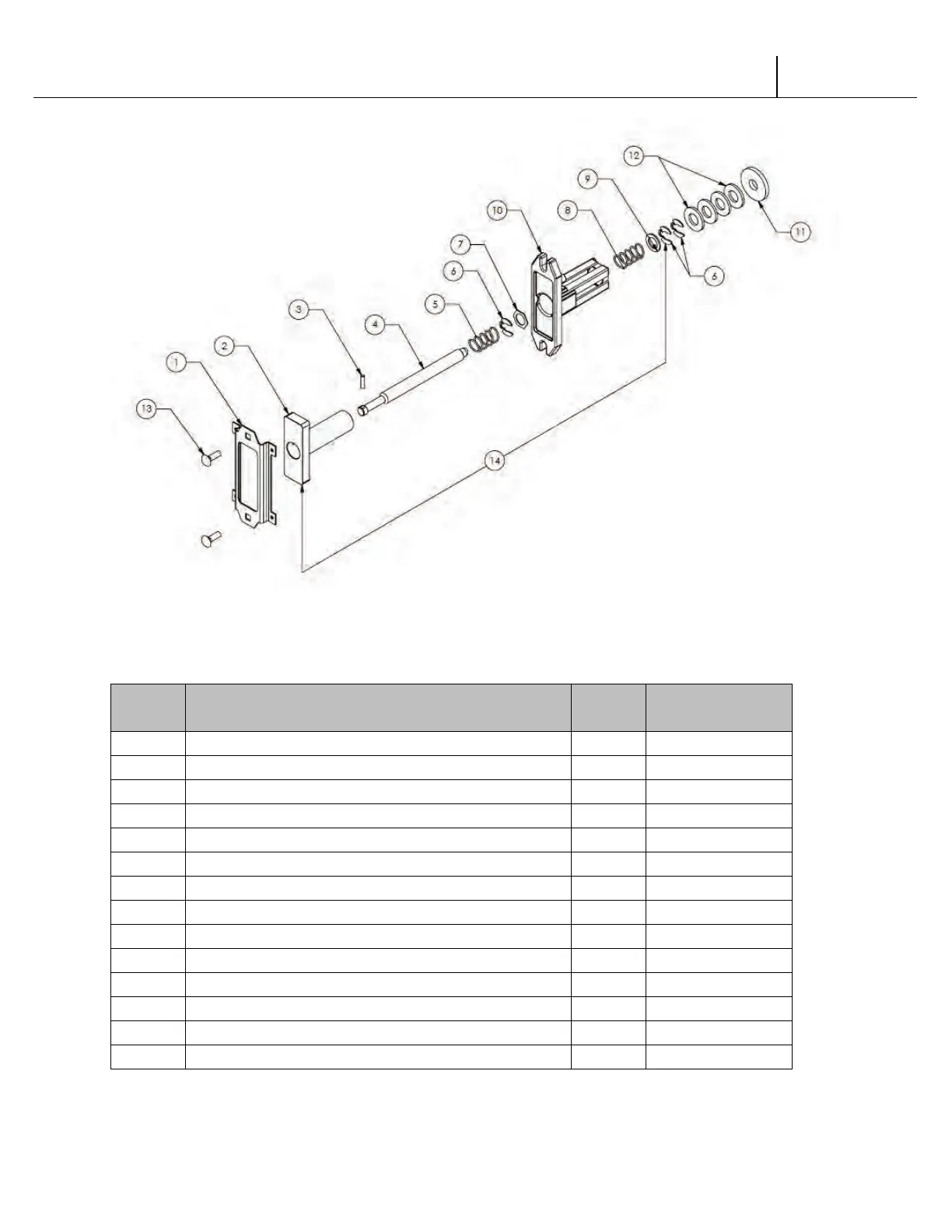

TRADE LOCK ASSEMBLY
ITEM
NO.
DESCRIPTION
QTY
REQ
PART NO.
1
BRKT, SECURITY, LOCK
1
1143402
2
T-HANDLE
1
1002392
3
PIN - STUD
1
387601
4
LOCK STUD - QUICKER LOCK
1
1049724
5
SPRING
1
389691
6
E - RING RETAINER
3
388589
7
HEX WASHER
1
387600
8
SPRING - HEAVY
1
389691
9
FLAT WASHER
1
387718
10
T-HANDLE - FLANGE
1
1002384
11
VAPOR SEAL
1
388132
12
WASHER 1/2"
4
V801023
13
1/4" X 3/4" CARRIAGE BOLT
1
V801434
14
T - HANDLE ASSY.
1
1002635
