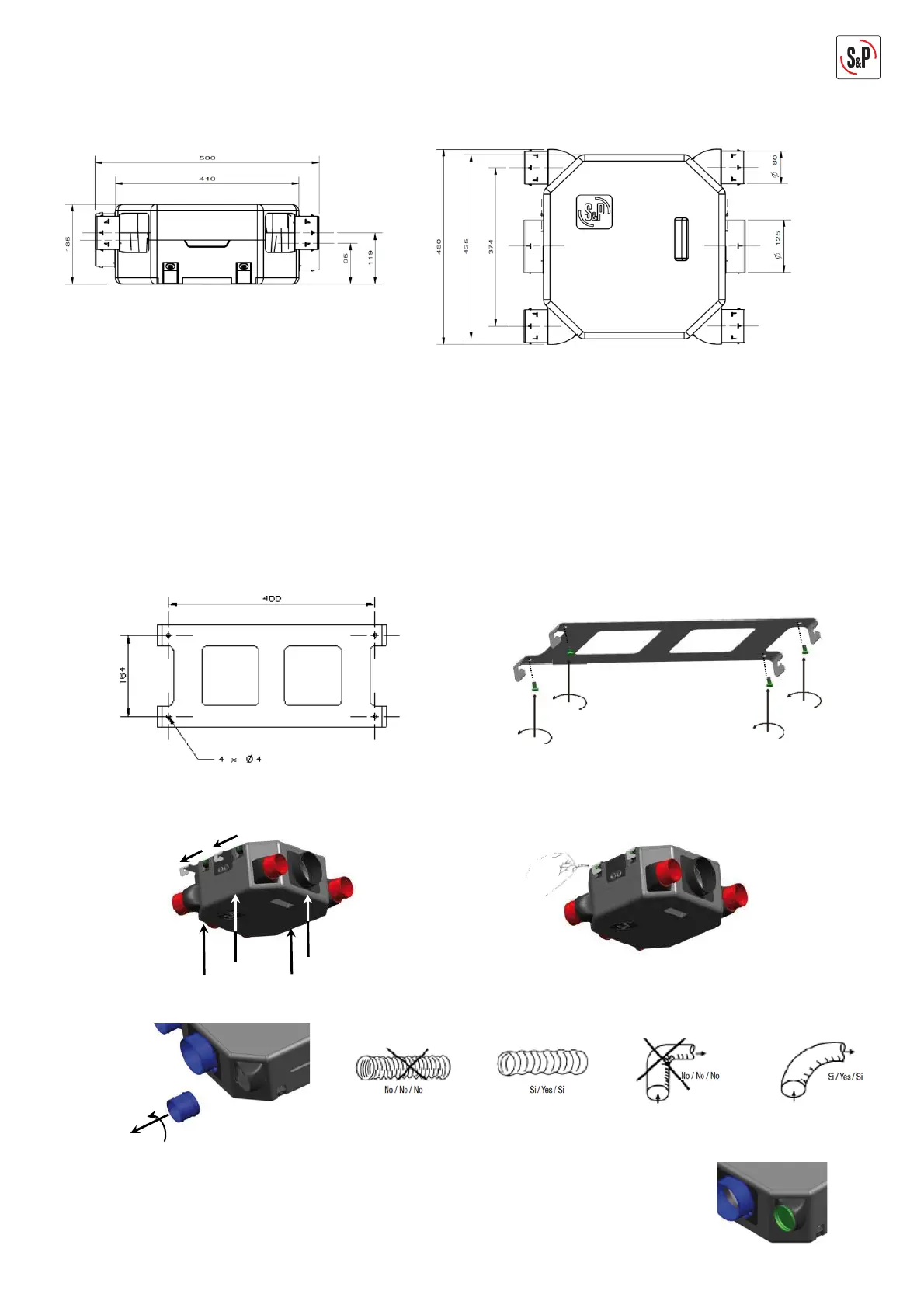

2.3. DIMENSIONS AND WEIGHT
WEIGHT: 3 kilos
Total dimensions: 500 mm x 460 mm x 185 mm
3. INSTALLATION
The OZEO FLAT H serie is specially designed for installation behind false ceilings, but it can be installed on any wall, either horizontal, vertical
or at an angle.
3.1. FIXING
The equipment has a support to facilitate mounting.
1. Use the support to mark the drill points.
2. Fix the support to the wall/ ceiling.
3. Support the fan in the support guides and fix the screws to secure the unit to the support.
3.2. CONNECTING DUCTWORK
For ease of assembly, disengage the spigot from the unit, fix the duct to the spigot with flanges and refit the
spigot to the unit. Those spigots not used must be covered with the covers supplied.
