S&P REB 10 - Wiring Diagrams; Wiring Diagram 1; Wiring Diagram 2; Wiring Diagram 3

5

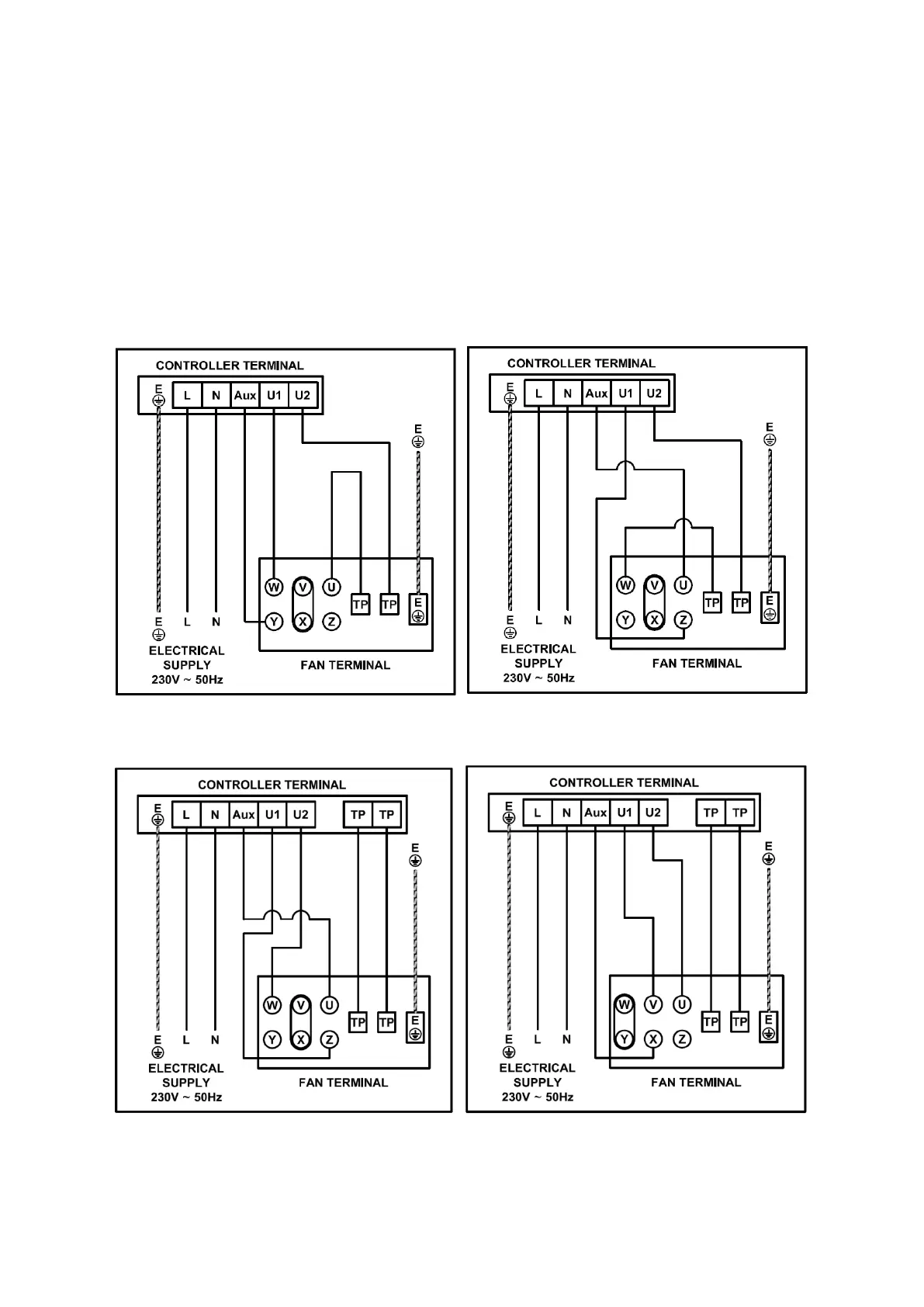

WIRING DIAGRAMS FOR ELECTRONIC SPEED CONTROLLERS (SINGLE PHASE 230V ~ 50Hz)
L – Supply Live 230V 50Hz
N – Supply Neutral
U1 – Motor Control Variable Neutral
U2 – Motor Live 230V ~ 50Hz
A – Auxiliary Permanent Neutral
E – Motor Supply Earth (E)
WIRING DIAGRAM 1 WIRING DIAGRAM 2
WIRING DIAGRAM 3 WIRING DIAGRAM 4a
