ENGLISH
CONSTRUCTION

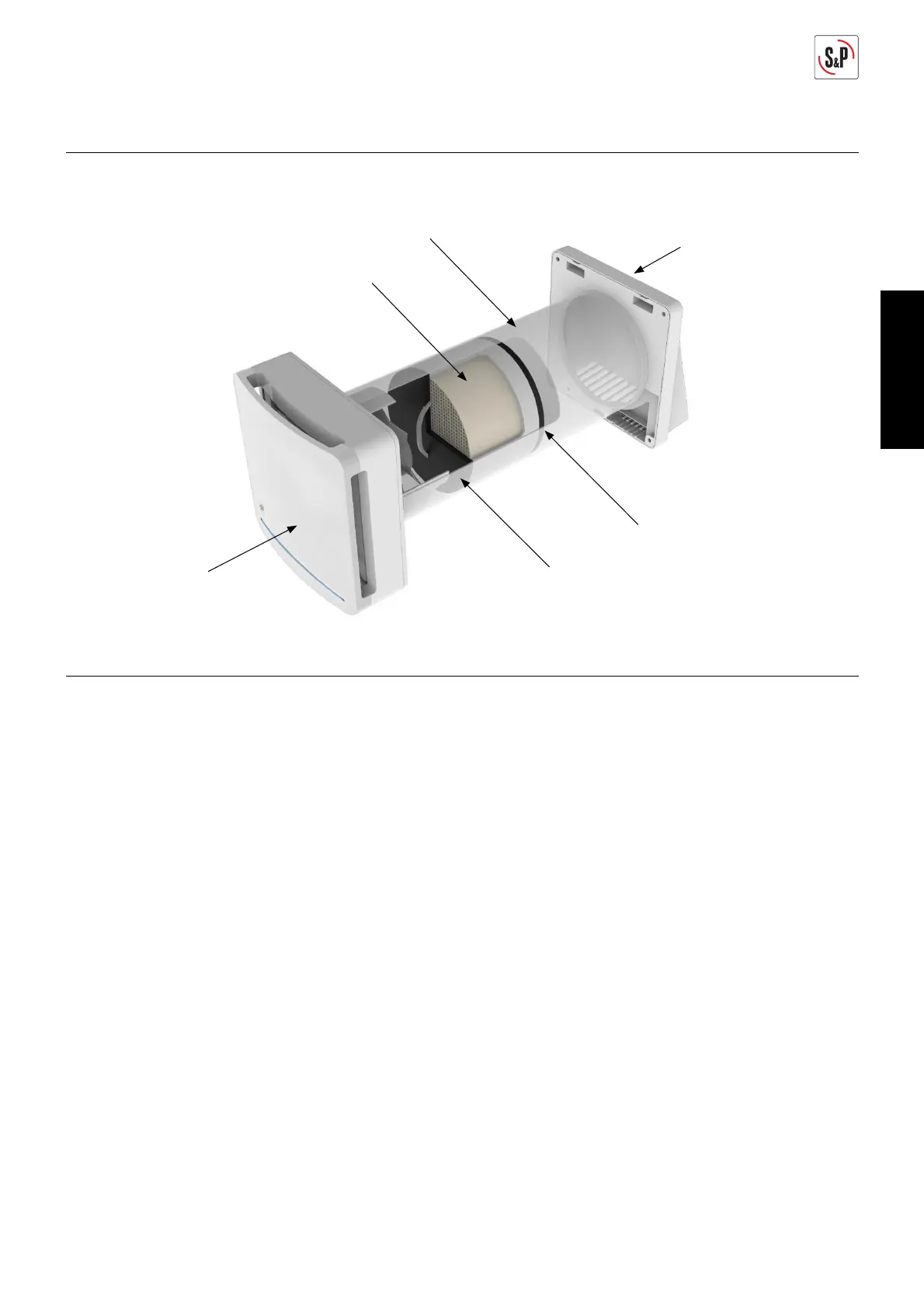

The product is formed by a main operating unit with wall attachment which will be placed inside the room, an integrated
tube containing the ceramic exchanger and fi lters, an outside feeder with wall attachment.
Ceramic exchanger
Integrated tube
Outside fi lter
Inside fi lter
Outside feeder with
wall attachment
Main unit with wall
attachment
INSTALLATION
The product must only be installed by qualifi ed staff. Make sure that the room’s mains network is disconnected before ca-
rrying out the electrical assembly operations.
The device must not be installed near to curtains, blinds, etc. as these could jeopardise its correct operation.
Make sure that, once installed, the blades of the impeller are placed at least 2.30m away from the fl oor. If installing several
devices, the distance between each product must be at least 3 metres.
Before mounting the product read the instruction manual carefully and make sure you have all the equipment you need for
the installation.
Follow the instructions of this manual carefully.
1 ASSEMBLY
After identifying the area in which you intend to install the product, mark the centre of the through-hole to be made in the
wall.
Make sure that, with respect to the centre of the hole for the integrated tube, there is a free space on the inside and outside
wall for a radius of 15cm, which corresponds to the product’s dimensions. Make sure that inside this area there is no inter-
ference with walls and non-removable objects.
Hole diameter for installation is:
• RESPIRO 100 Ø 100 mm
• RESPIRO 150 Ø 160 mm
The hole made in the wall must be a through hole with a slope of 1°- 2° towards the outside. To use the integrated tube
provided, the wall must not be more than 500mm thick. To install the product, the receiving wall cannot be less than 250mm
thick. Once you have made the though hole in the wall, position the integrated tube (6) inside it.
