33
ENGLISH

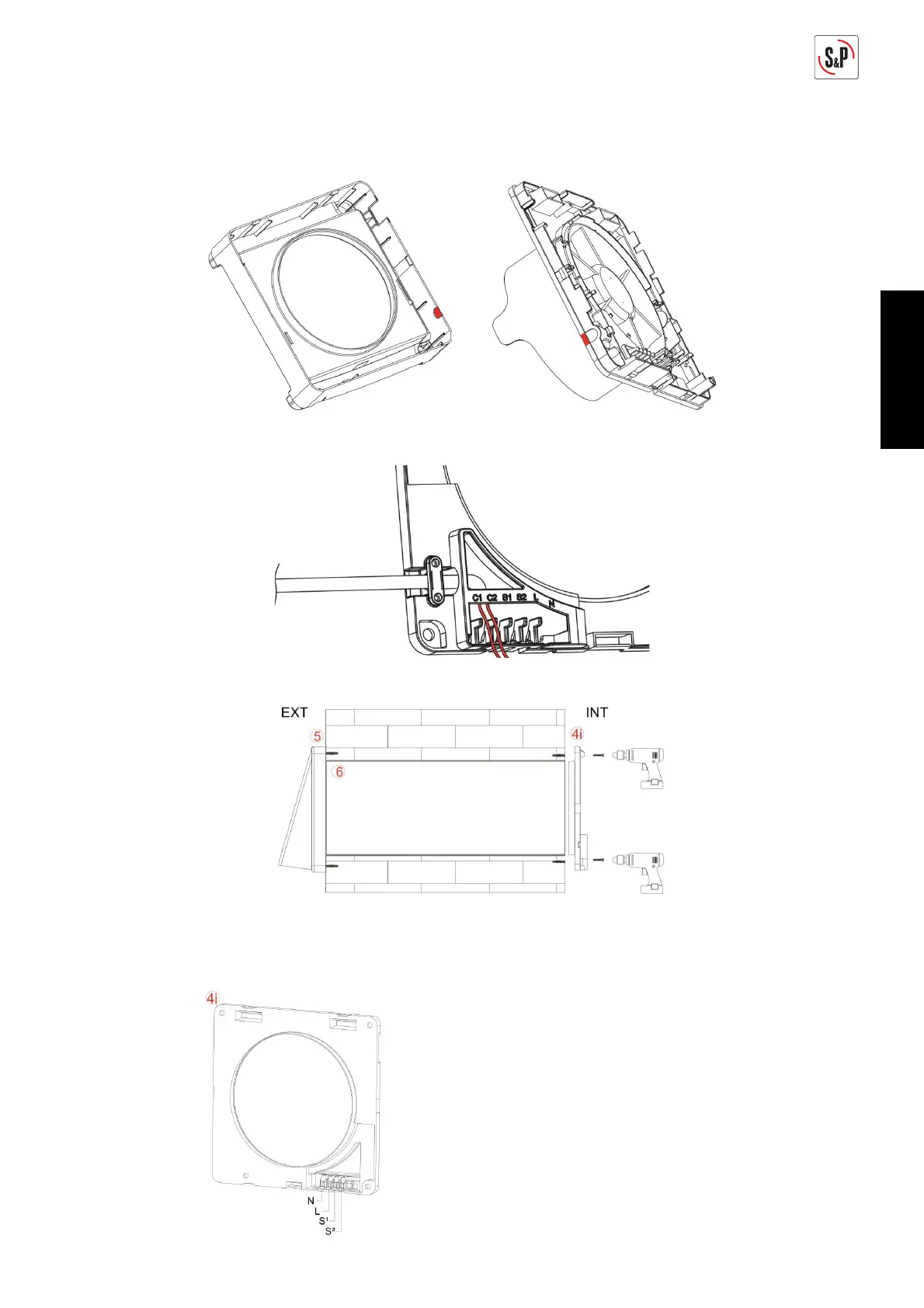

Connection of an outside power cable
Break the plastic tabs indicated in the below images.
Extract the terminal block from the inside wall fi xture and pass the cables through the base, fi xing the cable tie with the
screws provided.
Fix the inside wall fi xture (4i) to the wall and execute the electrical connections as described in the following paragraphs.
2a) RESPIRO 100 / RESPIRO 150
Direct connection
Before making the connection, the power cables (live and neutral) must be situated in the area of the outlet from the wall.
Take the inside wall fi xture (4i) and the tools
needed to connect the mains network to the ter-
minal block.
Properly connect and secure the mains power
cables to the terminal block. “N” and “L” indi-
cation.
