Sandstrom S22FED12 User Manual

Connections
15
GB

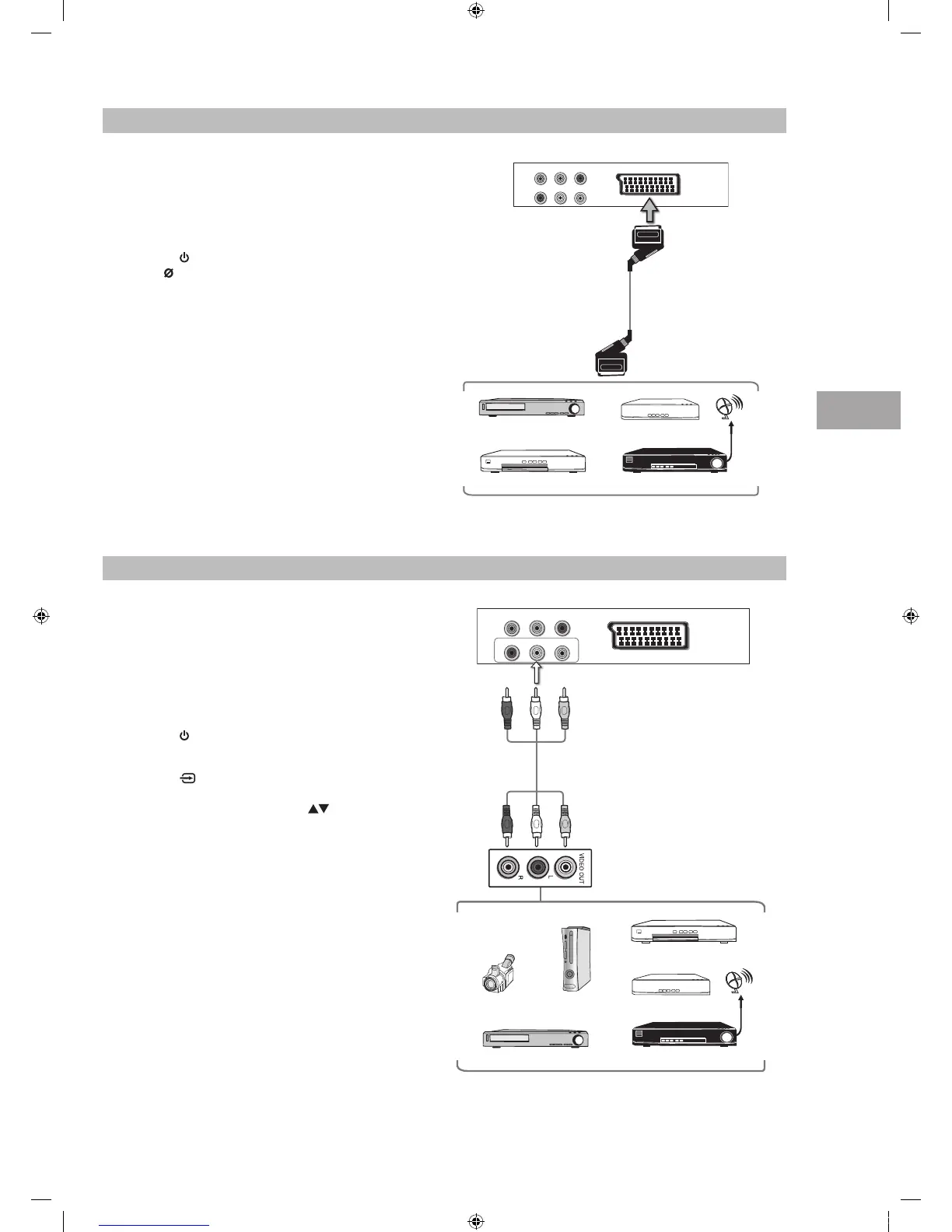

Connecting an AV Device Using a SCART Cable
1. Use a SCART cable to connect the TV’s SCART input
socket to an external AV device’s SCART output
socket.
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the
button on the right side panel of the TV
or the
button on the remote control to turn on your
TV.
4. The TV will change the input source to SCART
automatically once the AV device is switched on.
Connecting an AV Device Using Composite Cable
1. Use an AV cable to connect the TV’s AUDIO(L/R)
/ VIDEO input sockets to the external AV device’s
composite audio / video output sockets.
(VIDEO = yellow, Audio Left = white, and
Audio Right = red)
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the
button on the right side panel of the
TV or on the remote control to turn on your TV.
4. Press the
button on the right side panel of the
TV or the INPUT button on the remote control
to display the Source List. Use the
buttons
to select AV and then press the OK button to
confirm.
Video Camera
VCR
DVD Player / Recorder
Set-top Box
Game Console
AV Cable
(not included)
Yellow (Video)
Red (R)
White (L)
Yellow (Video)
Red (R)
White (L)
Y PB PR
R L VIDEO
SCART
Rear Right Bottom View of TV
Satellite Receiver
Satellite
antenna
cable
Y PB PR
R L VIDEO
SCART
SCART Cable
(not included)
VCR
DVD Player / Recorder
Set-top Box
Satellite Receiver
Satellite
antenna
cable
Rear Right Bottom View of TV
