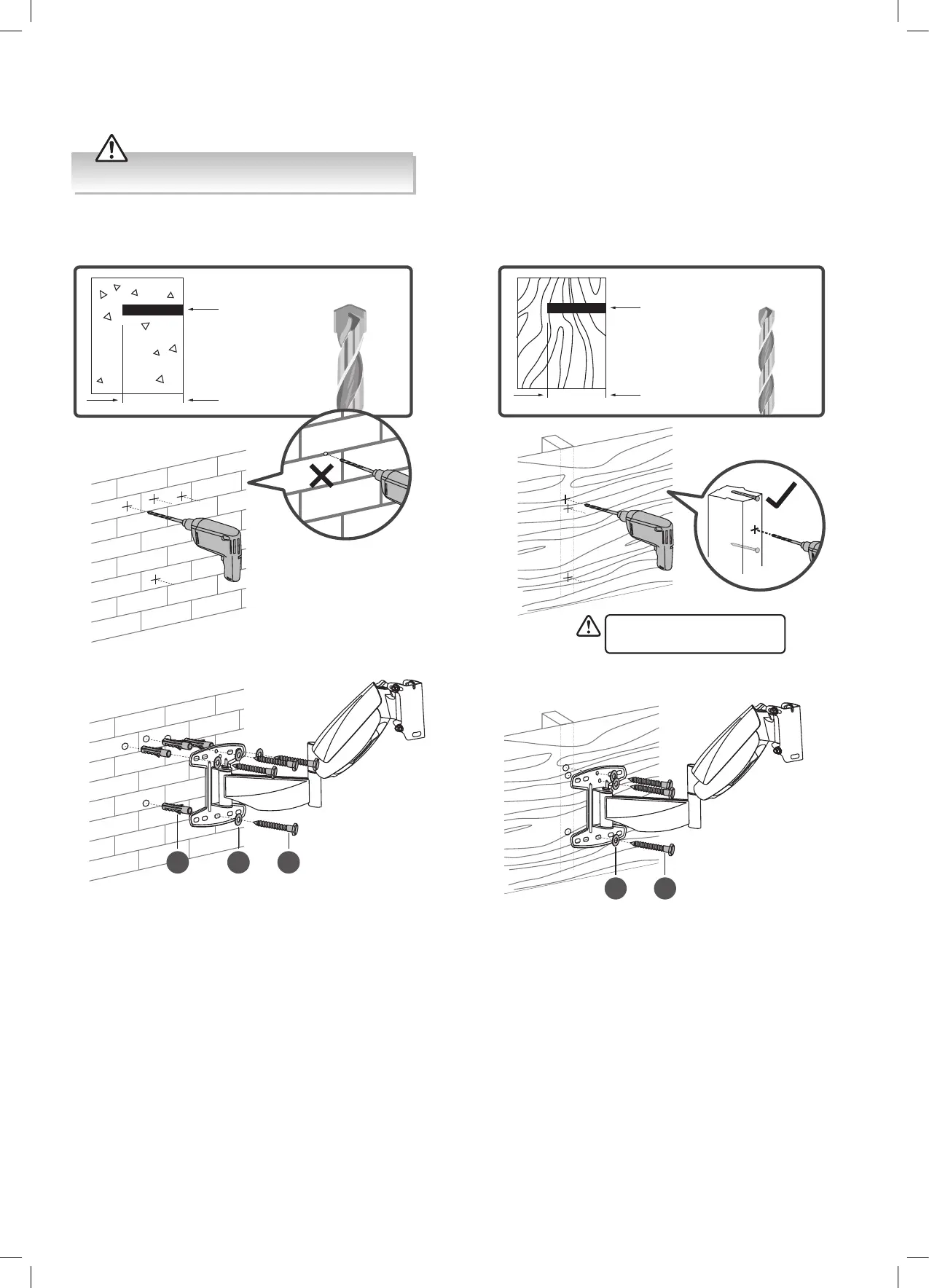

Fixing the Wall Mount to the wall
For mounting to a stud wall you will need a Ø 4.5mm wood drill bit, or for masonry walls you will need a Ø 10mm masonry drill bit.
• Parts are heavy; 2 people are required for installation.
ø10mm
60mm
ø4.5mm
60mm
Ensure mounting screws are in
the centre of the timber stud.
A9
&
A10
A3 A1
A2 A3 A1
Masonry wall Stud wall
1. Using a Ø10mm masonry drill bit, drill 4 holes to a depth
of 60mm. Make sure you don’t drill into the cement
between the bricks.
2. Insert a wall plug into each hole.
3. 2 people are required for the next step, one to hold the
mount against the wall and one to insert the screws.
4. Slide a washer (A3) onto a screw (A1) then use a Socket
Set (not supplied) to screw the screw into the wall. Repeat
for all 4 screws.
1. Using a Ø4.5mm wood drill bit, drill 3 holes to a depth of
60mm. Make sure the holds are in the centre of each stud.
2. 2 people are required for the next step, one to hold the
mount against the wall and one to insert the screws.
3. Slide a washer (A3) onto a screw (A1) then use a Socket
Set (not supplied) to screw the screw into the wall. Repeat
for all 3 screws.
Sandstrom Easy Glide Full Motion TV Mount SFMGM18 Manual.indd 5 17/03/2020 08:01
