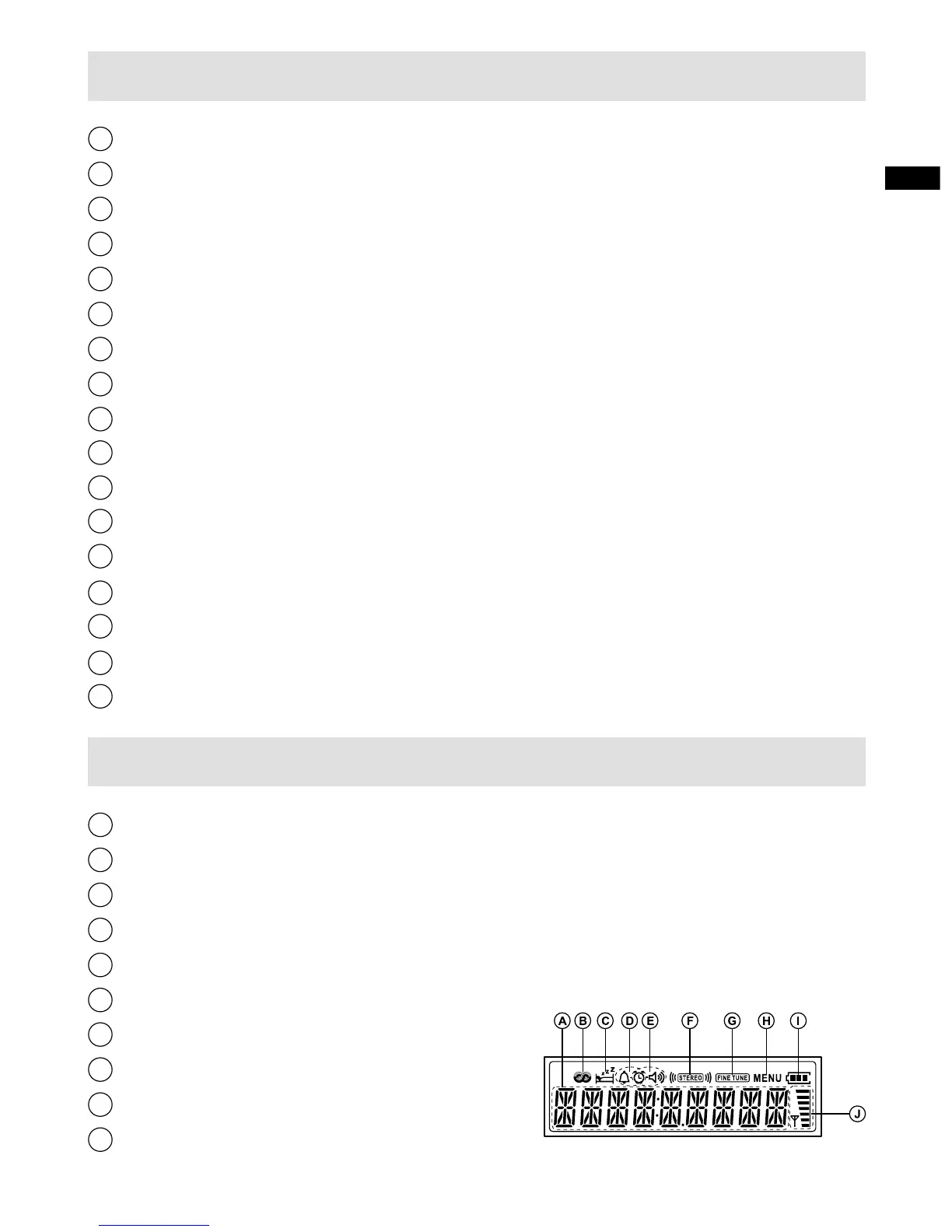

Sangean PR-D15 - Controls and Display Overview; Main Controls Identification; Input;Output Ports and Connections; LCD Display Indicators Explained

GB
5
Speaker
LCD display
Power / Sleep button
Charging LED indicator
Band button
Alarm button
Menu / Info button
Tuning / Auto seek / Select / Fine tune knob
Volume / tone control
Preset buttons
Antenna
Battery compartment
FM stereo / mono switch
AUX in socket
Earphone socket
DC input socket
Handle
Controls
2
3
1
5
7
17
16
15
14
13
12
11
10
9
4
6
8
Frequency / Time
RDS indicator
Sleep / Snooze indicator
Buzzer alarm indicator
Radio alarm indicator
Stereo indicator
Fine tune indicator
Menu indicator
Battery life indicator
Signal level indicator
LCD display
B
C
E
G
D
F
A
J
I
H
