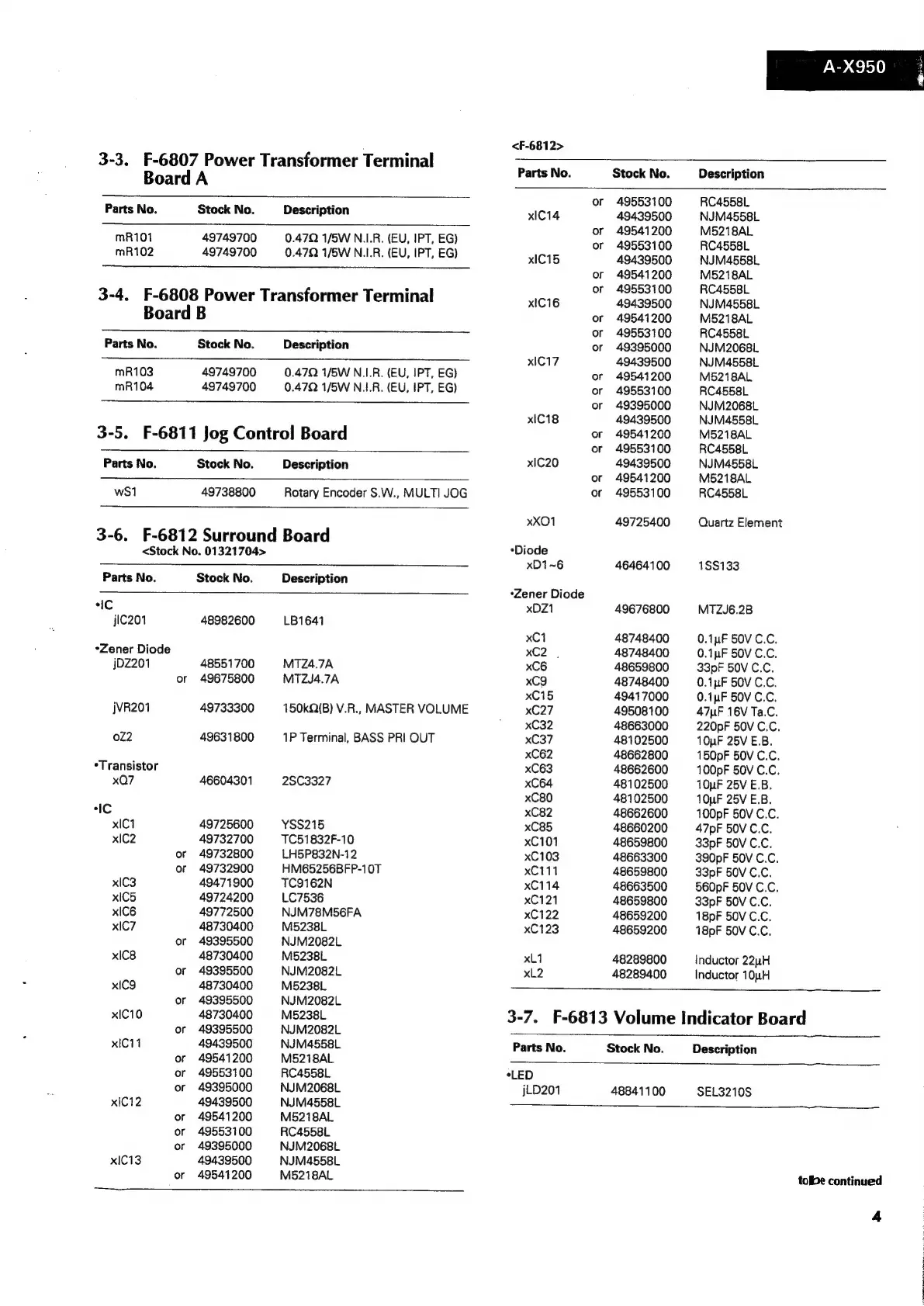

Sansui A-X950 - Page 5

3-3. F-6807 Power Transformer Terminal
Board A
Parts No. Stock No. Description
mR101 49749700 0.47Q 1/5W N.I.R. (EU, IPT, EG)
mR102 49749700 0.472 1/5W N.I.R. (EU, IPT, EG)
3-4. F-6808 Power Transformer Terminal
Board B
Parts No. Stock No. Description
mR103 49749700 0.47Q 1/5W N.I.R. (EU, IPT, EG)
mR104 49749700 0.47Q 1/5W N.1.R. (EU, IPT, EG)
3-5. F-6811 Jog Control Board
Stock No.
Parts No. Description
ws1 49738800 Rotary Encoder S.W., MULTI JOG
3-6. F-6812 Surround Board
<Stock No. 01321704>
Parts No. Stock No. Description
“IC
jlC201 48982600 LB1641
*Zener Diode
j0Z201 48551700 MTZ4.7A
or 49675800 MTZJ4.7A
jVR201 49733300 150kQ(B) V.R., MASTER VOLUME
0Z2 49631800 1P Terminal, BASS PRI OUT
*Transistor
xQ7 46604301 28C3327
IC
xlC1 49725600 YSS215
xlC2 49732700 TC51832F-10
or 49732800 LH5P832N-12
or 49732900 HM65256BFP-10T
xiIC3 49471900 TC9162N
xiC5 49724200 LC7536
xIC6 49772500 NJM78M56FA
xlC7 48730400 M5238L
or 49395500 NJM2082L
xIC8 48730400 M5238L
or 49395500 NJM2082L
xiC9 48730400 M5238L
or 49395500 NJM2082L
xlC10 48730400 M5238L
or 49395500 NJM2082L
x!C11 49439500 NJM4558L.
or 49541200 M52718AL
or 49553100 RC4558L
or 49395000 NJM2068L
xIC12 49439500 NJM4558L.
or 49541200 M5218AL
or 49553100 RC4558L
or 49395000 NJM2068L
xIC13 49439500 NJM4558L
or 49541200 M5218AL
<F-6812>
Parts No. Stock No. Description
or 49553100 RC4558L
xlC14 49439500 NJM4558L
or 49541200 M5218AL
or 49553100 RC4558L
xIC15 49439500 NJM4558L.
or 49541200 M5218AL
or 49553100 RC4558L.
xlC16 49439500 NJM4558L
or 49541200 M5218AL
or 49553100 RC4558L
or 49395000 NJM2068L
xlC17 49439500 NJM4558L
or 49541200 M5218AL.
or 49553100 RC4558L
or 49395000 NJM2068L.
xlC18 49439500 NJM4558L
or 49541200 M5218AL
or 49553100 RC4558L
xlC20 49439500 NJM4558L
or 49541200 M5218AL
or 49553100 RC4558L
xXO1 49725400 Quartz Element
*Diode
xD1~6 46464100 1S$133
*Zener Diode
xDZ1 49676800 MTZJ6.2B
xCi 48748400 0.1pF 50V C.C.
xC2_. 48748400 O.1pF 50V C.C.
xC6 48659800 33pF 50V C.C.
xC9 48748400 0.1pF 50V C.C.
xC15 49417000 0.1pF 50V C.C.
xC27 49508100 47uF 16V Ta.C.
xC32 48663000 220pF 50V C.C.
xC37 48102500 10uF 25V E.B.
xC62 48662800 150pF 50V C.C.
xC63 48662600 100pF 50V C.C.
xC64 48102500 10pF 25V E.B.
xC80 48102500 10uF 25V E.B.
xC82 48662600 100pF 50V C.C.
xC85 48660200 47pF 50V C.C.
xC101 48659800 33pF 50V C.C.
xC103 48663300 390pF 50V C.C.
xC111 48659800 33pF 50V C.C.
xC114 48663500 560pF 50V C.C.
xC121 48659800 33pF 50V C.C.
xC122 48659200 18pF 50V C.C.
xC123 48659200 18pF 50V C.C.
xL1 48289800 Inductor 22uH
xL2 48289400 Inductor 104H
3-7. F-6813 Volume Indicator Board
Parts No. Stock No. Description
“LED
jLD201 48841100 SEL3210S
tobe continued
4
