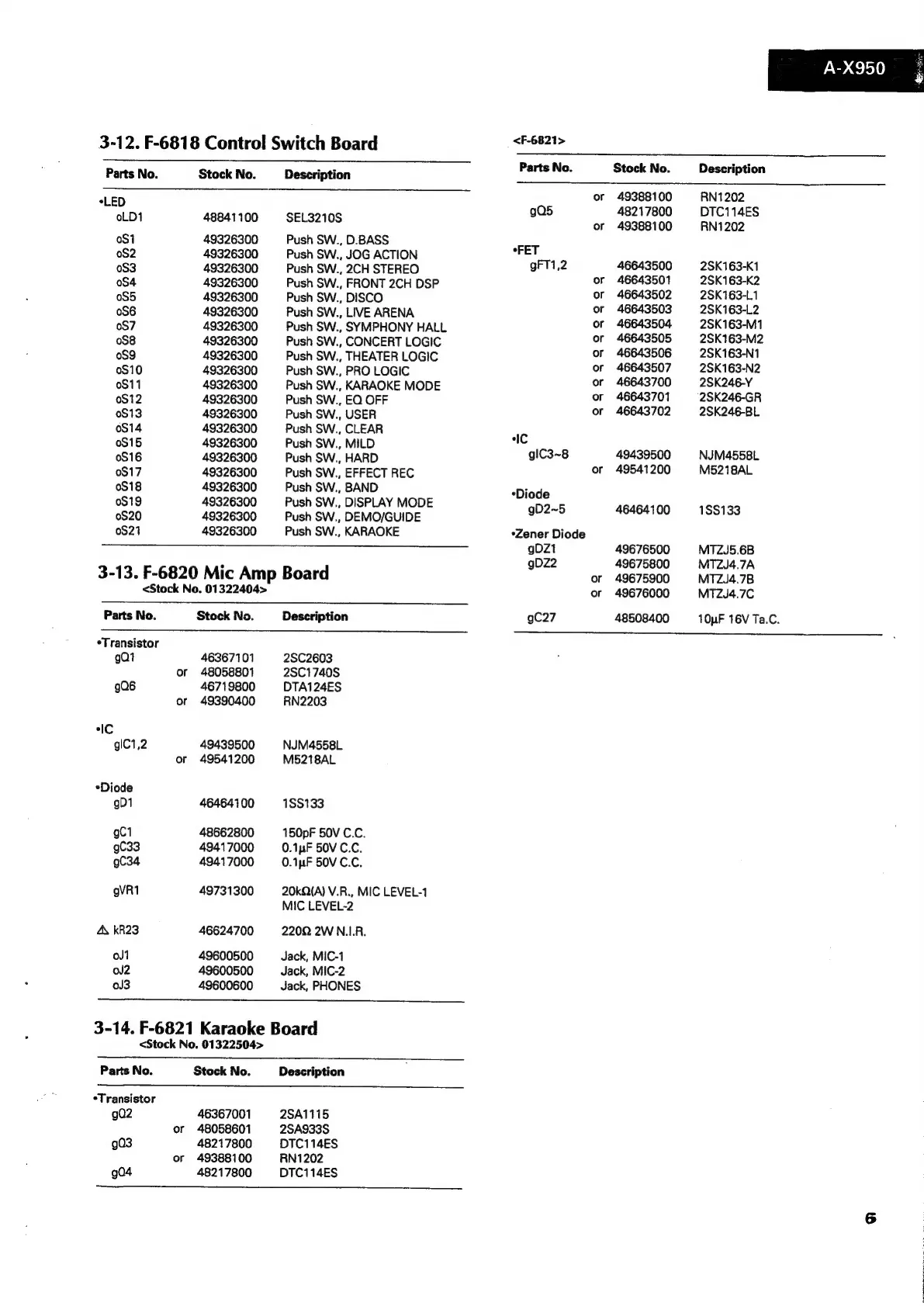

3-12. F-6818 Control Switch Board
Parts No. Stock No. Description
*LED
oLD1 48841100 $EL3210S
oS 49326300 Push SW., D.BASS
oS2 49326300 Push SW., JOG ACTION
oS3 49326300 Push SW., 2CH STEREO
oS4 49326300 Push SW., FRONT 2CH DSP
o$5 49326300 Push SW., DISCO
oS6 49326300 Push SW., LIVE ARENA
oS7 49326300 Push SW., SYMPHONY HALL
oS8 49326300 Push SW., CONCERT LOGIC
oS9 49326300 Push SW., THEATER LOGIC
0S10 49326300 Push SW., PRO LOGIC
0S11 49326300 Push SW., KARAOKE MODE
0$12 49326300 Push SW., EQ OFF
0$13 49326300 Push SW., USER
0$14 49326300 Push SW., CLEAR
0S15 49326300 Push SW., MILD
oS16 49326300 Push SW., HARD
0$17 49326300 Push SW., EFFECT REC
018 49326300 Push SW., BAND
oS19 49326300 Push SW., DISPLAY MODE
0S20 49326300 Push SW., DEMO/GUIDE
0821 49326300 Push SW., KARAOKE
3-13. F-6820 Mic Amp Board
<Stock No. 01322404>
Parts No. Stock No. Description
*Transistor
gQ1 46367101 2SC2603
or 48058801 2S8C1740S
gQ6 46719800 DTA124ES
or 49390400 RN2203
IC
glC1,2 49439500 NJM4558L
or 49541200 M5218AL
*Diode
gD1 46464100 18$133
gC 48662800 150pF 50V C.C.
gC33 49417000 0.14F 50V C.C.
9C34 49417000 —0.1F SOVC.C.
gVR1 49731300 20kQ(A) V.R., MIC LEVEL-1
MIC LEVEL-2
AX kR23 46624700 220Q 2W N.LR.
oJ1 49600500 Jack, MIC-1
oJ2 49600500 Jack, MIC-2
oJ3 49600600 Jack, PHONES
3-14, F-6821 Karaoke Board
<Stock No. 01322504>
Parts No. Stock No. Description
*Transistor
gQ2 46367001 2SA1115
or 48058601 2SA933S
gQ3 48217800 DTC114ES
or 49388100 RN1202
gQ4 48217800 DTC114ES
<F.6821>
Parts No. Stock No. Description
or 49388100 RN1202
gQ5 48217800 DTC114ES
or 49388100 RN1202
*FET
gFT1,2 46643500 2SK163-K1
or 46643501 2SK163-K2
or 46643502 2SK163-L1
or 46643503 2SK163-L2
or 46643504 2SK163-M1
or 46643505 2SK163-M2
or 46643506 2SK163-N1
or 46643507 2SK163-N2
or 46643700 2SK246-Y
or 46643701 2SK246-GR
or 46643702 2SK246-BL.
“iC
giC3~8 49439500 NJM4558L
or 49541200 M5218AL
*Diode
gD2~5 46464100 188133
*Zener Diode
gDZ1 49676500 MTZJ5.6B
gDZ2 49675800 MTZJ4.7A
or 49675900 MTZJ4.7B
or 49676000 MTZJ4.7C
gC27 48508400 10uF 16V Ta.C.
