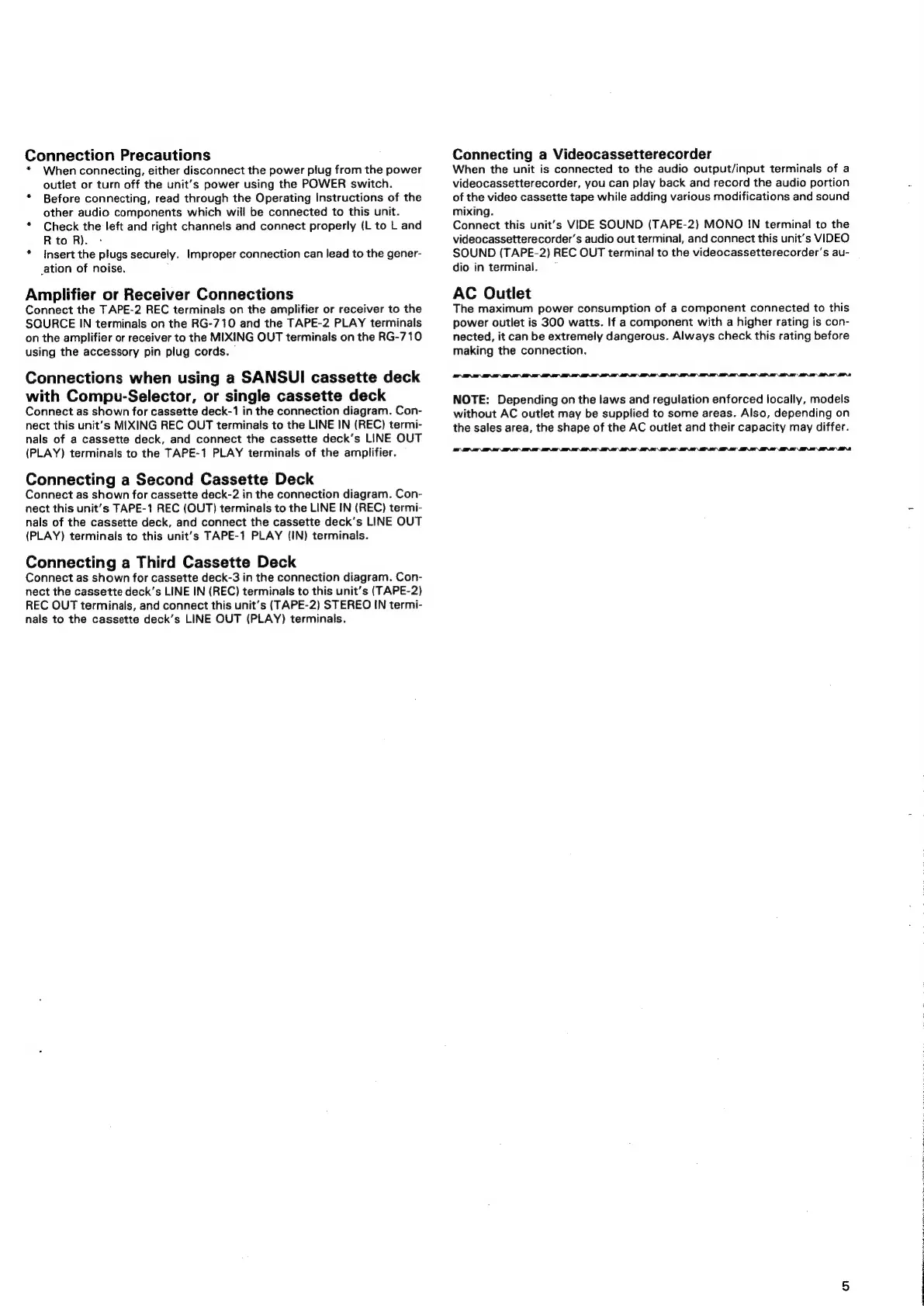

Connection
Precautions
*
When
connecting,
either
disconnect
the
power
plug
from
the
power
outlet
or
turn
off
the
unit’s
power
using
the
POWER
switch.
*
Before
connecting,
read
through
the
Operating
Instructions
of
the
other
audio
components
which
will
be
connected
to
this
unit.
*
Check
the
left
and
right
channels
and
connect
properly
(L
to
L
and
R
to
R).
*
Insert
the
plugs
securely.
Improper
connection
can
lead
to
the
gener-
ation
of
noise.
,
Amplifier
or
Receiver
Connections
Connect
the
TAPE-2
REC
terminals
on
the
amplifier
or
receiver
to
the
SQURCE
IN
terminals
on the
RG-710
and
the
TAPE-2
PLAY
terminals
on
the
amplifier
or
receiver
to
the
MIXING
OUT
terminals
on
the
RG-710
using
the
accessory
pin
plug
cords.
|
Connections
when
using
a
SANSUI
cassette
deck
with
Compu-Selector,
or
single
cassette
deck
Connect
as
shown
for
cassette
deck-1
in
the
connection
diagram.
Con-
nect
this
unit's
MIXING
REC
OUT
terminals
to
the
LINE
IN
(REC)
termi-
nals
of
a
cassette
deck,
and
connect
the
cassette
deck’s
LINE
OUT
(PLAY)
terminals
to
the
TAPE-1
PLAY
terminals
of
the
amplifier.
Connecting
a
Second
Cassette
Deck
Connect
as
shown
for
cassette
deck-2
in
the
connection
diagram.
Con-
nect
this
unit's
TAPE-1
REC
(OUT)
terminals
to
the
LINE
IN
(REC)
termi-
nals
of
the
cassette
deck,
and
connect
the
cassette
deck’s
LINE
OUT
(PLAY)
terminals
to
this
unit's
TAPE-1
PLAY
(IN)
terminals.
Connecting
a
Third
Cassette
Deck
Connect
as
shown
for
cassette
deck-3
in
the
connection
diagram.
Con-
nect
the
cassette
deck’s
LINE
IN
(REC)
terminals
to
this
unit’s
(TAPE-2)
REC
OUT
terminals,
and
connect
this
unit's
(TAPE-2)
STEREO
IN
termi-
nals
to
the
cassette
deck’s
LINE
OUT
(PLAY)
terminals.
Connecting
a
Videocassetterecorder
When
the
unit
is
connected
to
the
audio
output/input
terminals
of
a
videocassetterecorder,
you
can
play
back
and
record
the
audio
portion
of
the
video
cassette
tape
while
adding
various
modifications
and
sound
mixing.
Connect
this
unit’s
VIDE
SOUND
(TAPE-2)
MONO
IN
terminal
to
the
videocassetterecorder’s
audio
out
terminal,
and
connect
this
unit’s
VIDEO
SOUND
(TAPE-2)
REC
OUT
terminal
to
the
videocassetterecorder’s
au-
dio
in
terminal.
~
AC
Outlet
The
maximum
power
consumption
of
a
component
connected
to
this
power
outlet
is
300
watts.
If
a
component
with
a
higher
rating
is
con-
nected,
it
can
be
extremely
dangerous.
Always
check
this
rating
before
making
the
connection.
ad
NOTE:
Depending
on
the
laws
and
regulation
enforced
locally,
models
without
AC
outlet
may
be
supplied
to
some
areas.
Also,
depending
on
the
sales
area,
the
shape
of
the
AC
outlet
and
their
capacity
may
differ.
