Sansui RG-710 - For the United Kingdom

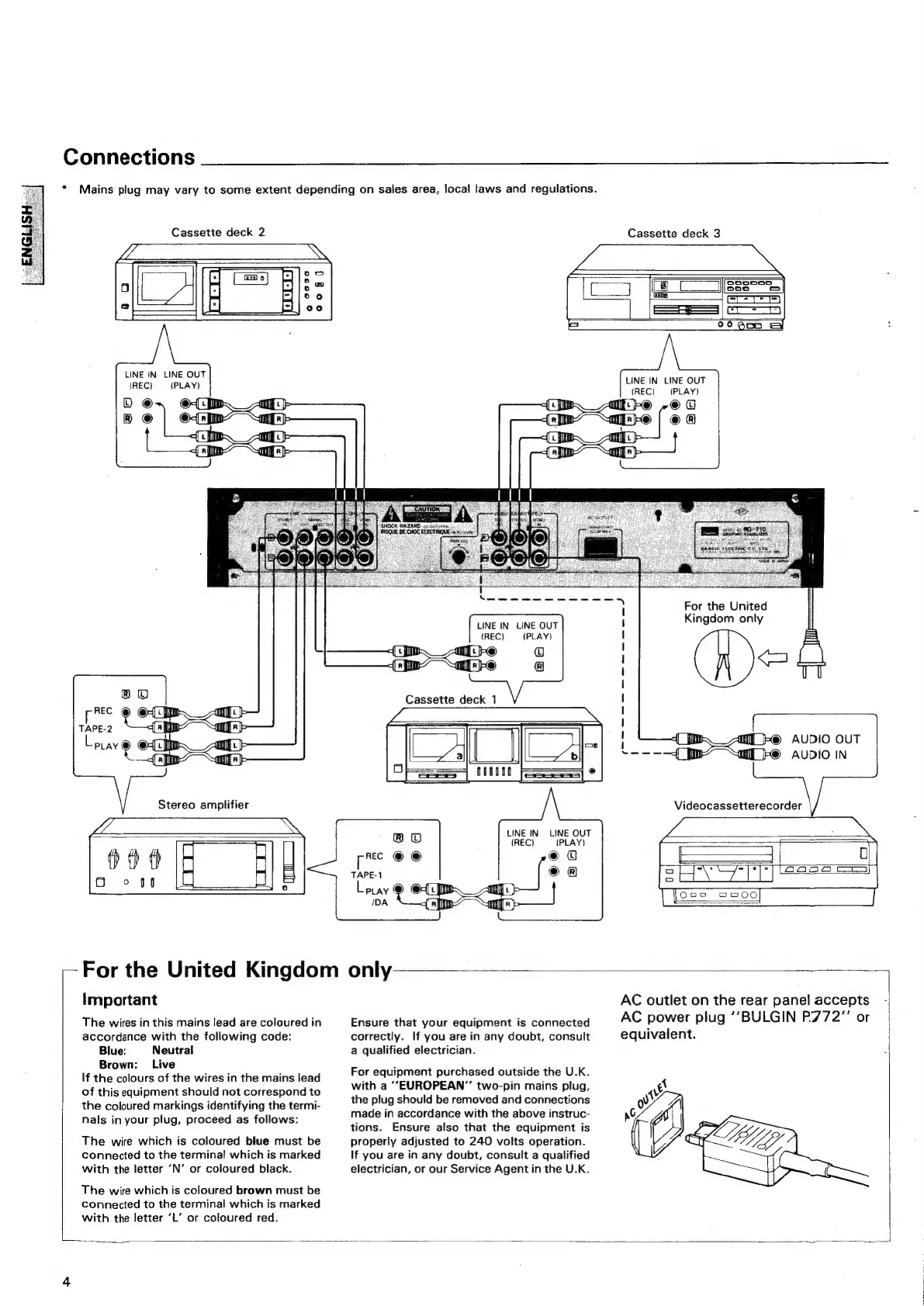

Connections
*
Mains plug may vary to some extent depending on sales area, local laws and regulations.
Cassette deck 2
LINE IN: LINE OUT
(REC) (PLAY)
© @+{( ip
® © @¢ In” arp
{rs _ all]
Cassette deck 3
DS
AMLr®
-©
G
(ayn
SH?
F®
|
©
@
{IE Alp
LINE IN LINE OUT
(REC) (PLAY)
yn” arb
REC @ @-(r. tl
ses {ep
L PLAY® @ (che
- ry
if fa] ea ra}
O o 00
--For the United Kingdom
Important
The wires in this mains lead are coloured in
accordance with the following code:
Blue: Neutral
Brown: Live
Hf the colours of the wires in the mains lead
of this equipment should not correspond to
the coloured markings identifying the termi-
nals in your plug, proceed as follows:
The wire which is coloured blue must be
connected to the terminal which is marked
with the letter ‘N’ or coloured black.
The wire which is coloured brown must be
connected to the terminal which is marked
with the letter ‘L’ or coloured red.
LINE IN LINE OUT
(REC) — (PLAY)
0D _AM |F@
Pi | a EERO) @
Cassette deck 1
(REC) (PLAY)
ii geal ls: et st
@
LINE IN) LINE OUT
For the United
Kingdom only
Gem
{i __AMID-® AUDIO OUT
{me Sa -® «AUDIO IN
oe oe
Videocassetterecorder
only
Ensure that your equipment is connected
correctly. If you are in any doubt, consult
a qualified electrician.
For equipment purchased outside the U.K.
with a ‘‘EUROPEAN”’ two-pin mains plug,
the plug should be removed and connections
made in accordance with the above instruc-
tions. Ensure also that the equipment is
properly adjusted to 240 volts operation.
If you are in any doubt, consult a qualified
electrician, or our Service Agent in the U.K.
AC outlet on the rear panel accepts
AC power plug ‘‘BULGIN P772’’ or
equivalent.
