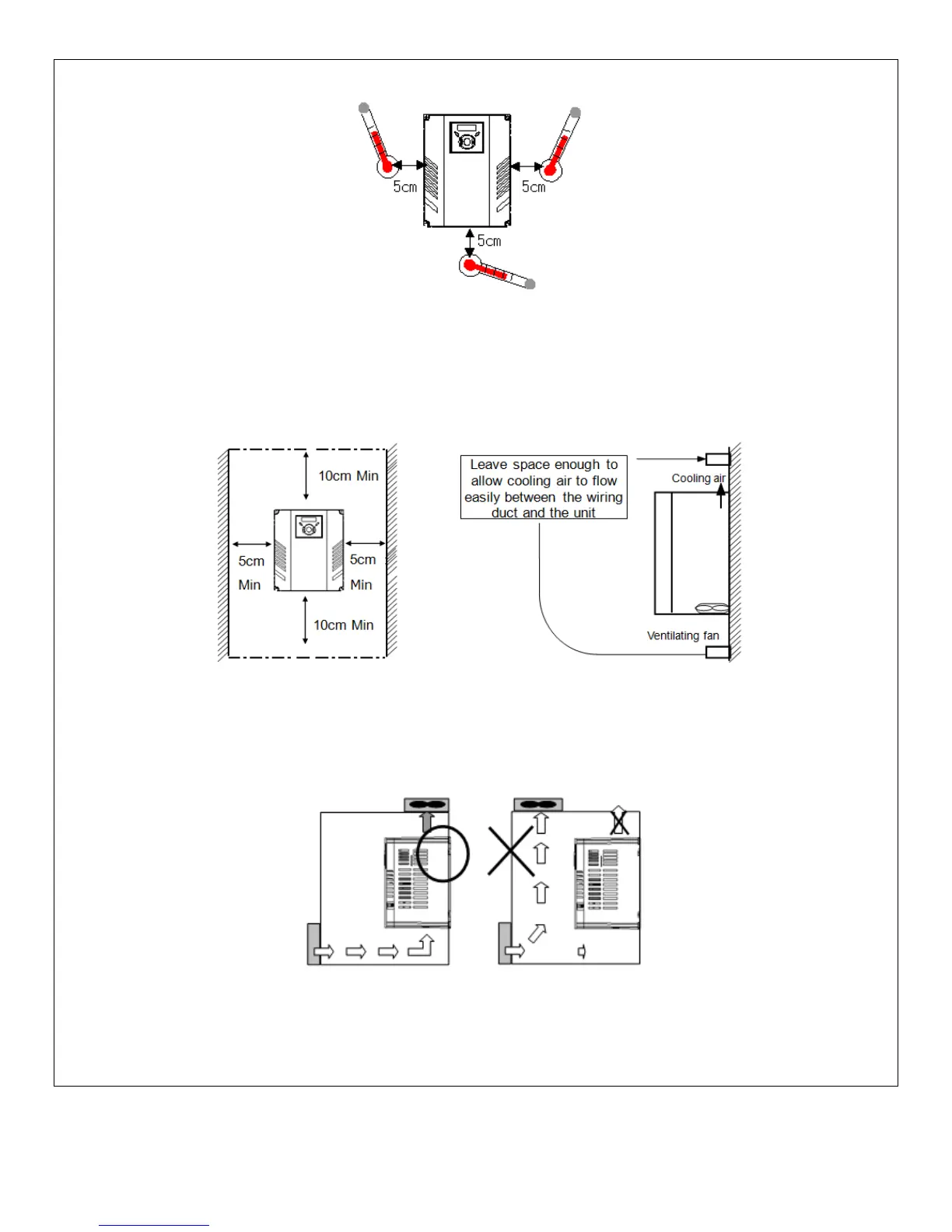

<Surrounding Air Temp Checking Location>
The inverter will be very hot during operation. Install it on a non-combustible surface.
Mount the inverter on a flat, vertical and level surface. Inverter orientation must be vertical (top up) for
proper heat dissipation. Also leave sufficient clearances around the inverter.
Protect from moisture and direct sunlight.
Do not install the inverter in any environment where it is exposed to waterdrops, oil mist, dust, etc. Install the
inverter in a clean place or inside a “totally enclosed” panel any suspended matter is not entered.
Take caution on proper heat ventilation when installing inverters and fans in a panel.
When two or more inverters are installed or a cooling fan is mounted in a panel, the inverters and fan must
be installed in proper positions with extreme care to keep the surrounding air temperature below the
permissible range.
Install the inverter using screws or bolts to ensure that the inverter is firmly fastened.
