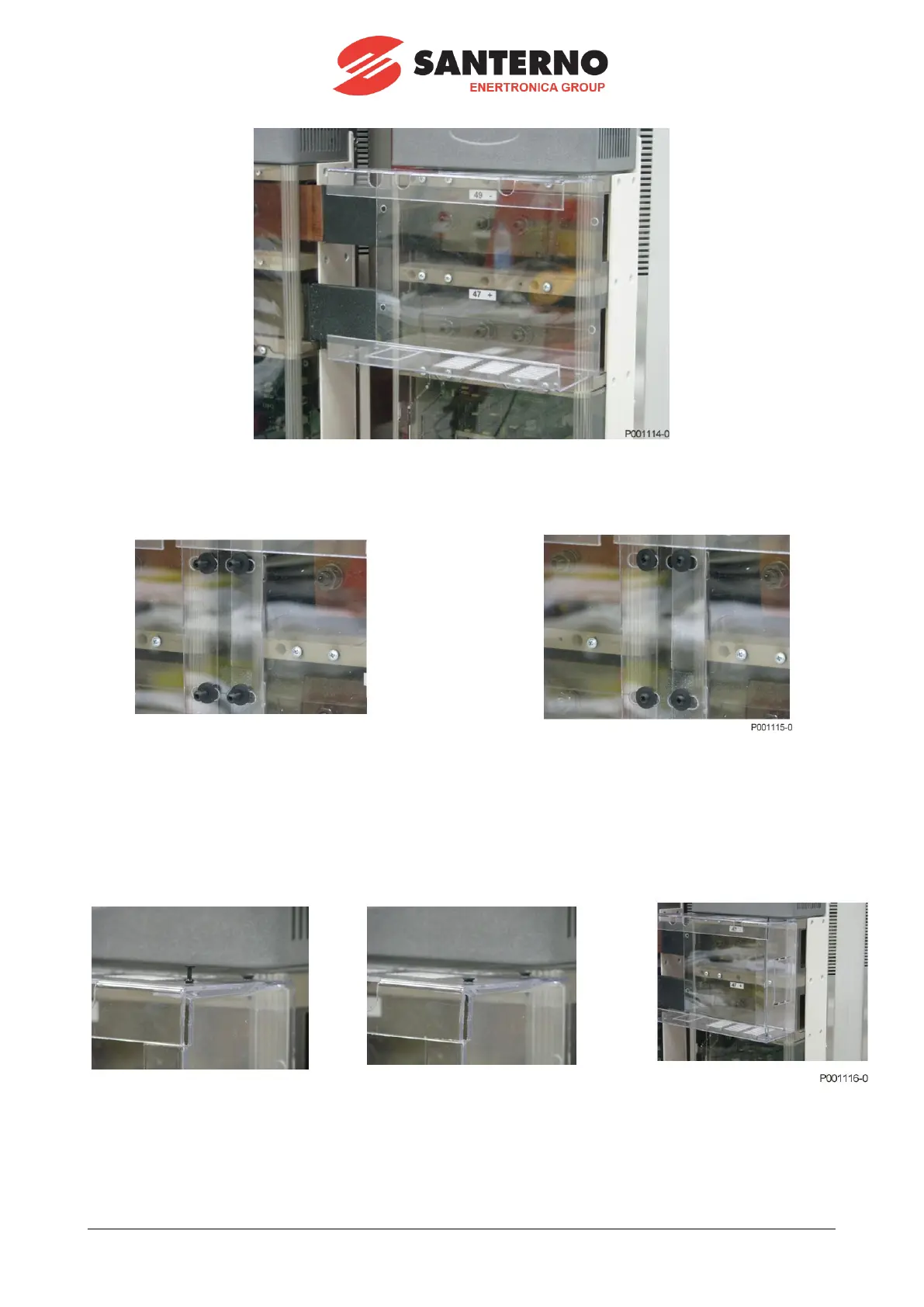

Figure 28: Cable raceway installed on the inverter module
2) Install the junction plates between the inverter modules (B) and between the inverter sections (E) (the
junction plates are to be fitted using the pre-cut slots). Fix the junction plates using the fasteners supplied.
Figure 29: Junction plates installed between two inverter modules
3) Wire the internal cables.
4) Fit the covers:
- Fit the bottom covers (F) using the rivets;
Figure 30: Assembly of the bottom cover
- Fit the cable raceway bottom covers (C) using the Velcro items;
- Fit the linking tubes (D) where required.
