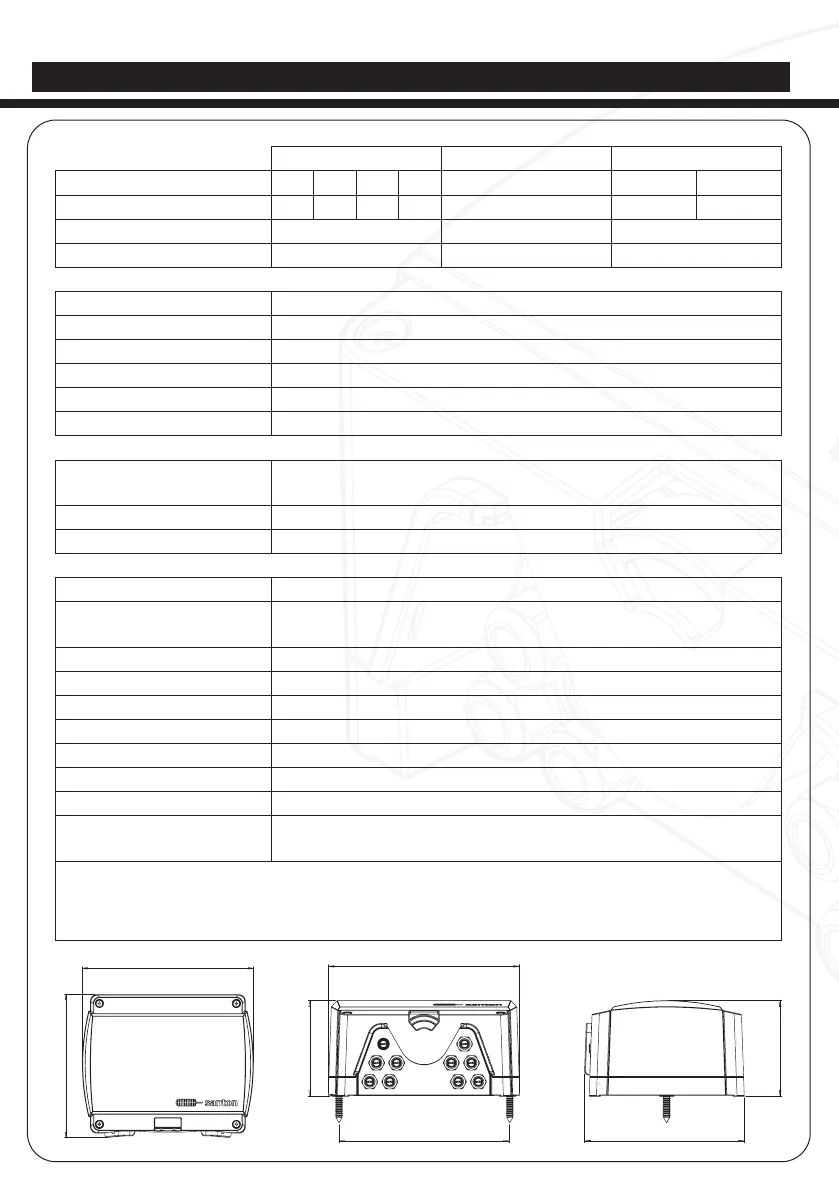

Santon DFS-14 - Specifications (Iec); Spezifikationen (Iec); Fiche Technique (Iec)

DFS-14...* DFSHP-14-MC4 DFSHP-154-MC4(Evo2)
String Voltages (Vdc) 1000 850 800 650 1000 1000 1500
String Current (A) 16 20 25 32 40 45 20
Switch version 4 poles, 0-1-0-1 4 poles, 0-1-0-1 4 poles, 0-1-0-1
Number of Strings 2 2 2
Operating Voltage 100Vac - 240Vac
Nominal Voltage 230Vac
Nominal Current 30mA
Start up (loading) Current average 100mA
Switch on Action Current max 300mA
Feedback contact 24Vdc - 300mA max
Optional Auxilary contact IEC
60947 AC-15 / DC-13
N/A
max. switching voltage
max. switching current
Operating Temperature range -20°C - +50°C
Maximum operating temperature
before automatic switch OFF
+100°C
Storage Temperature range -40°C - +85°C
Protection Degree IP65
Protection Level Class II
Weight Approx. 1kg
CE certication EN 60947 part 1+3
DC Switch disconnect according to IEC: EN 60947-3:2009/A1:2012/C1:2013 /A2:2015 Cat PV -1
Number of operations without current 9700
Number of operations under load
(PV-1) with current
300
* For DFS-14 and DFS-14-W please use correct M4 fork cable lugs shoes / Für DFS-14 und DFS-14-W nutzen Sie bitte
korrekte M4 Gabel Kabelschuhe / Pour DFS-14 et DFS-14-W s’il vous plaît utiliser cosse M4 correcte / Para DFS-14 y
DFS-14-W por favor, utilice correcta terminal de cable M4 / Per DFS-14 e DFS-14-W si prega di utilizzare corretta
capacorda M4 / Gebruik voor de DFS-14 en DFS-14-W de correc te M4 kabelschoen.
12
175
210
175
105
187
105
210
SPECIFICATIONS (IEC) / SPEZIFIKATIONEN (IEC) / FICHE TECHNIQUE (IEC)
