Santos 11 - Models 11, 38 & 52 (100-120 V)

SANTOS: Instruction and Maintenance Manual
98111 US 3.5 - 06 2012 11 / 13 www.santos.fr
Models nos. 11, 38 and 52:

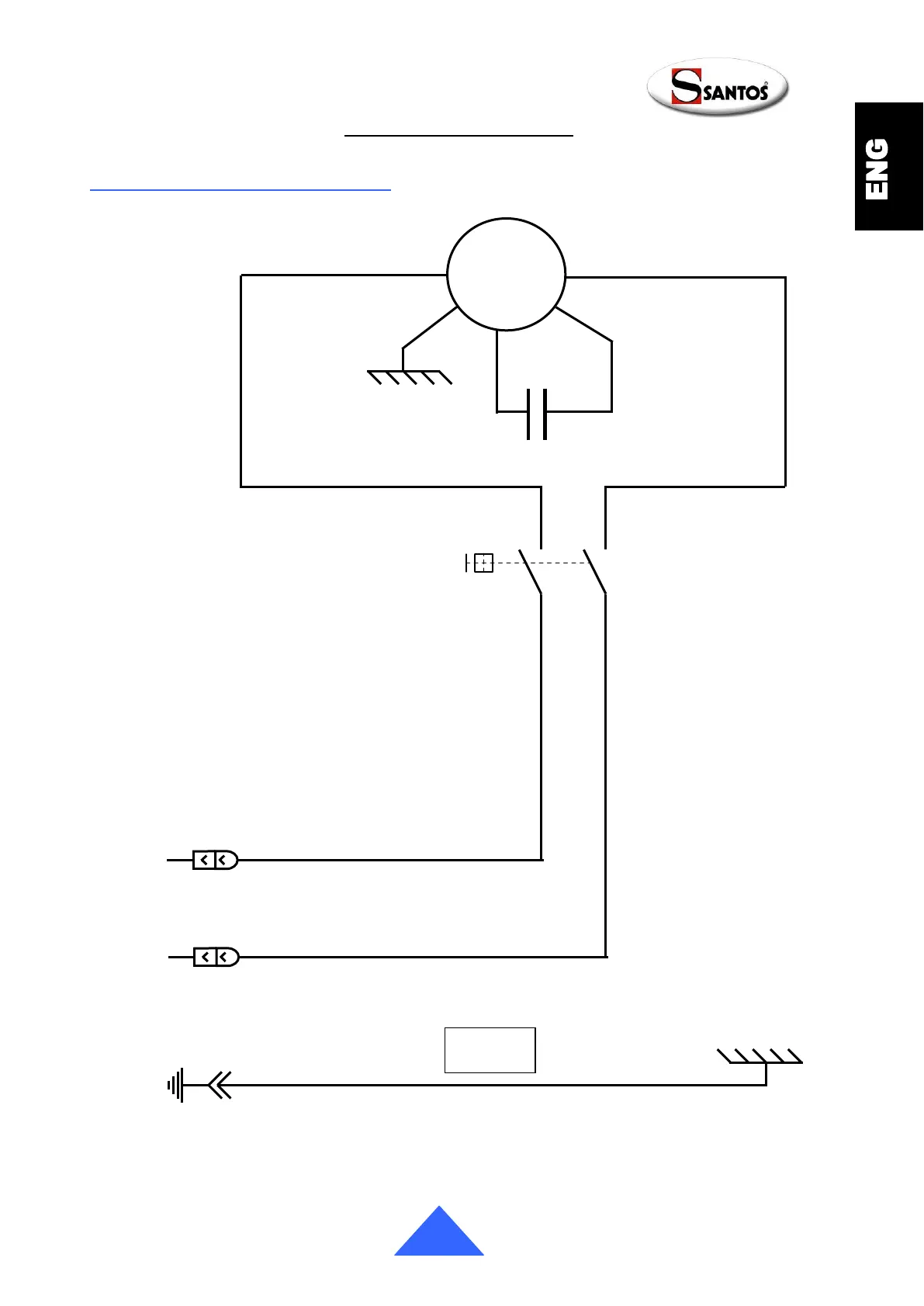

Wiring diagram 100-120V 50/60Hz
~
2x240
Green/Yellow
2
4
5
1
Yellow
M
Black
White
Red
White 240
White 240
On / Off
White
Black
Capacitor
