Edition du 04-2005 Page 3
DESCRIPTION

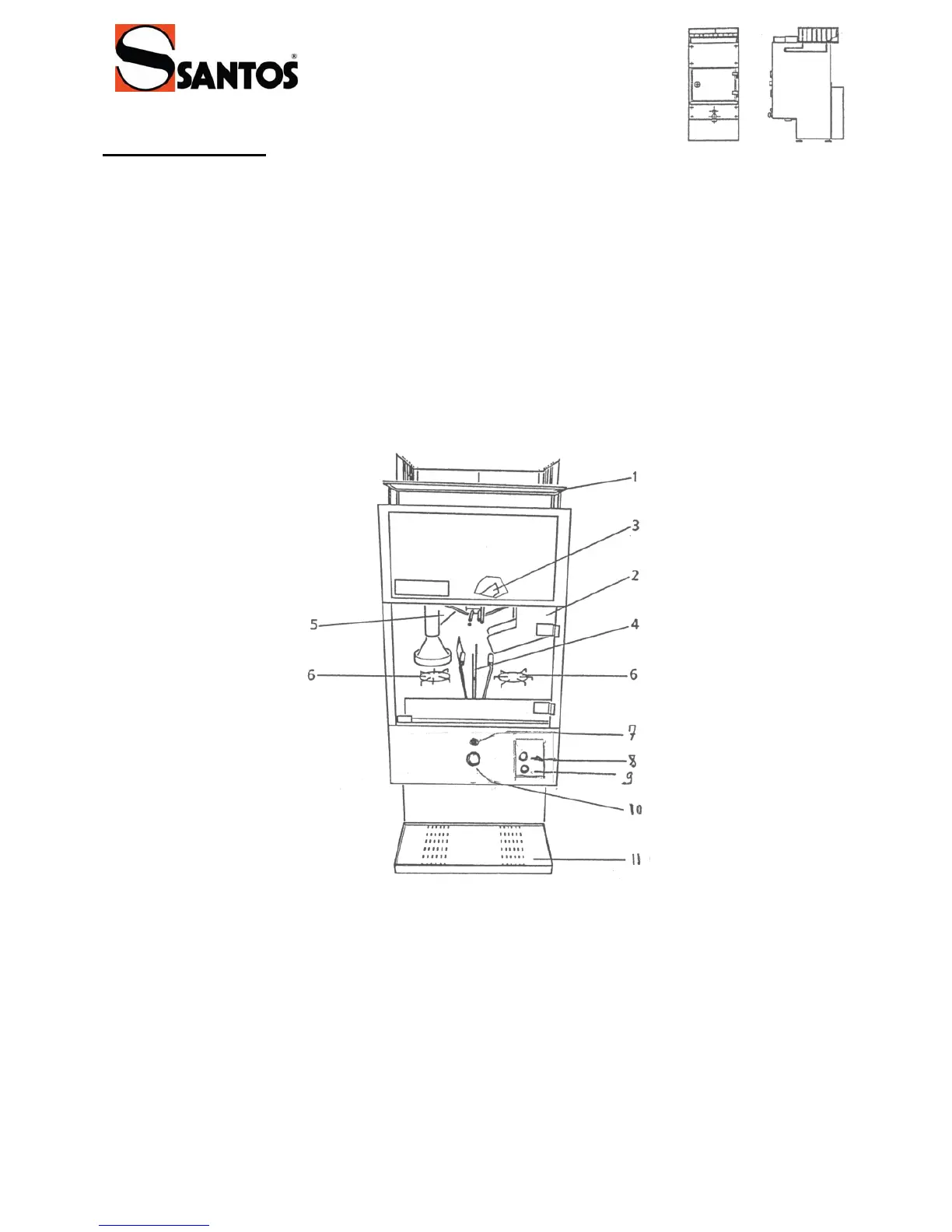

The number 32 automatic orange juicer consists in 6 major parts :
- oranges’hopper (1)
- chute (2) with dumper (3)
- knife (4)
- squeezer’s holder (5) ,with selector and linkage
- tank with 2 cones (6)
-control sections consisting in:
o Power pilot lamp(7)
o “START”pushbutton (8)
o “PAUSE”pushbutton (9)
o “START”and emergency stop button(10)
A glass holder (11) is provided with N° 32 (tabletop version)
A rolling table is provided with N° 32 T
