Sanus Systems VMPL50A - Wood Stud Mounting

6901-002051 <05>
15
1
2
3
2-1
5.5mm
(7/32 in.
)
13mm
(1/2 in.)

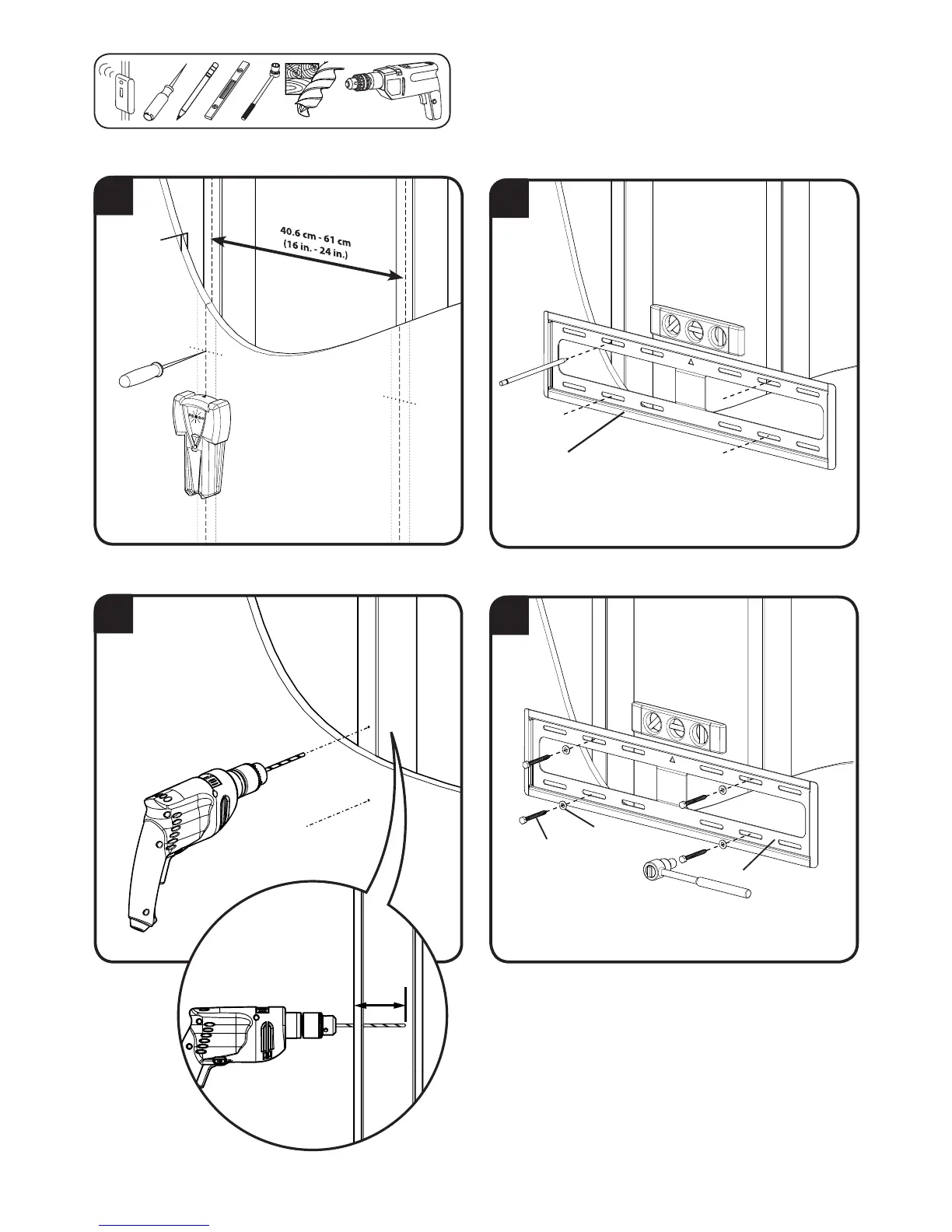

Wood Stud Wall Mounting – See Cautions in Step 2.
Locate studs. Verify the
center of the stud with an
awl or thin nail or use an
edge to edge stud  nder.
Level the wall plate [03] and mark the hole locations.
Drill pilot holes as
illustrated.
Tighten the lag bolts [21] only until the washers [22]
are pulled  rmly against the wall plate [03].
[03]
[21]
[22]
4
75mm
3 in.
[03]
< 16 mm
(5/8 in.)
