Sanus Systems VMPL50A - Concrete and Block Mounting

6901-002051 <05>
16
1 2
3
10mm
(3/8 in.)
13mm
(1/2 in.)
2-2

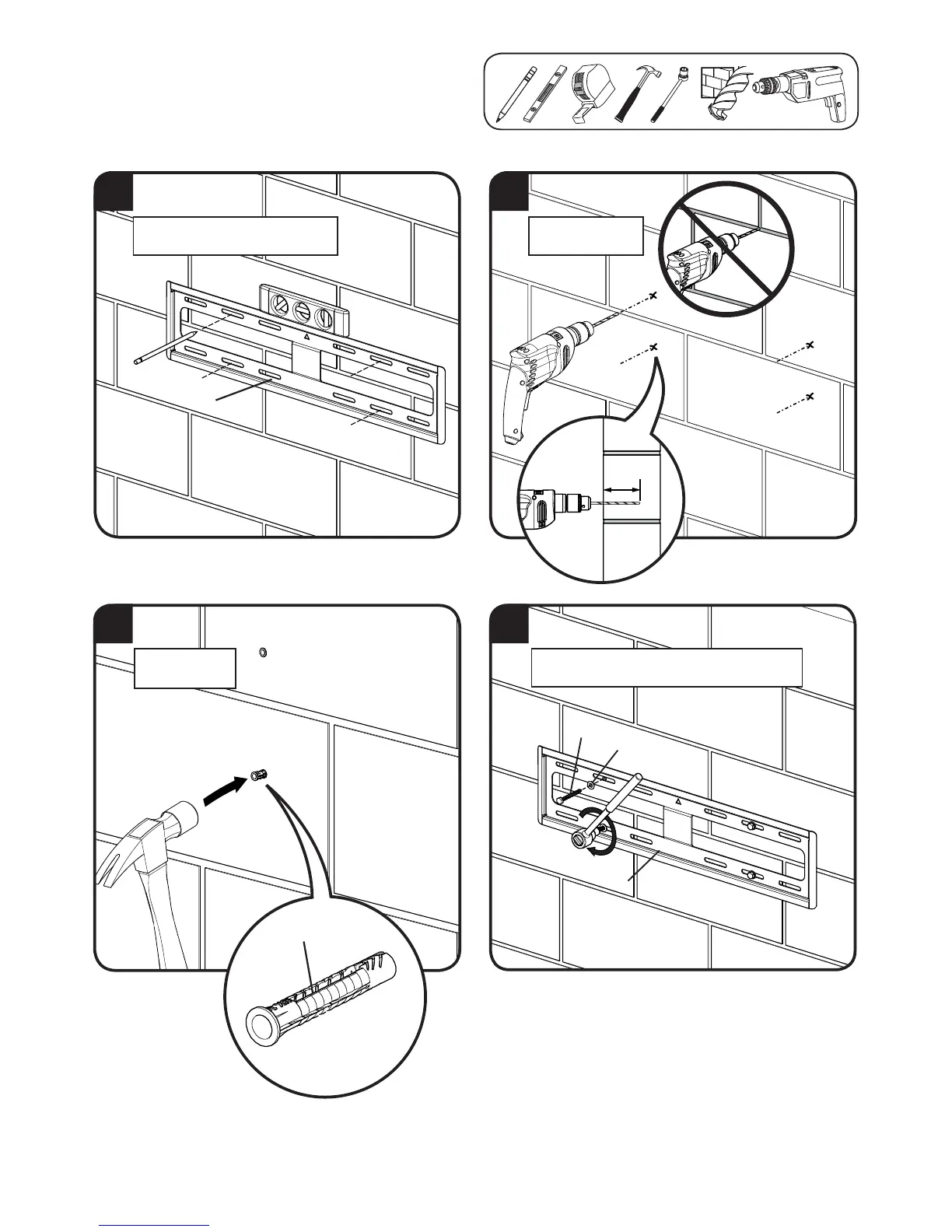

Solid Concrete and Concrete Block Mounting – See Cautions in Step 2.
4
[23]
[03]
75 mm
3 in.
[03]
[22]
[21]
Drill pilot holes as
illustrated.
Insert lag bolt
anchors [23].
Tighten the lag bolts [21] only until the washers
[22] are pulled  rmly against the wall plate [03].
Level wall plate and mark the hole
locations.
