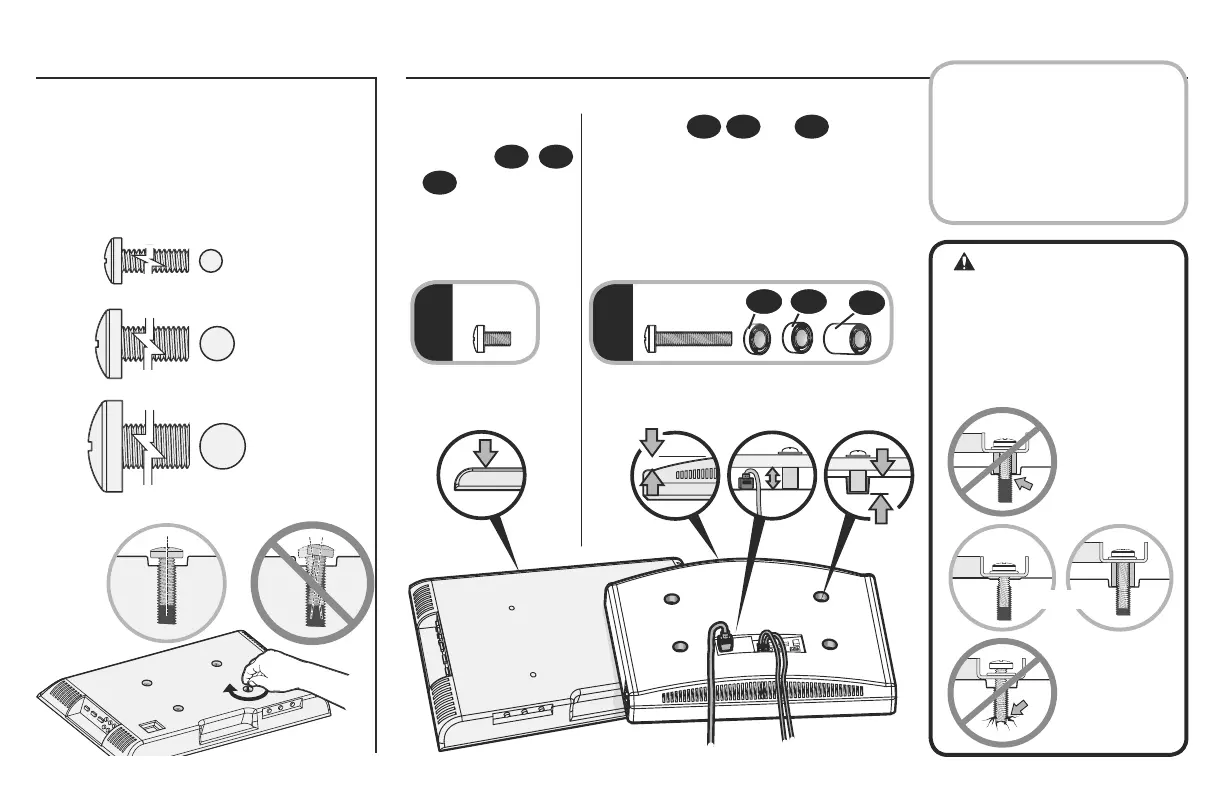

1.3 Select TV Screw Diameter
1.4 Select TV Screw Length
Standard configurations
are shown. For special
applications, or if you
are uncertain about your
hardware selection, contact
Customer Service.
CAUTION:
Verify adequate thread
engagement with your screw/
washer/spacer combination
AND TV bracket.
– Too short will not hold the TV.
– Too long will damage the TV.
M4
M6
M8
a
b
a
: For flat-back TVs,
no spacers
06 07
,
08
b
: Spacers
06
and,
07
08
supplied for:
● Round (irregular) back TVs
● Extra space needed (for cables
or inset mounting holes)
FLAT BACK ROUND BACK CABLES INSET HOLES
Test the four TV screw diameters (M4,
M6, and M8) in the threaded inserts on
the back of your TV to determine which
screw diameter fits your TV.
08
0706
