Sanus VMT5 - STEP 2 C Solid Concrete or Concrete Block Option

17
1 2
CAUTION: Avoid potential personal injuries and property damage!
● Mount the wall plate
11
directly onto the concrete surface
● Minimum solid concrete thickness: 203 mm (8 in.)
● Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.)
● Minimum horizontal space between fasteners: 406 mm (16 in.)

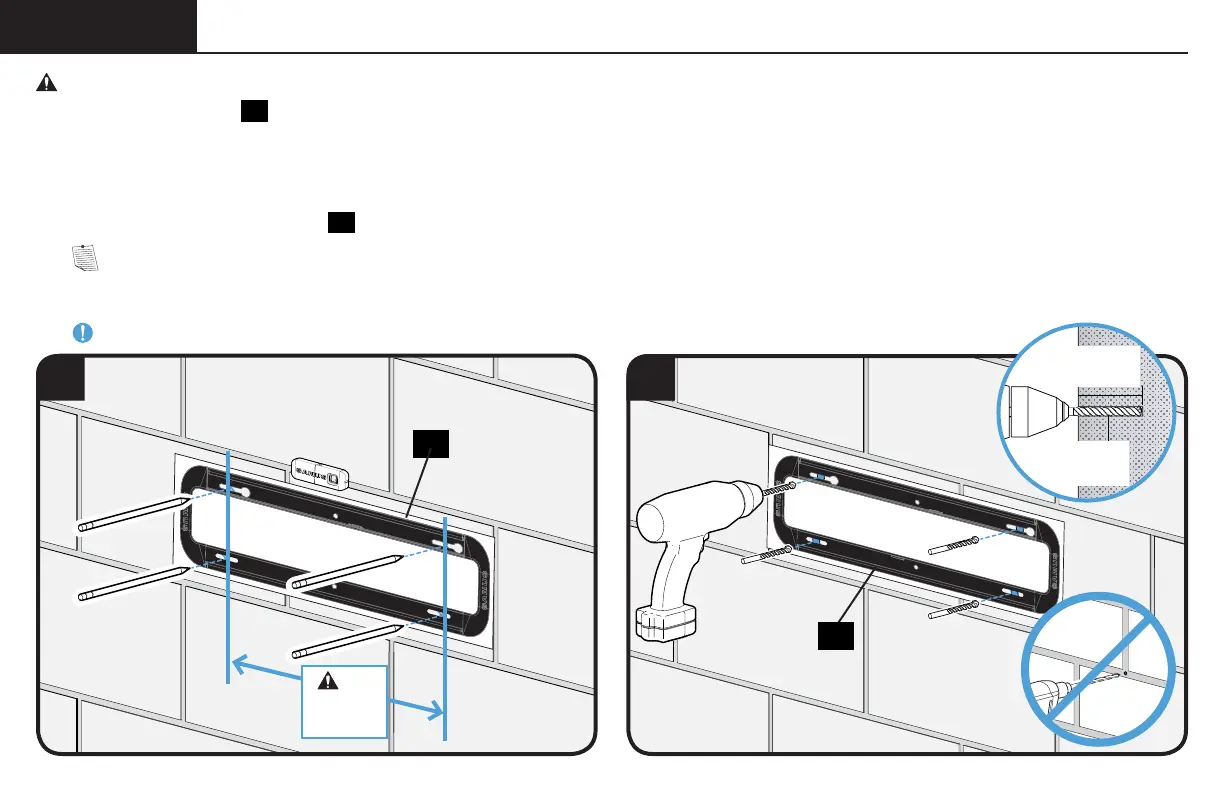

1. Position the wall plate template
10
on the wall at your desired height. Level the wall plate template and mark the hole locations.
NOTE: For assistance in determining wall plate location, see Height Finder at sanus.com.
2. Drill four pilot holes using a 10 mm (3/8 in.) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 101 mm (4 in.). Never drill into the mortar between blocks.
10
10
STEP 2C Solid Concrete or Concrete Block Option
10 mm
(3/8 in.)
101 mm
(4 in.)
Min.
406 mm
(16 in.)
