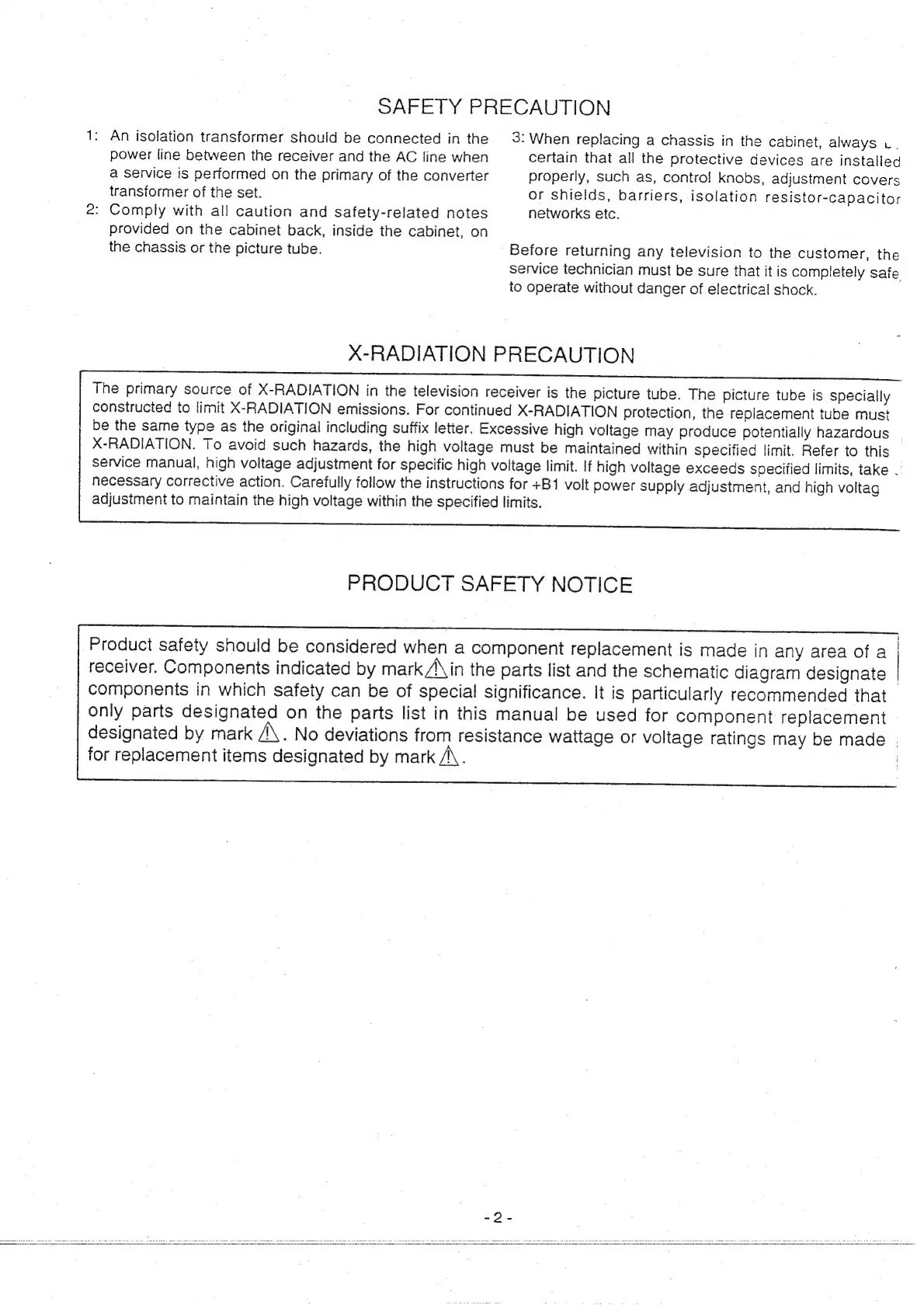

SAFETY PRECAUTION
1:
An
isolation
transformer
should
be
connected
in
the
3:
When
replacing
a
chassis
in
the
cabinet,
always
cv.
power
line
between
the
receiver
and
the
AC
line
when
certain
that
all
the
protective
devices
are
installed
a
service
is
performed
on
the
primary
of
the
converter
properly,
such
as,
control
knobs,
adjustment
covers
transformer
of
the
set.
or
shields,
barriers,
isolation
resistor-capacitor
2:
Comply
with
all
caution
and
safety-related
notes
networks
etc.
provided
on
the
cabinet
back,
inside
the
cabinet,
on
the
chassis
or
the
tube.
Before
returning
any
television
to
the
customer,
the
service
technician
must
be
sure
that
it
is
completely
safe
to
operate
without
danger
of
electrical
shock.
X-RADIATION
PRECAUTION
The
primary
source
of
X-RADIATION
in
the
television
receiver
is
the
tube.
The
tube
is
specially
constructed
to
limit
X-RADIATION
emissions.
For
continued
X-RADIATION
protection,
the
replacement
tube
must
be
the
same
type
as
the
original
including
suffix
letter.
Excessive
high
voltage
may
produce
potentially
hazardous
X-RADIATION.
To
avoid
such
hazards,
the
high
voltage
must
be
maintained
within
specified
limit.
Refer
to
this
service
manual,
high
voltage
adjustment
for
specific
high
voltage
limit.
If
high
voltage
exceeds
specified
limits,
take
.'
necessary
corrective
action.
Carefully
follow
the
instructions
for
+B1
volt
power
supply
adjustment,
and
high
voltag
adjustment
to
maintain
the
high
voltage
within
the
specified
limits.
PRODUCT SAFETY NOTICE
Product
safety
should
be
considered
when
a
component
replacement
is
made
in
any
area
of
a
receiver.
Components
indicated
by
mark/\in
the
parts
list
and
the
schematic
diagram
designate
|
components
in
which
safety
can
be
of
special
significance.
It
is
particularly
recommended
that
only
parts
designated
on
the
parts
list
in
this
manual
be
used
for
component
replacement
designated
by
mark
/\.
No
deviations
from
resistance
wattage
or
voltage
ratings
may
be
made
|
for
replacement
items
designated
by
mark
A\.
