Sanyo CDF-R800 Service Manual

DISASSEMBLY
L

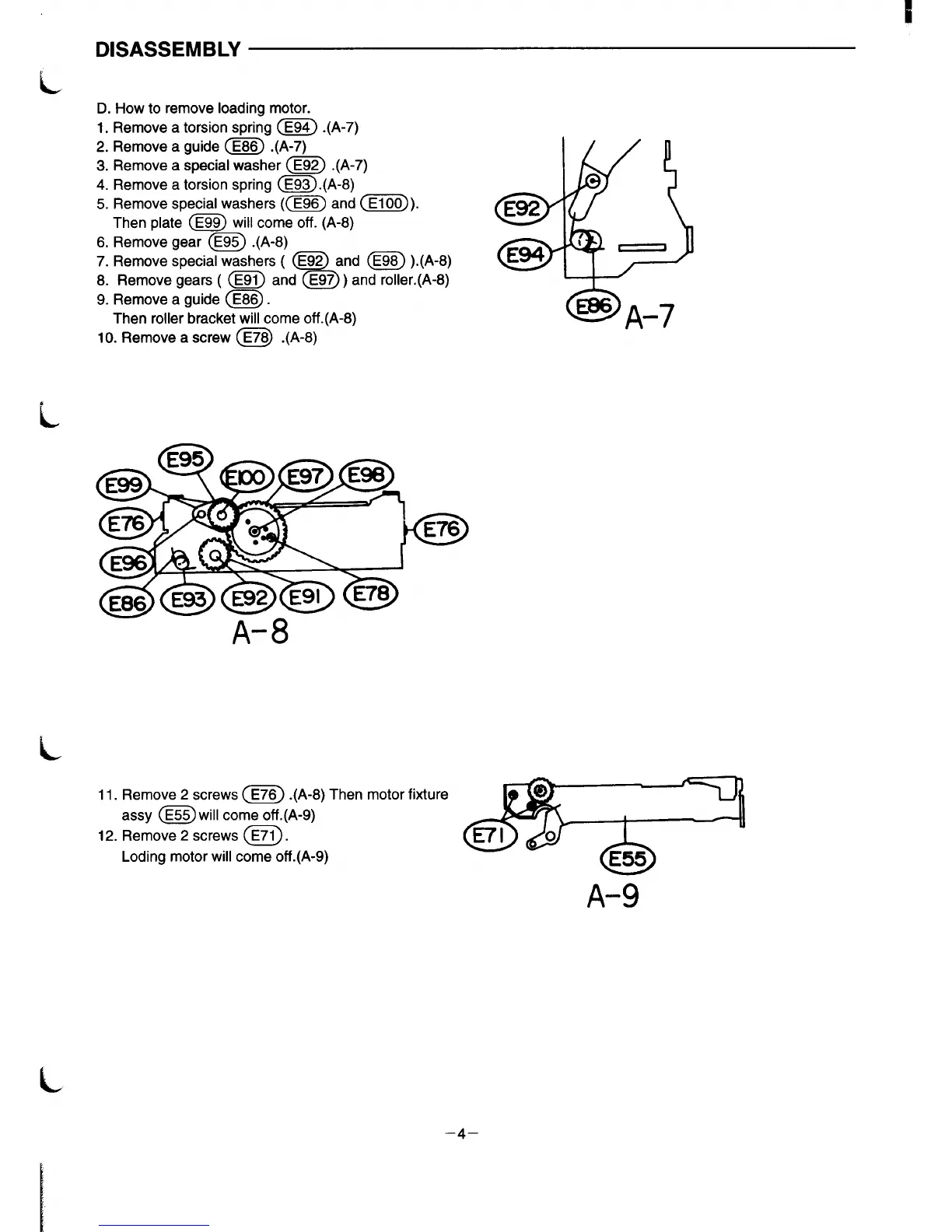

D. How to remove loading motor.
1. Remove a torsion spring ~ .(A-7)
2. Remove a guide ~-.(A-7)
3. Remove
a special washer ~ .(A-7)
4. Remove a torsion spring @.(A-8)
5. Remove special washers (~ and ~).
Then plate @ will come off. (A-8)
6. Remove gear @ .(A-8)
7. Remove special washers ( @@ and @ ).(A-8)
8. Remove gears ( ~ and = ) and roller.(A-8)
9. Remove a guide @.
Then roller bracket will come off.(A-8)
10. Remove a screw@ .(A-8)
o
E06_
A7
L’
11.
12.
Remove 2 screws@ .(A-8) Then motor fixture
assy @will come off.(A-9)
Remove 2 screws ~.
Loding motor will come off.(A-9)
A-9
–4–
