Sanyo CH1822 - Refrigerant Flow Diagrams; Cooling Cycle Refrigerant Path; Heating Cycle Refrigerant Path

Heat exchanger
Wide tube
Accumulator
Compressor
Wide tube
service
valve
DrierCheck
valve
Strainer
Capillary
Muffler
4-way
valve
Narrow tube
service
valve
O.D.
5/8"
(ø15.88 mm)
Narrow tube
O.D.
1/4"
(ø6.35 mm)
Heat exchanger
Check
port
( )
Muffler
P
Disharge pressure
regulator
Capillary
Modulator
Indoor unit Outdoor unit
Heat exchanger
Wide tube
Accumulator
Compressor
Wide tube
service
valve
DrierCheck
valve
Strainer
Capillary
Muffler
4-way
valve
Narrow tube
service
valve
O.D.
5/8"
(ø15.88 mm)
Narrow tube
O.D.
1/4"
(ø6.35 mm)
Heat exchanger
Check
port
( )
Muffler
P
Disharge pressure
regulator
Capillary
Modulator
Indoor unit Outdoor unit

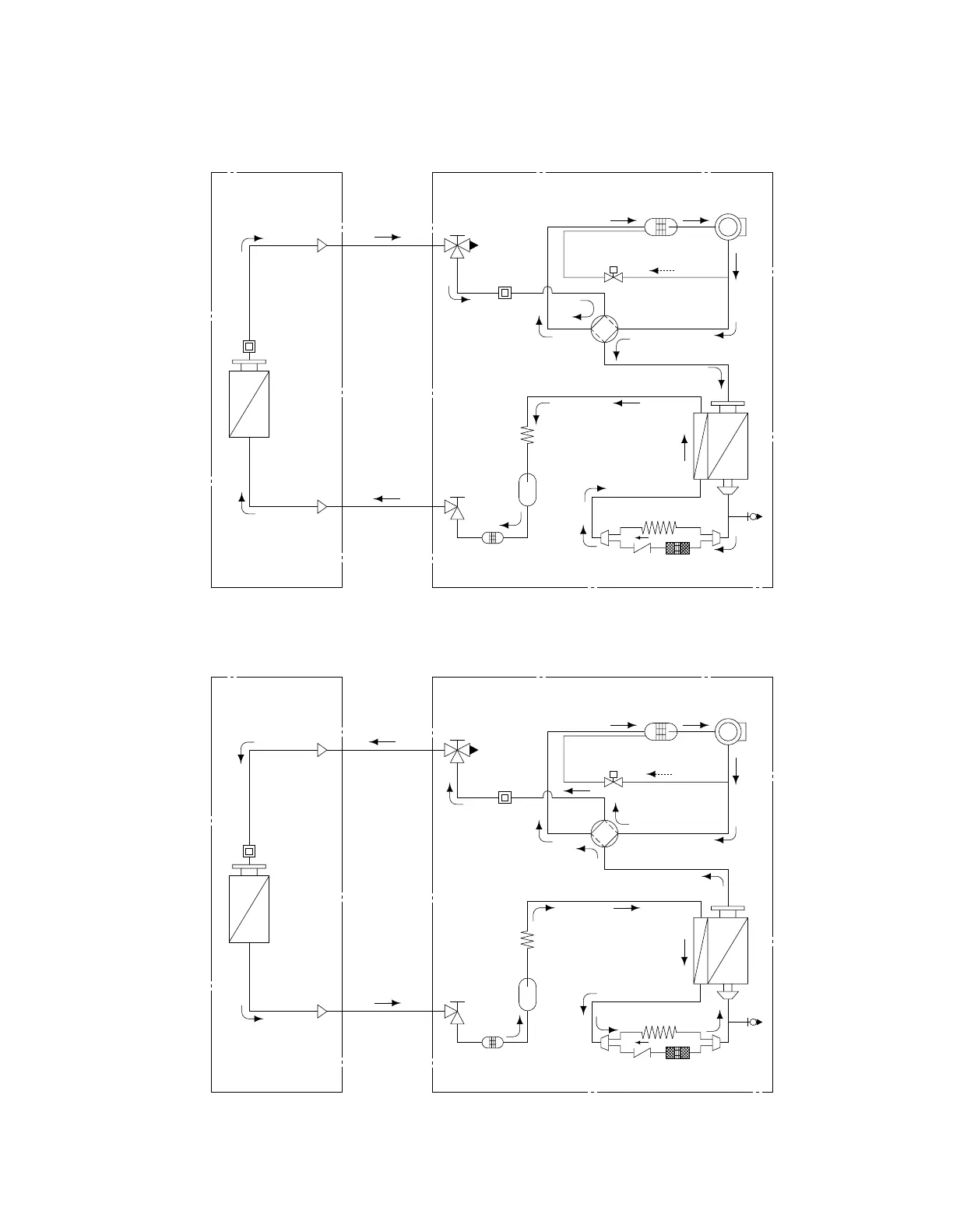

6. REFRIGERANT FLOW DIAGRAM
Cooling Cycle
Heating Cycle
