5

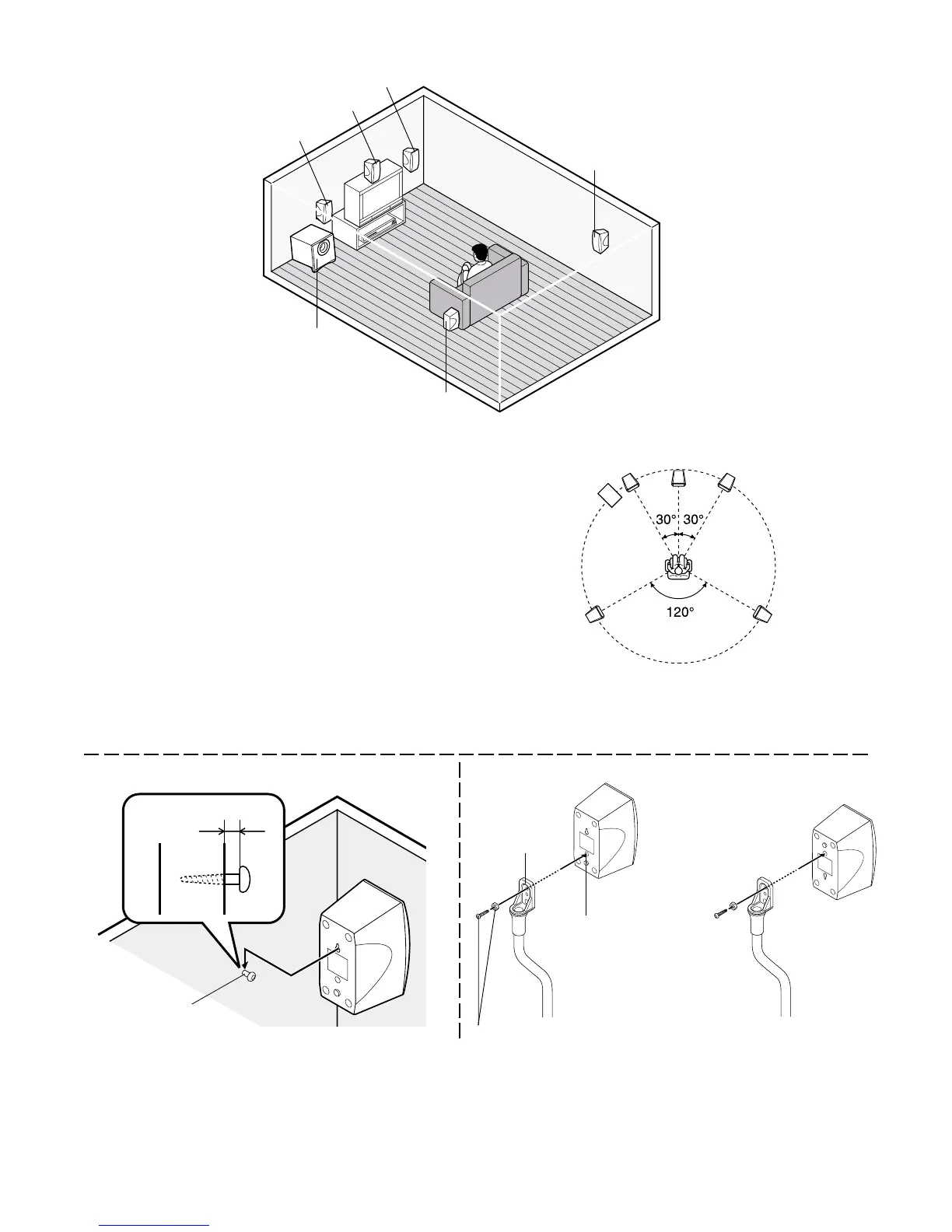

Speaker placement
Example: To hang the speaker on a wall Example: To mount the speaker with a stand
Approx. 3 mm
Stand
(not supplied)
Screw/Nut (not supplied)
Built-in special nut,
“M5” size
Round head screw
(not supplied)
Surround right speaker
Surround left speaker
Subwoofer
Front right speaker
Front left speaker
Centre speaker
The centre and front left/right speakers have built-in magnetic stray field
compensation. They may be placed close to a TV without affecting the
colour purity.
Place the front left/right speakers either side of the TV.
Place the centre speaker directly above the TV.
The front, centre, and surround speakers should be placed at approximately
the same distance from the listening position.
The surround left/right speakers and subwoofer do not have build-in
magnetic stray field compensation.
Keep enough distance between the subwoofer and the TV so as not to
garble the TV screen.
Place the surround speakers either sides of the listening position, or
slightly to the rear, approximately 60 cm ~ 1 meter higher than ear level.
Note:
The angles in the diagramme are approximate.
Note: Take care when installing the speakers. They may cause damage or serious injury should they fall from their mountings.
Front left speaker Front right speaker
Centre speaker
Surround left
speaker
Surround right
speaker
Subwoofer
OR
