GENERAL
IC
FET
Transistor
Diode
Power Source
Power Consumption
Dimension
Weight
TUNER SECTION
Frequency RAnge
STK-023'x 2
LA1201 x 1
2SK41 x 1
2SC693 x 18
25C537 x 8
25C536 x 1
2SC668 x 2
2SC929 x 1
2SC930 x 1
2SA608 x 2
18188 x 29
DS-430 x 14
DS-118 x 2
SZ-9 x 1
AC 120V, 200, 230V
15QW
Inter. Frequency
Sensitivity
FM MPX Separation
Signal to Noise
AUDIO SECTION
Power Output
Frequency Responce
Power Band Width
Input Terminal
Output Terminal
Tone Control
APProx. Width 530mm (21-1/4”)
Deep 390mm (15-3/4"’)
Loudness Control
Hight 150mm (6”)
Approx. 10.9Kg (24 Ibs)
AM 535 — 1,605KHz
FM 88 — 108MHz
STRING
~
DRUM
la Dod
(ft
POINTER

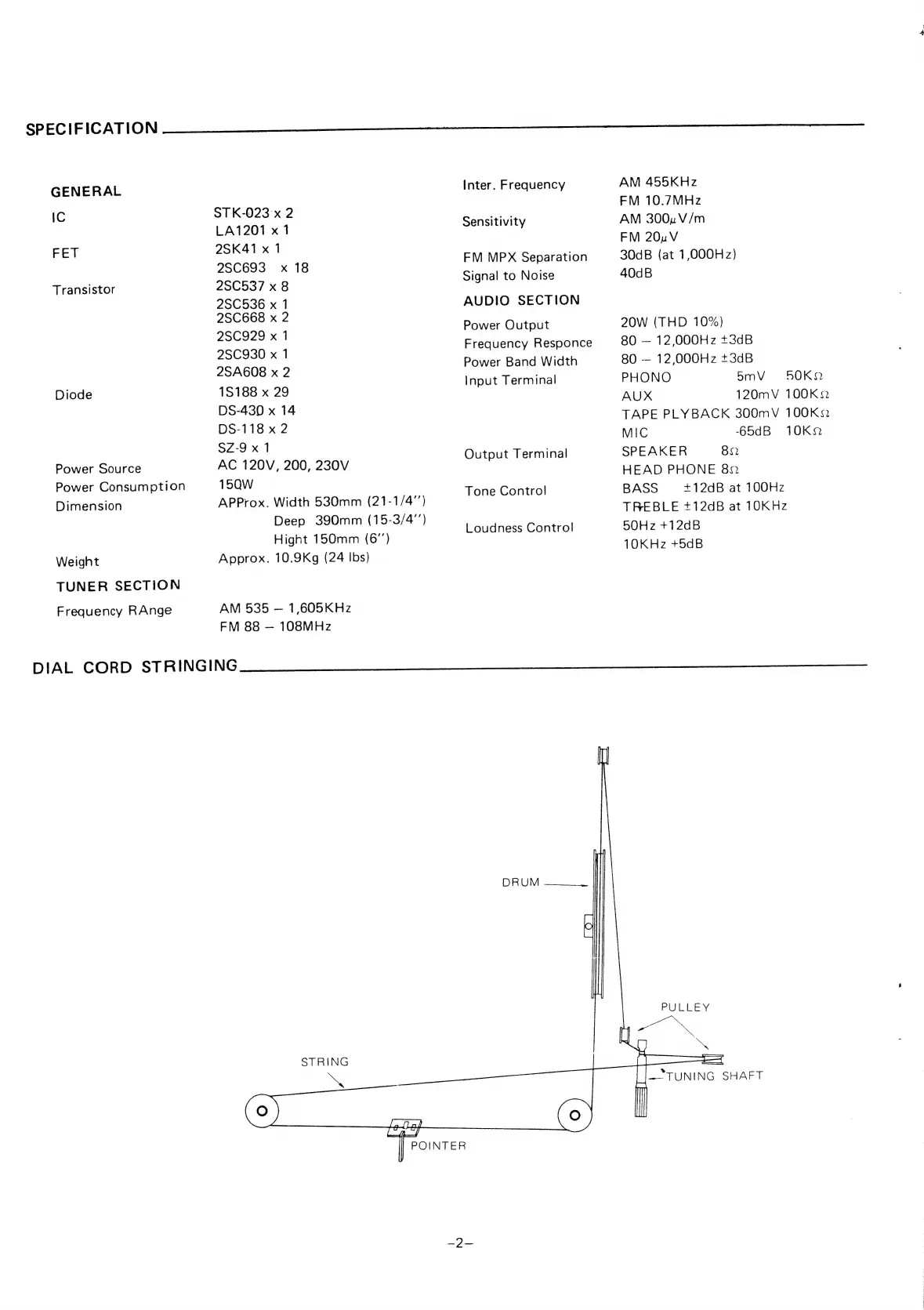

SPECIFICATION
_________—__—_—_——————
AM 455KHz
FM 10.7MHz
AM 300. V/m
FM 20uV
30dB (at 1,000Hz)
40dB
20W (THD 10%)
80 — 12,000Hz +2dB
80 — 12,000Hz +3dB
PHONO BMV BOK
AUX 120mV 100K2
TAPE PLYBACK 300mV 100K2
MIC -65dB 10KQ
SPEAKER BQ
HEAD PHONE 82
BASS +12dB at 100Hz
TREBLE +12dB at 10KHz
50Hz +12dB
10KHz +5dB
DIAL
CORD
STRINGING_______
PURLEY
a
Y) <S
2 ee
| | TUNING SHAFT
N
