12
English

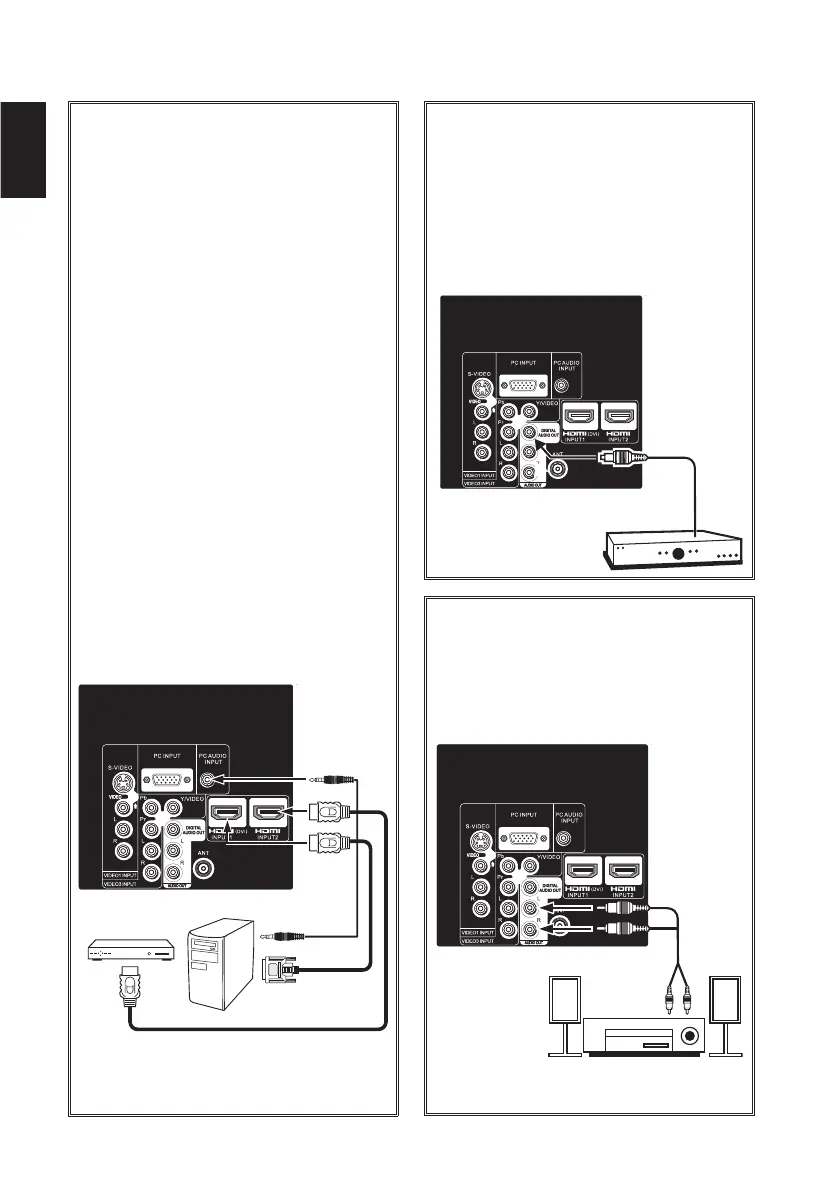

ADVANCED DIGITAL SIGNAL
CONNECTIONS-HDMI TO HDMI
Connect compatible Digital devices, such as, a
HD Cable Box, HD Satellite Receiver, DVD Player,
and Game System.
HDMI-High-Definition Multimedia Interface.
This is an all digital AV interface that accepts
uncompressed video signals for the best picture
quality possible. It supports HDCP copy protection,
allowing transmission of copy-protected digital
content. The signal can also include Dolby
®
Digital or
PCM audio, when available.
1
Connect a HDMI cable to the HDMI input and to
your external device. (Cable is not supplied)
NOTE : Press the INPUT button to step through the signal
inputs to select HDMI1, HDMI2 or HDMI3.
DVI TO HDMI
(ONLY HDMI1 IS COMPATIBLE WITH THIS FUNCTION)
1
Use an adapter (not supplied) to connect a DVI
device to a HDMI1 input jack.
NOTE : HDMI Audio setting is necessary. (refer page 20)
2
Connect the audio out of the device to the PC
AUDIO INPUT.
BACK-SIDE VIEW OF HDTV
SATELLITE
RECEIVER
PC
DIGITAL AUDIO
1
Connect the Digital Audio output to a
multichannel receiver, as shown.
NOTE: Dolby Digital audio signal is available from the
Digital Audio output terminal only when received
as part of a Digital Antenna input being viewed on
the screen.
(Coaxial)
DIGITAL
AUDIO CABLE
(Not supplied)
MULTICHANNEL
RECEIVER
BACK-SIDE
VIEW OF HDTV
AUDIO OUT JACKS
1
Connect the Audio output to a multichannel
receiver, as shown.
STEREO
AMPLIFIER
Cable not
supplied
BACK-SIDE
VIEW OF HDTV
ADVANCED AV CONNECTIONS
