Sanyo DP42746 Service Manual

— 11 —
PANEL MODULE REMOVAL
1. Remove the key switch board.
2. Disconnect the following socket connections.
Main Board ~ Power Unit: CN8004, CN8007
D-TU Board ~ Power Unit: CN8010
Filter Board ~ Power Unit: CN8001
Control Board ~ Main Board: K8E
Speakers ~ Main Board: KSP
PDP Module ~ D TU Board K8LV
3. Remove the main board, D-TU board, and filter board.

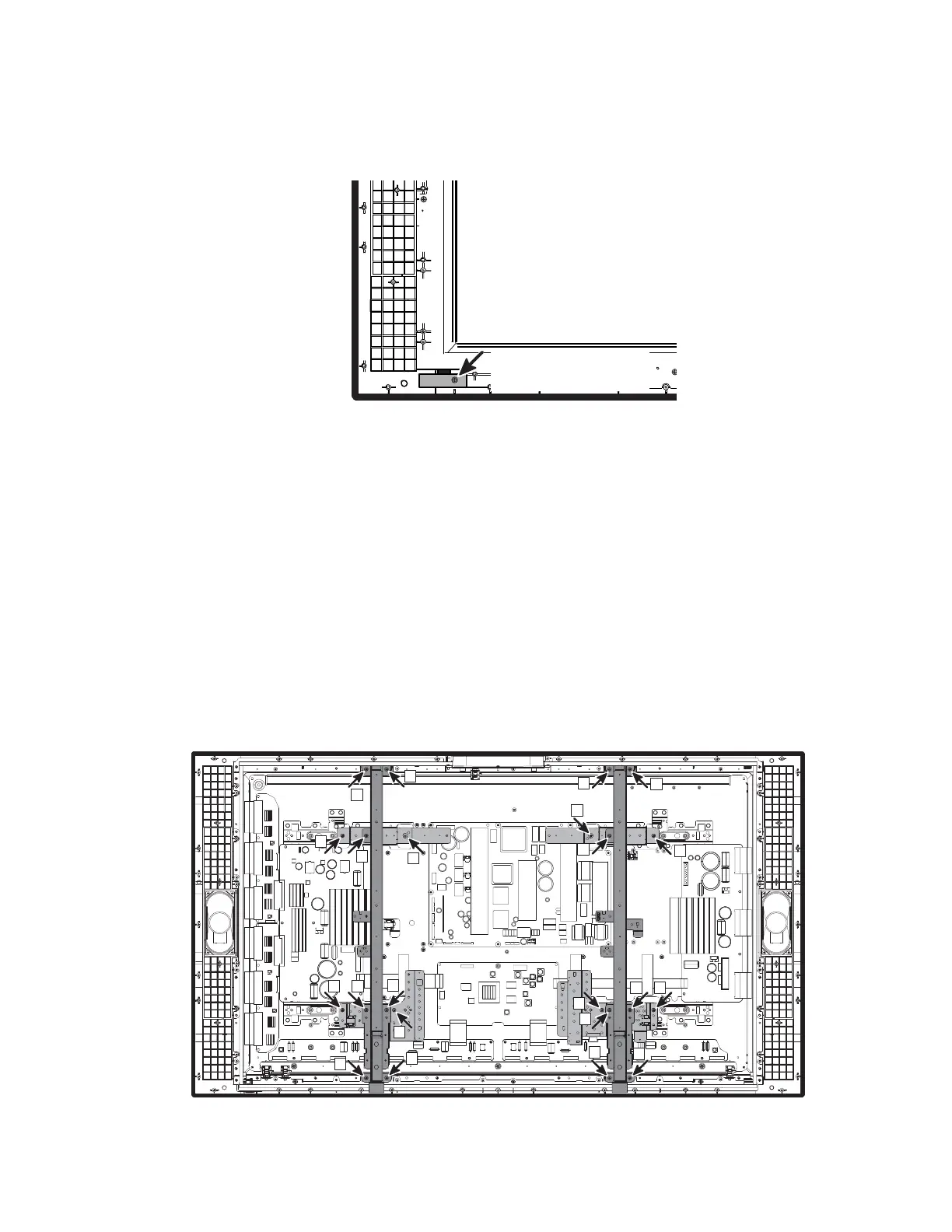

4. Remove the 16 screws from the panel holders (Mounting
Brackets) to take the panel module off.
(H:4X8, 14pcs; I:5X10, 2pcs)
H
H
H
H
H
H
H
H
H
HH
H
H
H
I
H
H
H
H
H
I
H
Control Board (Upper)
Holder (Lower)
