Sanyo DP42746 Service Manual

— 8 —

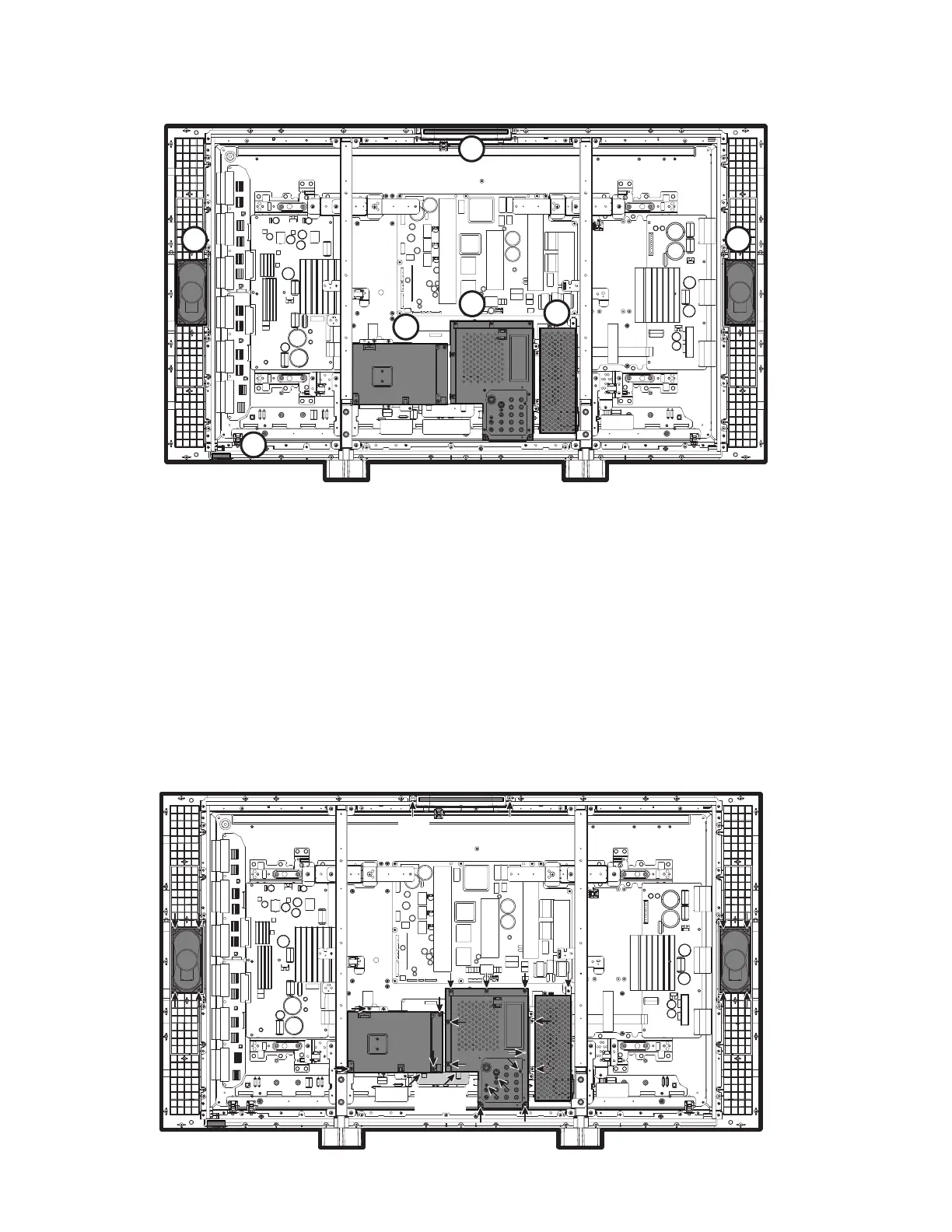

BOARD LOCATIONS
1: MAIN BOARD REMOVAL
Remove 2 tuner nuts (Digital and Analog) and take off the
terminal base. Disconnect plugs K8MB, K8MA, K8A, K8B,
K8F, K8E, and KSP. Remove 11 screws (3X8: 2 types) to
take the main board with the shield case (assembly parts)
off.
2: D-TU BOARD REMOVAL
Remove the terminal base. Disconnect plug K8LV. Remove
5 screws (3X8) to take the D-TU (digital) board with the
shield case (assembly parts) off.
3: FILTER BOARD REMOVAL
Disconnect plug KAC. Remove 3 screws (3X8) to take the
filter board with the shield case (assembly parts) off.
4: KEY SW BOARD REMOVAL
Disconnect plug K8E. Remove a screw (4X12) to take the
key switch board with the panel, button, and holder
(assembly parts) off.
5: CONTROL BOARD REMOVAL
The control board can be taken off, after the filter glass is
removed. (Refer to ‘FILTER GLASS REMOVAL’.)
6: SPEAKER REMOVAL
Disconnect plug KSP. Remove 4 screws (4X10) to take off
each speaker.
1
2
3
4
5
6 6
Hook
Terminal
Base
MECHANICAL DISASSEMBLY (CONT.)
SCREW LOCATIONS
