POSITIONING THE TV
Do not position the TV in a confined
area. Allow space for normal air
circulation around electronic parts.

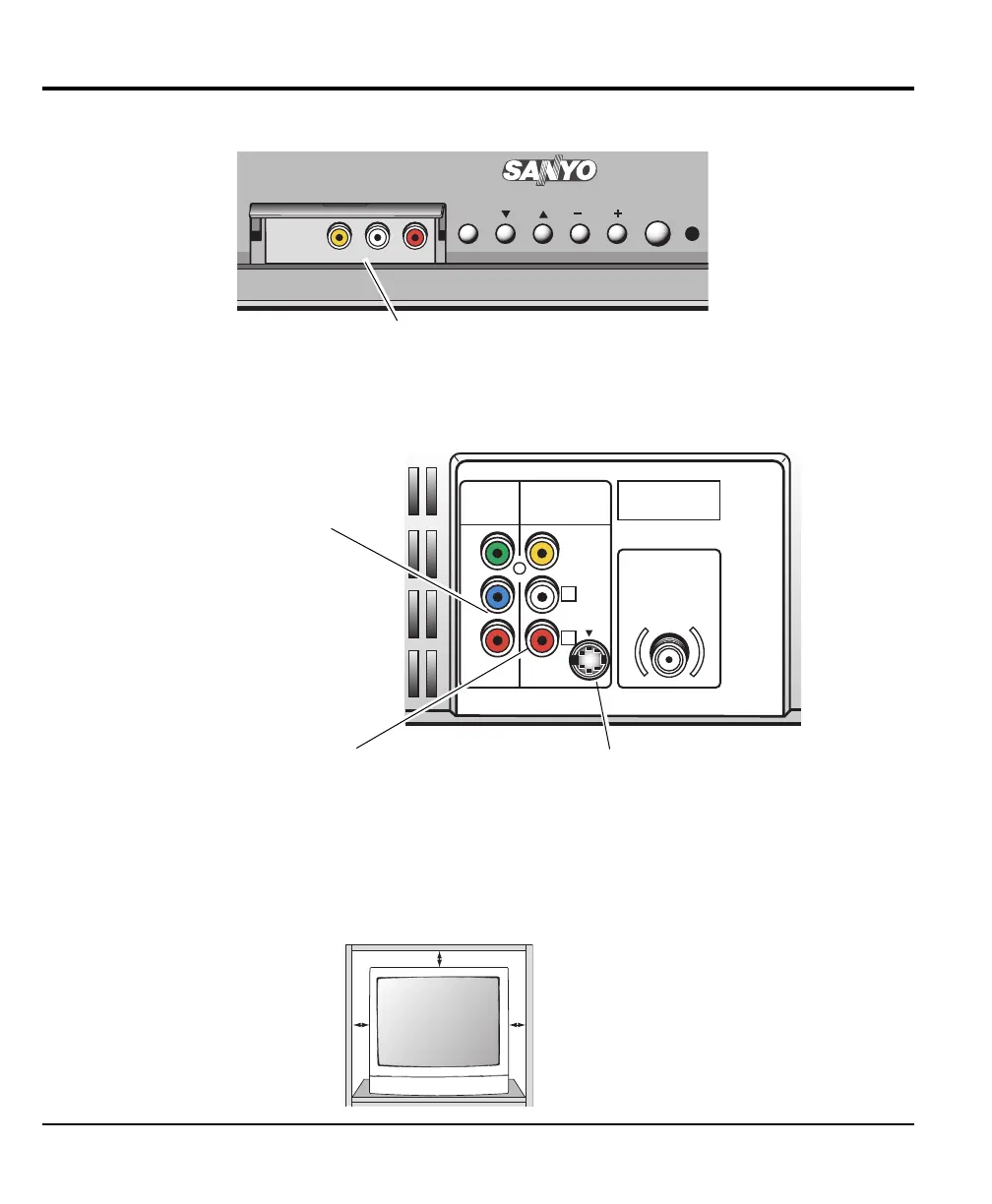

Audio/Video In Jacks (AV2)
Connect video equipment here (see pages 6 and 8).
Note: S-Video connection will override an AV2
video connection.
S-Video In Terminal
To enhance video detail use the AV2
S-Video jack instead of the AV2 Video jack,
if available on your external equipment. (An
S-Video connection will override connection to
the AV2 video input jack. See page 8.)
480i Component Video In Jacks
(Component 2, Y, Pb, Pr)
Connect video equipment here
(see page 6).
Note: Audio/Video Input (AV2) and Com-
ponent inputs share the same
audio (R/L) input jacks.
Front & Rear Panels
5
Front and Rear Panels
