Sanyo DS24424 - Front and Rear Panel Identification; TV Positioning Guidelines

Positioning the TV
Do not position the TV in a confined
area. Allow space for normal air
circulation around electronic parts.

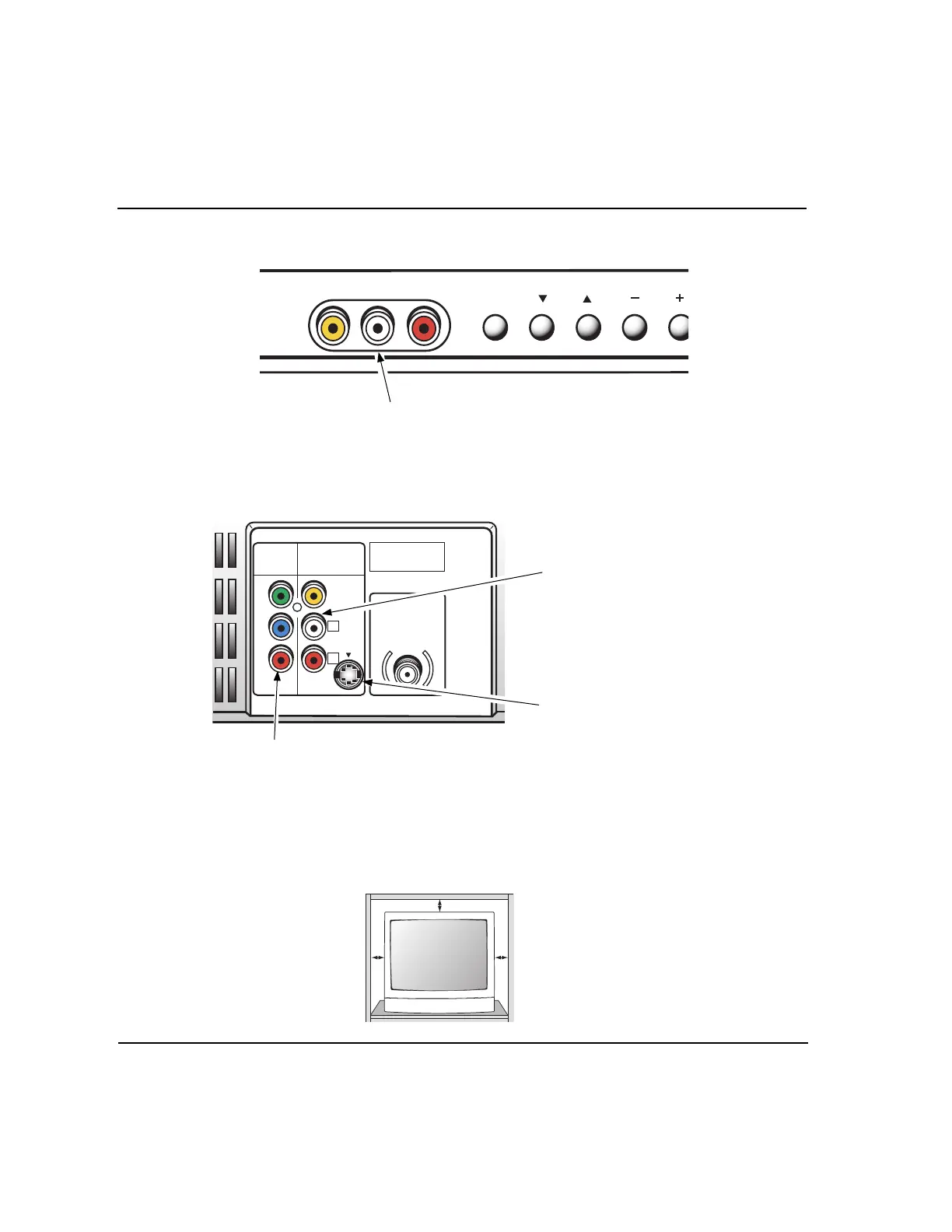

Front and Rear Panel
Audio/Video Input Jacks (AV1)
Connect video equipment here (see page 6).
Front
Front/Rear Control 5
VIDEO IN L- AUDIO -R
MENU CH VOL
Audio/Video Input Jacks (AV2)
Connect video equipment here (see page 7).
Notes: S-Video connection will override an
AV2 video connection.
S-Video Input Terminal
To enhance video detail use the AV1
S-Video jack instead of the AV1 Video jack,
if available on your external equipment. (An
S-Video connection will override connection
to the AV1 video input jack. See page 7.)
480i Component Video Input Jacks
(Component 2—Y-Pb-Pr)
Connect digital video equipment here (see page 6).
Notes: Audio/Video Input (AV2) and Component inputs
share the same audio (R/L) input jacks.
Rear
AUDIO VIDEO
INPUT 2
R
L
UHF/VHF/CATV
75Ω
PR
PB
Y
VIDEO
(MONO)
S-VIDEO
COMPONENT
2
